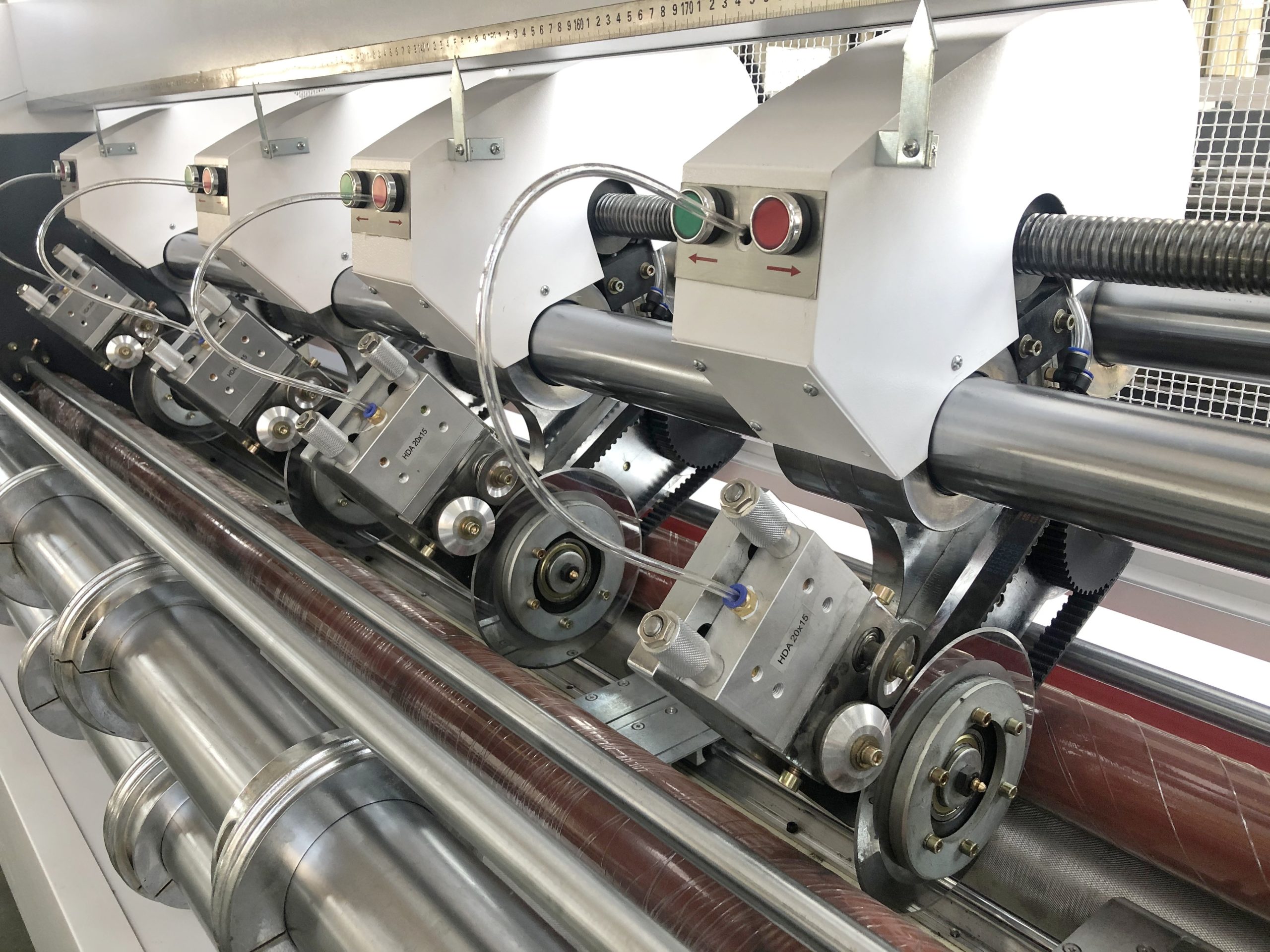

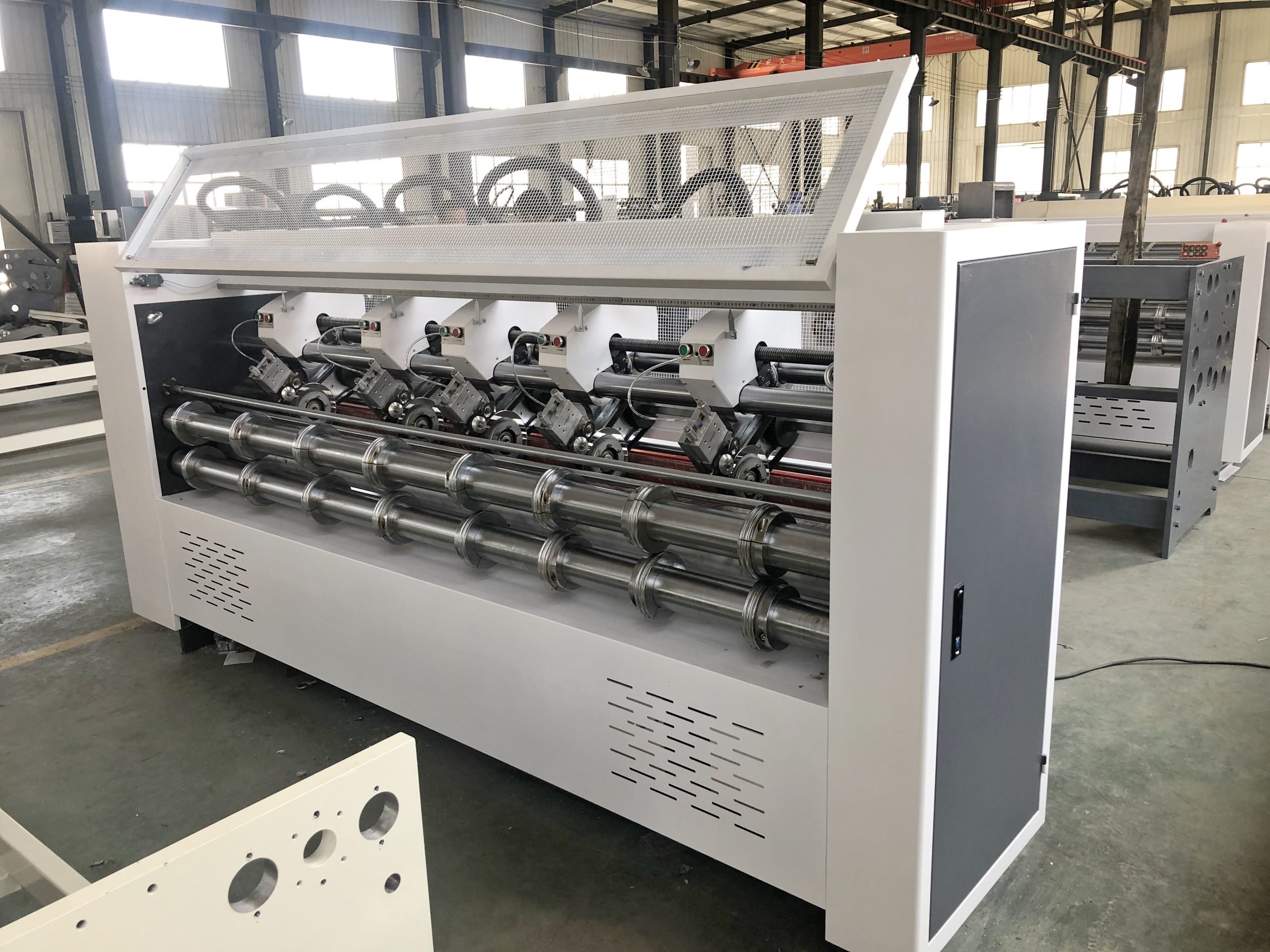

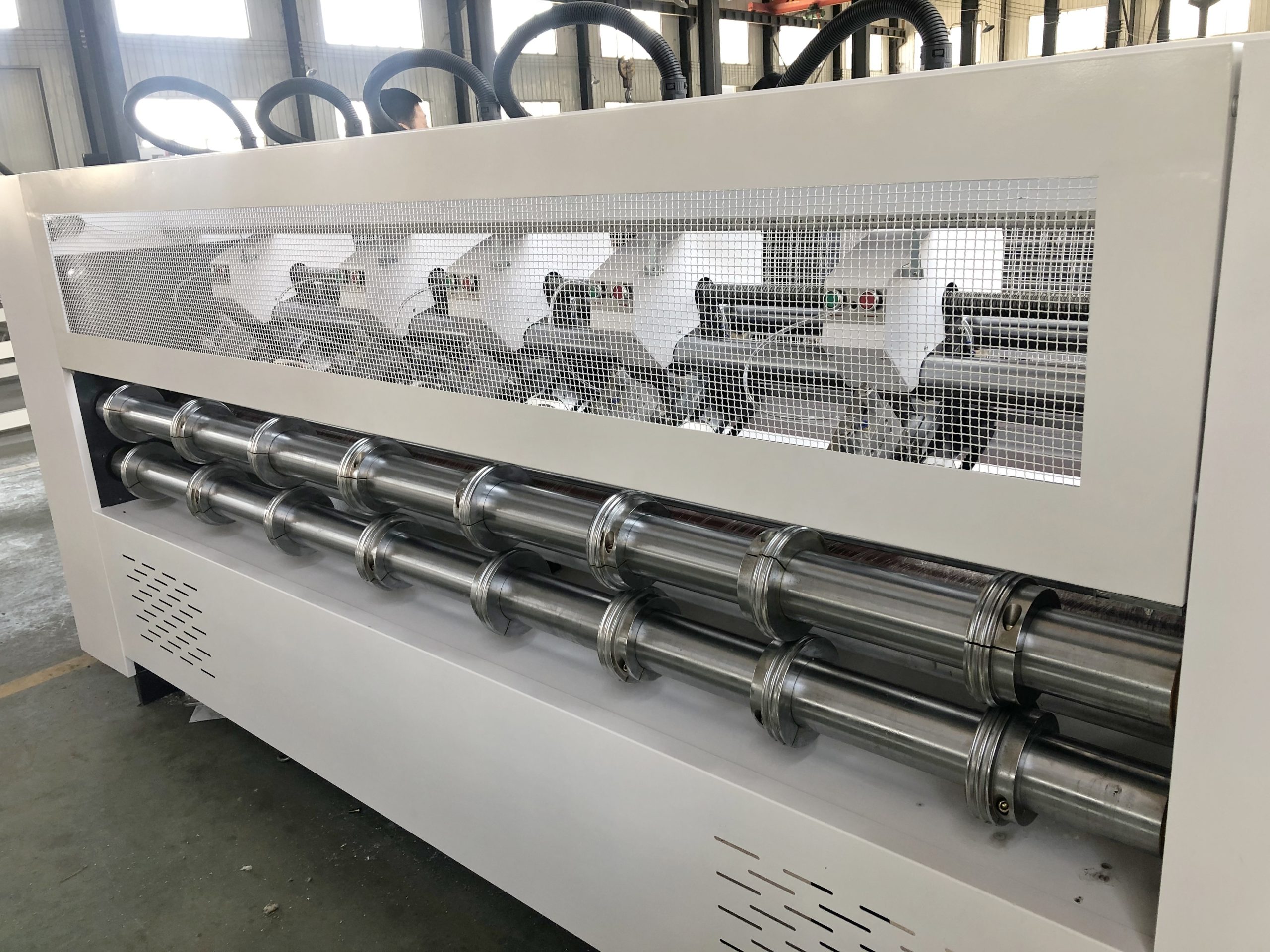

Thin Blade Slitter Scorer
- Brand
- Products and Solutions
- Corrugated Cardboard Production Line
- Flexo Printer Slotter Die Cutter
- Folder Gluer/ Stitcher/ Strapping Machine
- Flute Laminator/ Flaten Creasing And Cutting Machine
- Auto Hardboard Production Line
- Common Accessories Parts
- Innovation and Service
- Customer Cases
- Blog
- Contact us
Key Features :
- Durable Cutting Blades
High-quality chrome-molybdenum alloy steel or carbide blades provide long-lasting sharpness, wear resistance, and reliable cutting performance. - Low Waste & High Board Quality
Designed for standard UV corrugating processes, it delivers clean cutting with low material waste and shrinkage while maintaining flat, high-strength board. - Precise Slitting & Creasing
Precision machining, profile grinding, and computer-controlled positioning ensure accurate slitting and creasing within required standards. - Clean Cuts & Consistent Creasing
Thin-blade cutting produces smooth, burr-free edges, while uniform creasing facilitates accurate carton folding and forming. - Fast CNC Adjustment
CNC-controlled knife and scoring-wheel positioning enables quick size changes, reduces setup time, and minimizes production downtime.
| NO. | Name | Technical parameter (LUM-A) | Technical parameter (LUM-B) |
|---|---|---|---|
| 1 | Working width | 1400-2200mm | 1400-2200mm |
| 2 | Design speed | 150m/min | 150m/min, 200m/min |
| 3 | Minimum paper cutting width | 180mm | 180mm |
| 4 | Scorer positioning | ±1mm | ±0.5mm |
| 5 | Main roll diameter | Φ215mm | Φ240mm |
| 6 | Number of Scorers | 4 blades 6 scorers/ 5 blades 8 scorers | 5 blades 8 scorers |
| 7 | Order Change Time | 5min | Complete order switching within 3-8 seconds |
