- Auto Hardboard Production Line

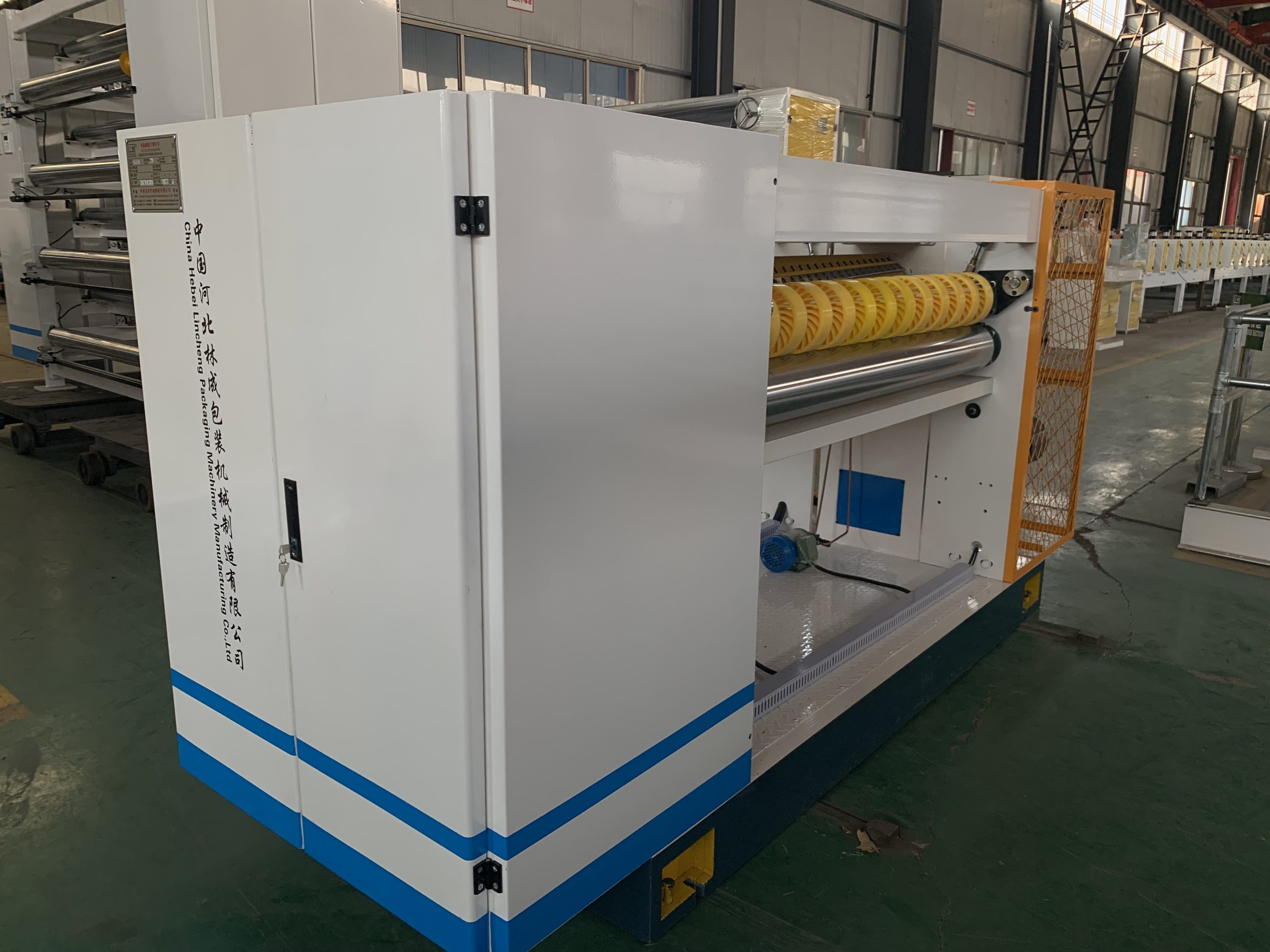

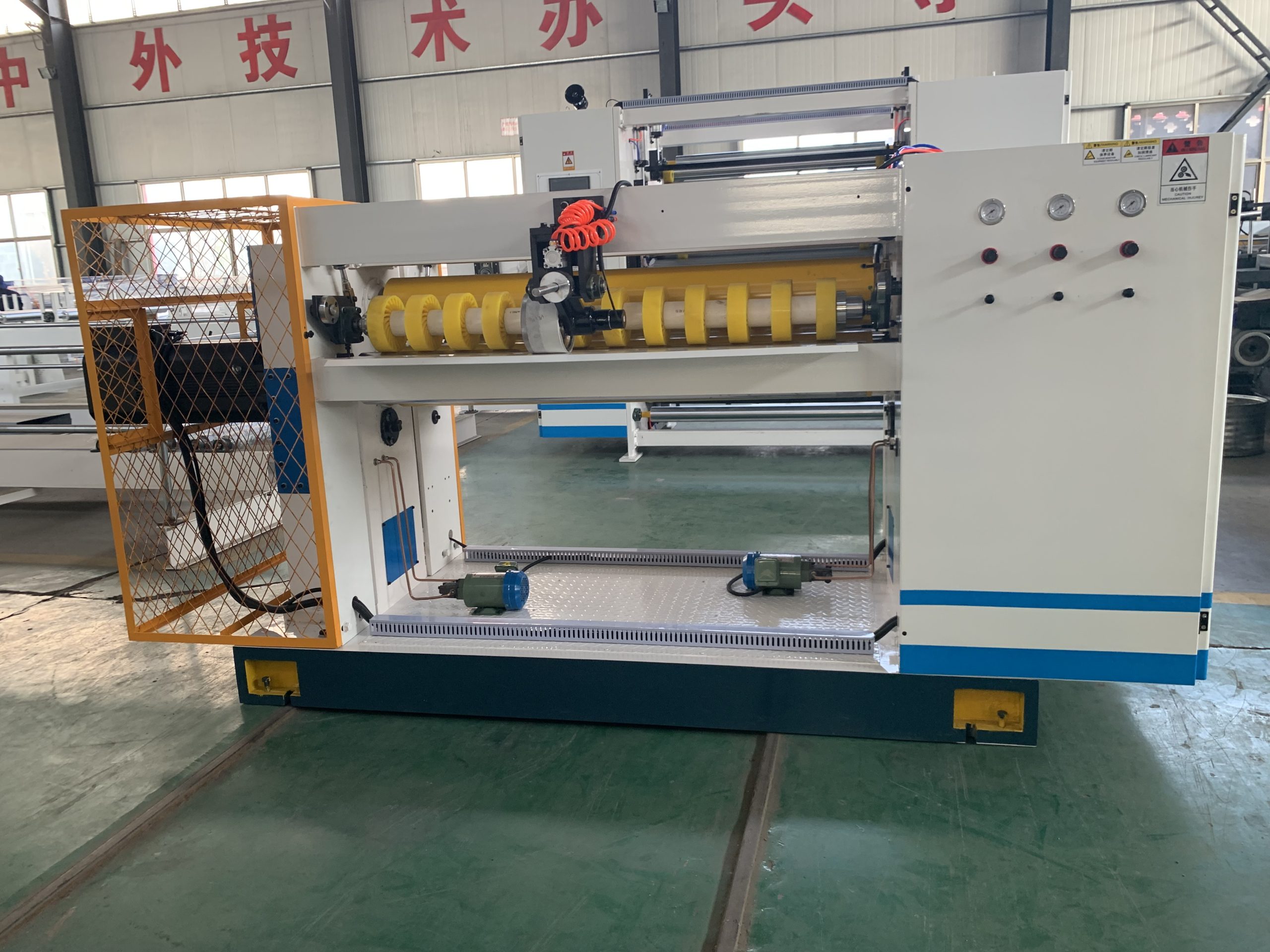

Nc Cut off Machine
Key Features:
1. High-Precision Cutting: Servo-controlled cutting with accuracy up to ±0.1–1 mm and quick touchscreen setup.
2. High-Speed Operation: Cutting speeds up to 200–300 m/min, with helical blades for smooth and stable cutting.

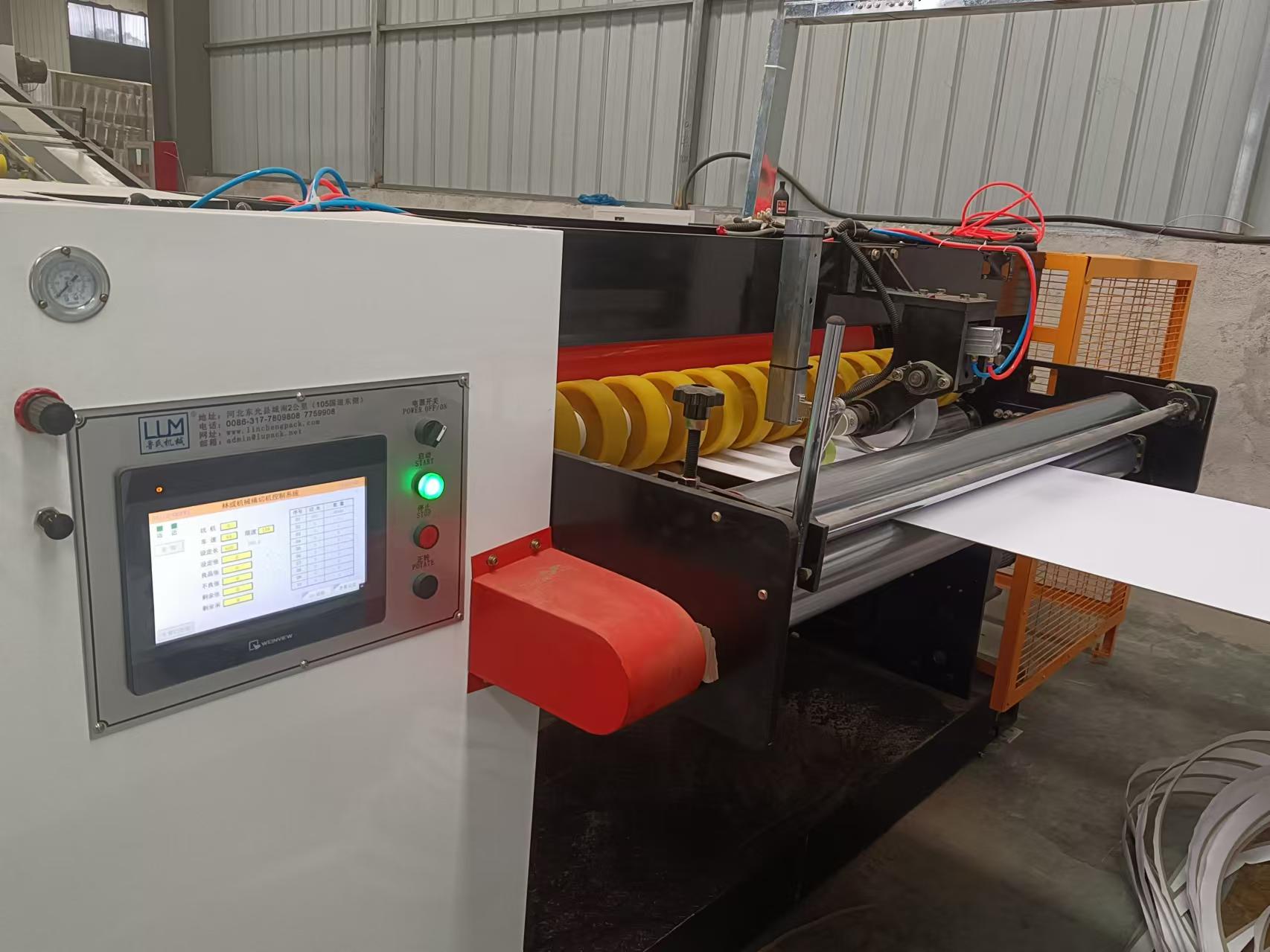

3. Intelligent Control: PLC or industrial computer control with automatic counting, alarms and stacking integration.
4. Stable Drive System: Precision-ground gears and dynamically balanced cutter shafts ensure smooth, low-noise operation.
5. Advanced Supporting Functions: Automatic tension control, web guiding and shaftless unwinding; optional color mark tracking and edge trimming.
| NO. | Name | Technical parameter (LUM-A) | Technical parameter (LUM-B) |
|---|---|---|---|
| 1 | Working width | 1400-2200mm | 1400-2200mm |
| 2 | Design speed | 120m/min | 150m/min, 200m/min |
| 3 | Min cutting length | 500mm | 500mm |
| 4 | Max cutting length | 9999mm | 9999mm |
| 5 | Cutting accuracy | ±1mm | ± 1mm(on same speed)/ ± 2mm(on variable speed) |

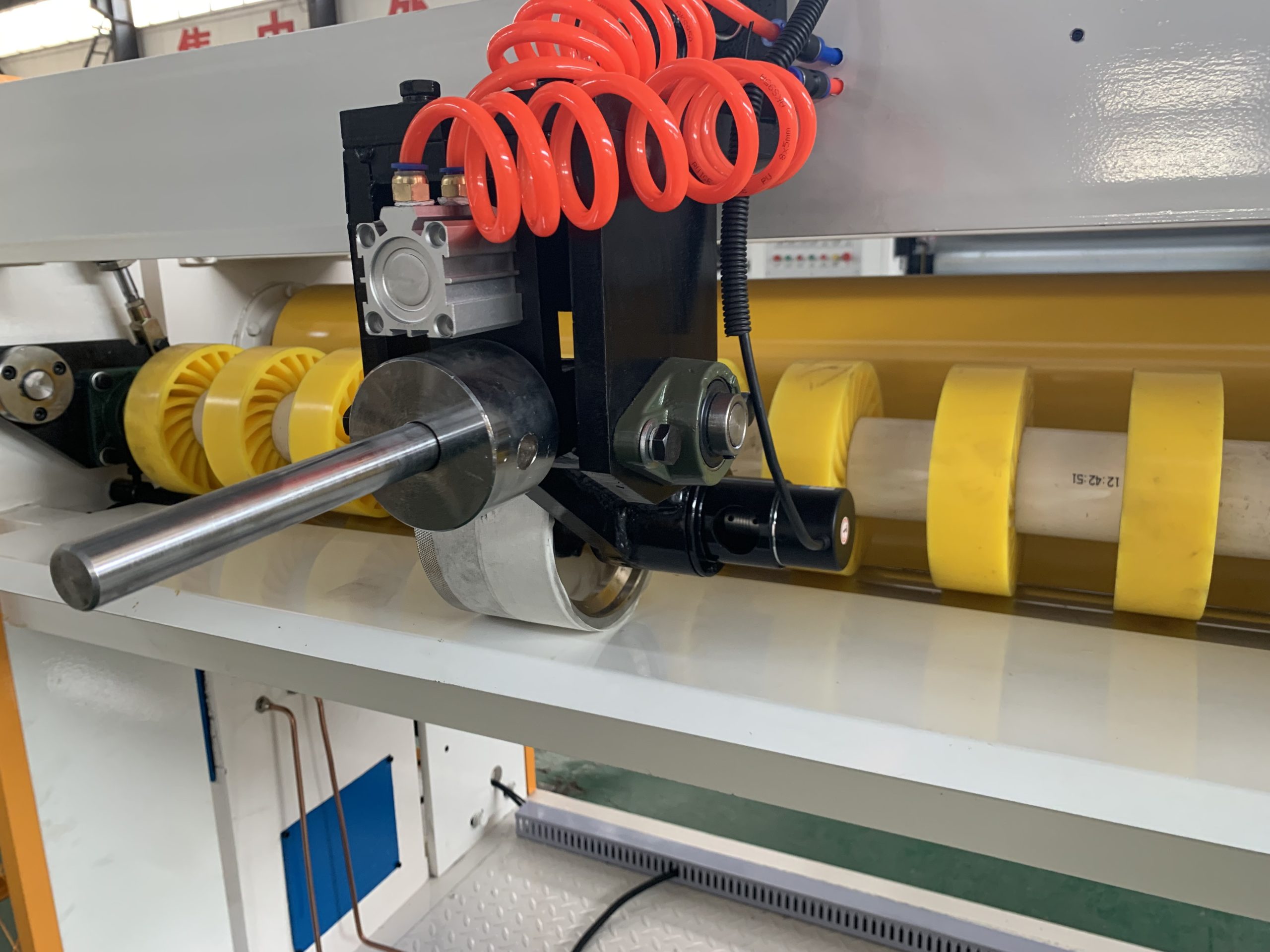

| 6 | Pressure adjustment | Front and rear feeding wheels adopt sun wheel pressing structure, stable conveying and even pressure | Front and rear feeding wheels adopt sun wheel pressing structure, stable conveying and even pressure |
