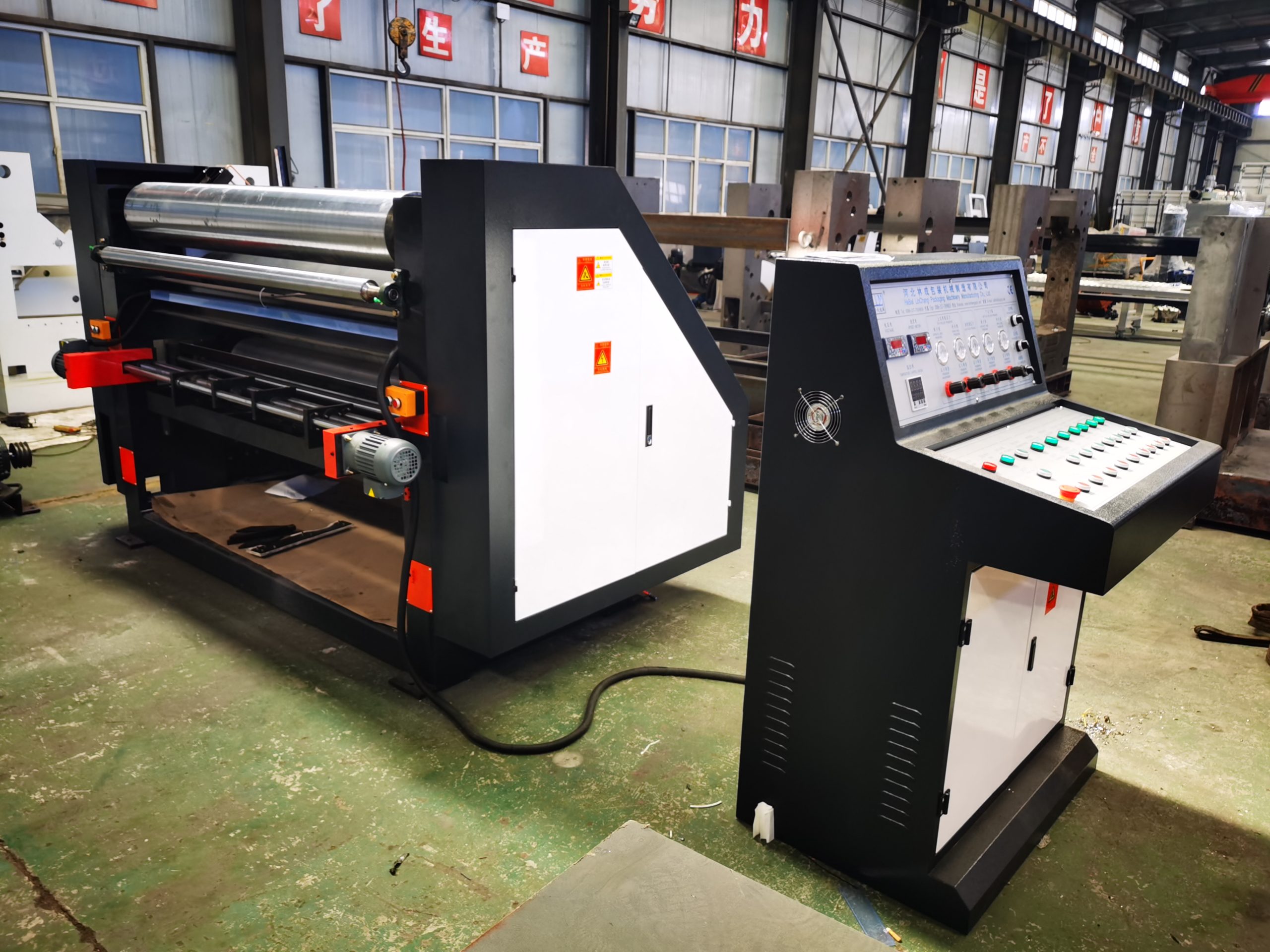

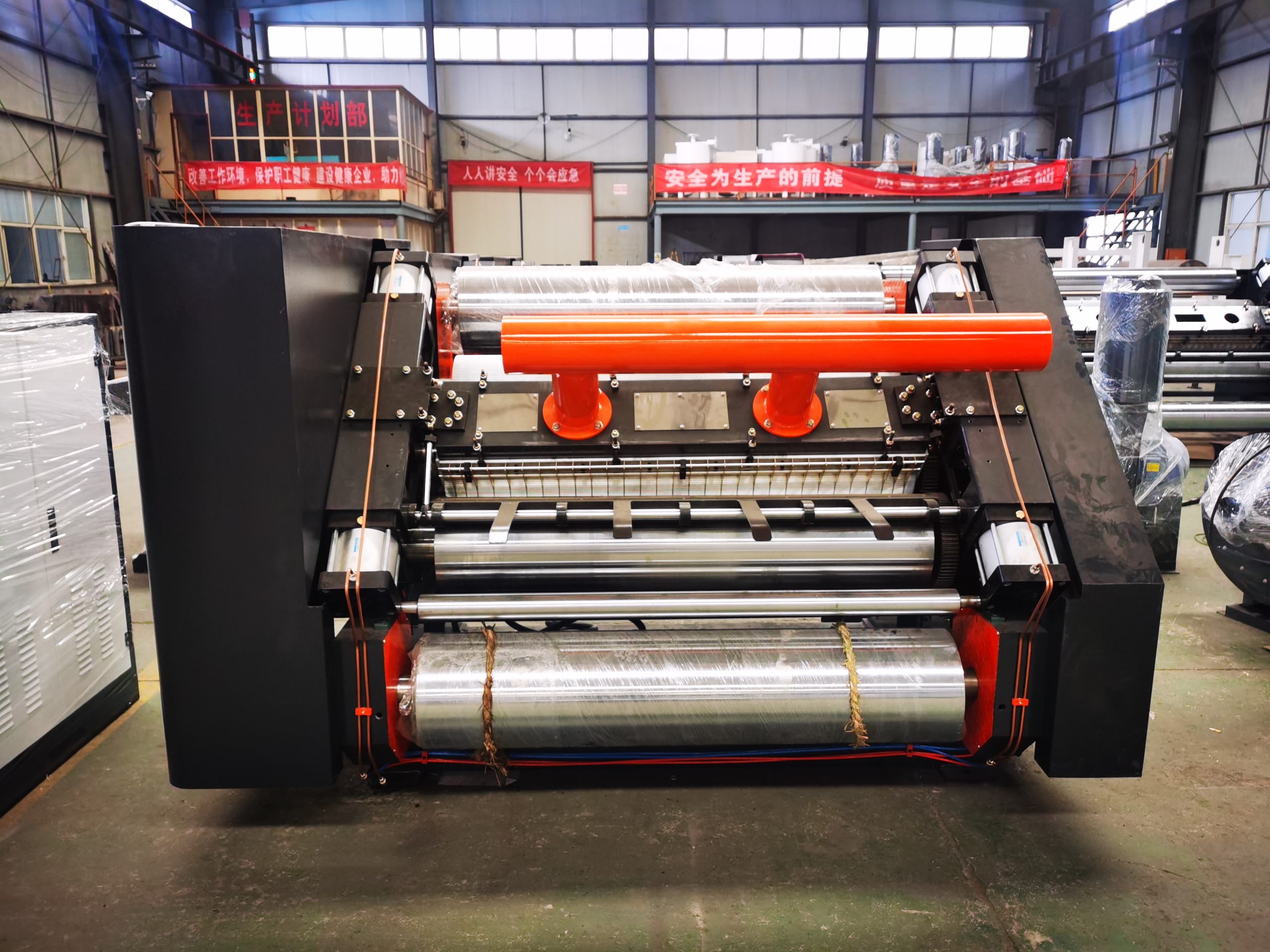

LUM-A Single Facer

Key Features:

1. Corrugating rolls are made of high-quality chromium-molybdenum alloy steel with heat treatment, offering excellent wear resistance, stable performance, and low maintenance costs.

2. Standard UV fluting profile ensures low paper shrinkage, flat formed board, and consistent mechanical strength.

3. Rolls are precision-ground, with manual mechanical gap adjustment, ensuring corrugation dimensional accuracy compliant with national standards.
Get a Quate
NO. Name Specifications
1 Working width 1200-2000mm
2 Design speed 120m/min
3 Thickness wallboard Casting HT200/ thickness 130mm
4 Corrugated roller diameter Φ280/270mm/ 48CrMoalloy steel
5 Pressure roller diameter Φ280/270mm / 45# steel
6 Preheating roller diameter Φ320mm/ 45# steel
7 Glue roller diameter Φ215mm/ 45# steel

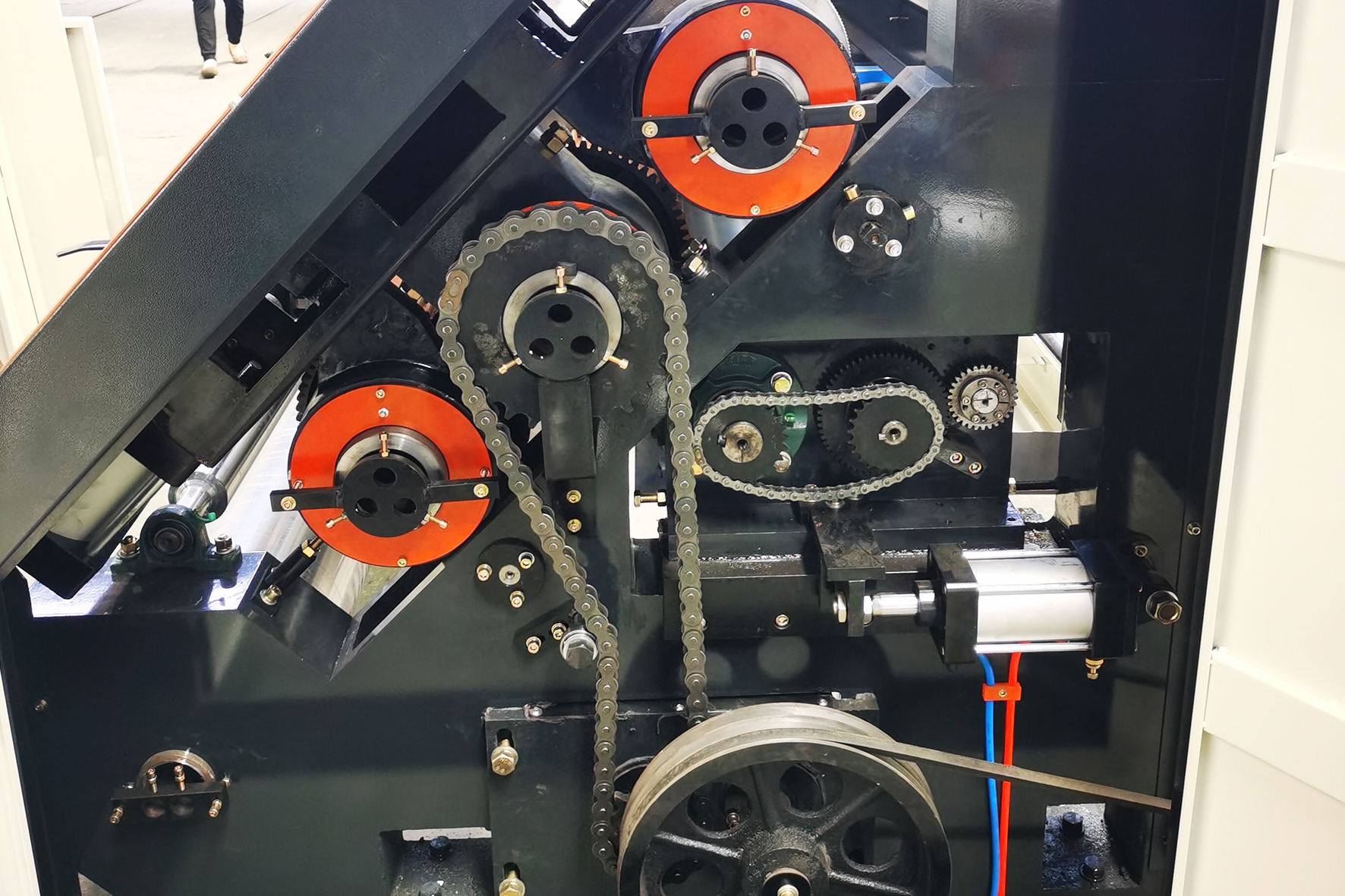

8 Gimbal drive,separation structure,independent drive box,enclosed gear oil immersion type lubrication ,can prolong the life of the gearing.

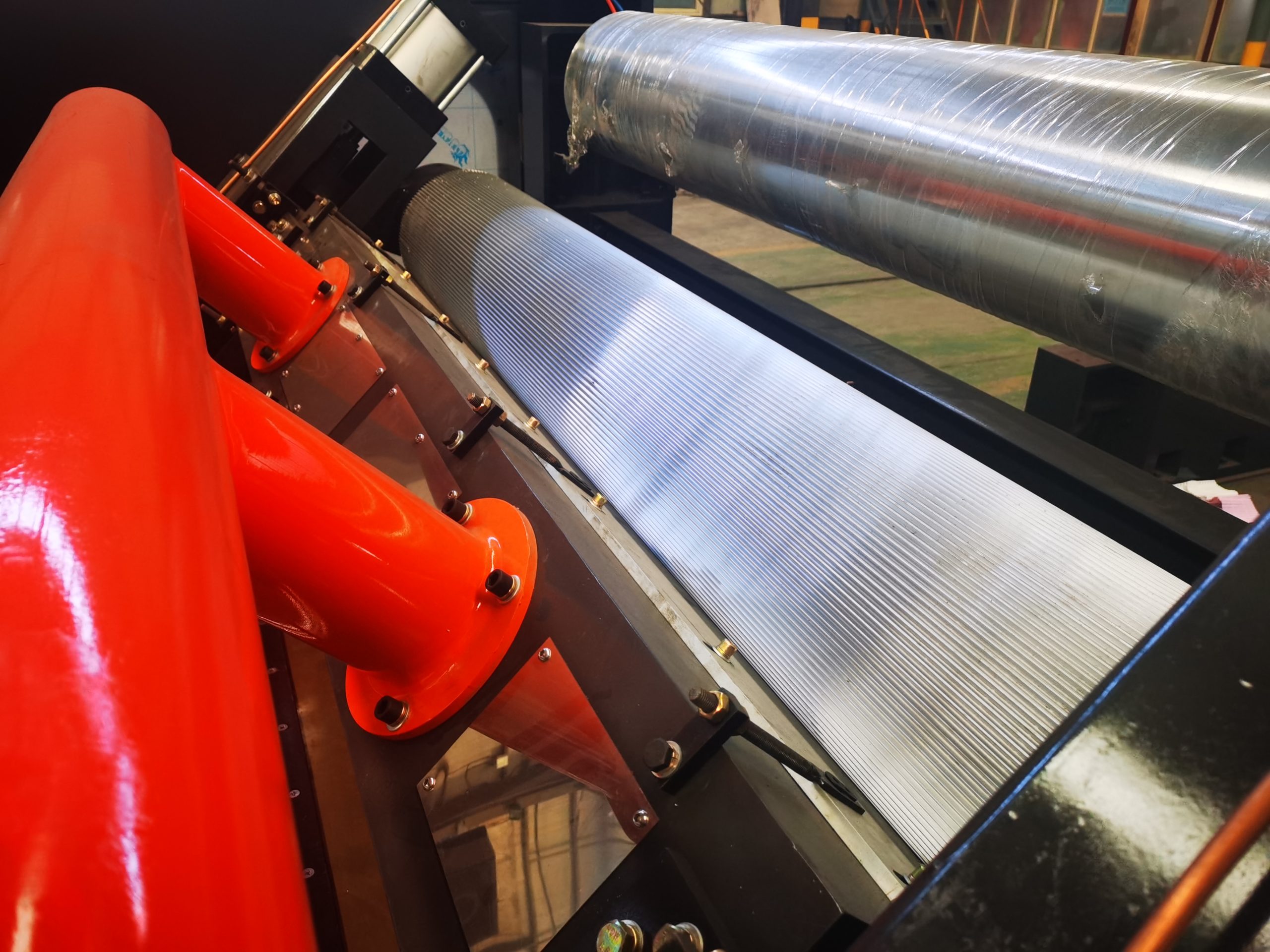

9 Corrugated roller adopt 48CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated dia. 280/270mm,surface hardness HRC60 degrees; Adopt pneumatic cylinders control up and down of corrugated roller.
10 Pressure roller diameter 280/270mm,modulation processing with 45# carbon steel , machining and grinding off the surface chrome plated cylinder control up and down.
11  Pneumatic control supply glue,glue roller diameter 215mm, engraved with the pit-style textured back surface polished, hard chrome plated,doctor roller surface grinding and hard chrome plating.
12 Electronic components and accessories:Adopt Schneider, Delixi brand. Pneumatic components.rotary joints,metal hose:YADEKE,Tengzhou brand.
