• Flute Laminator/ Flaten Creasing And Cutting Machine

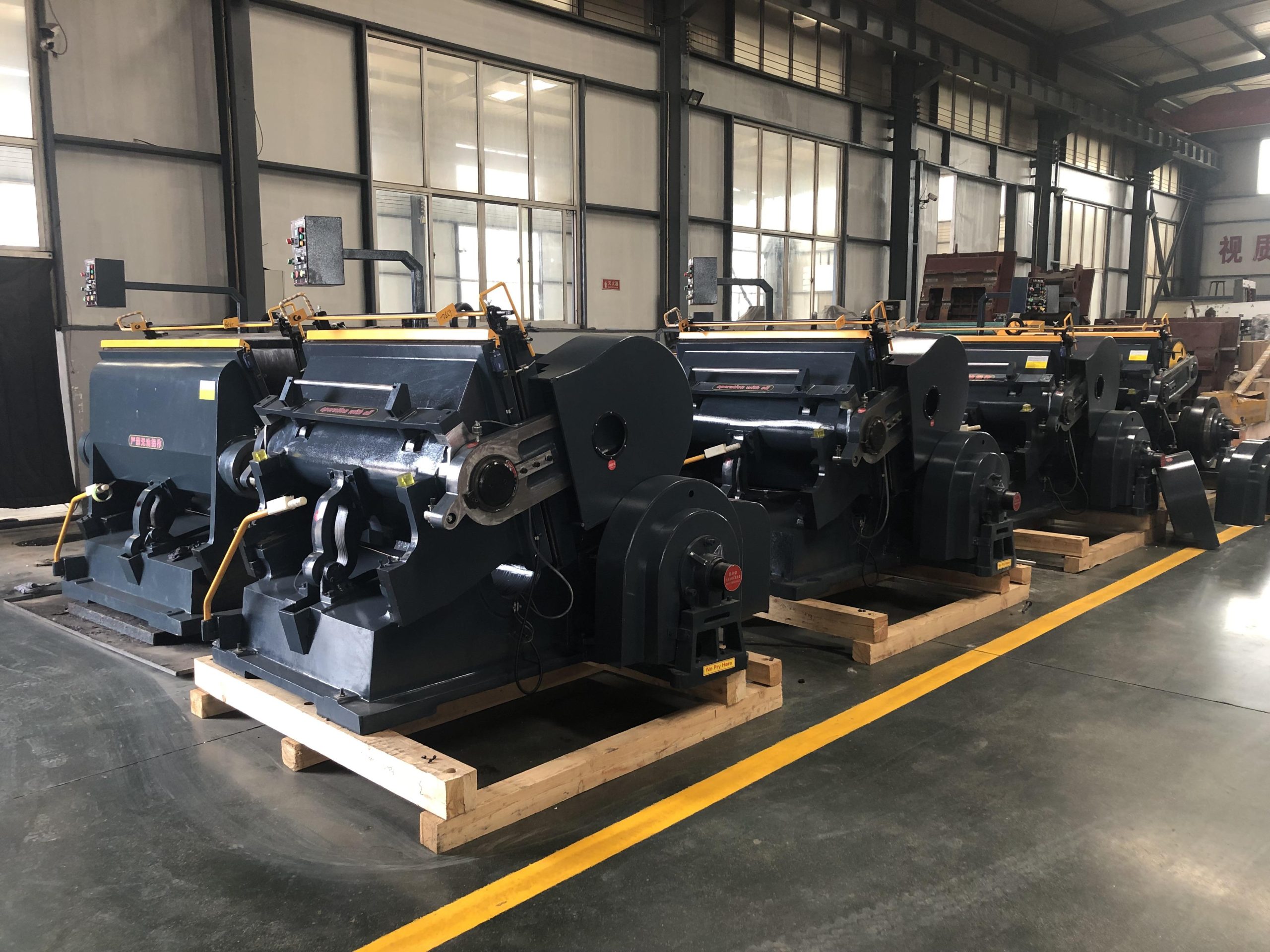

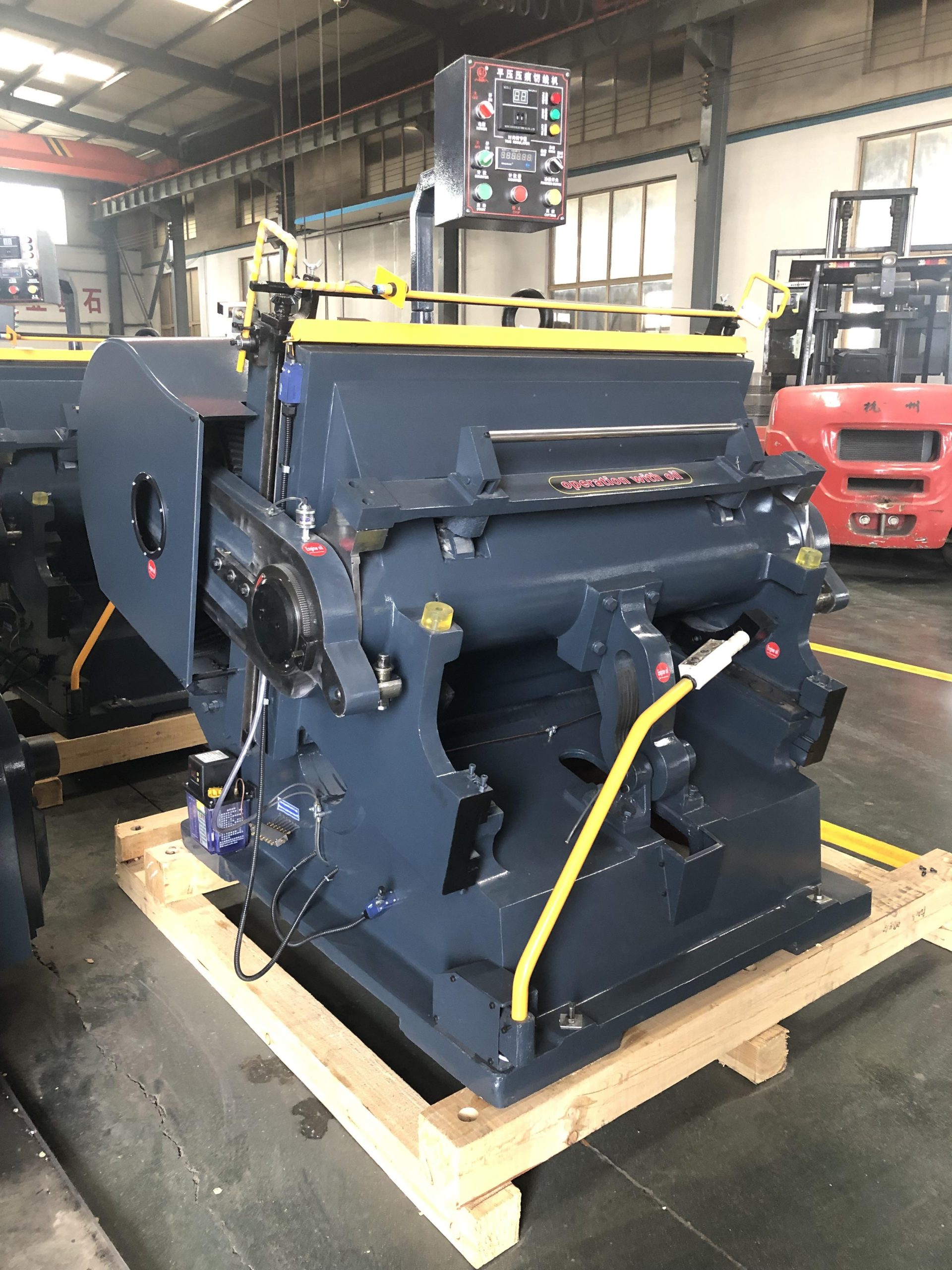

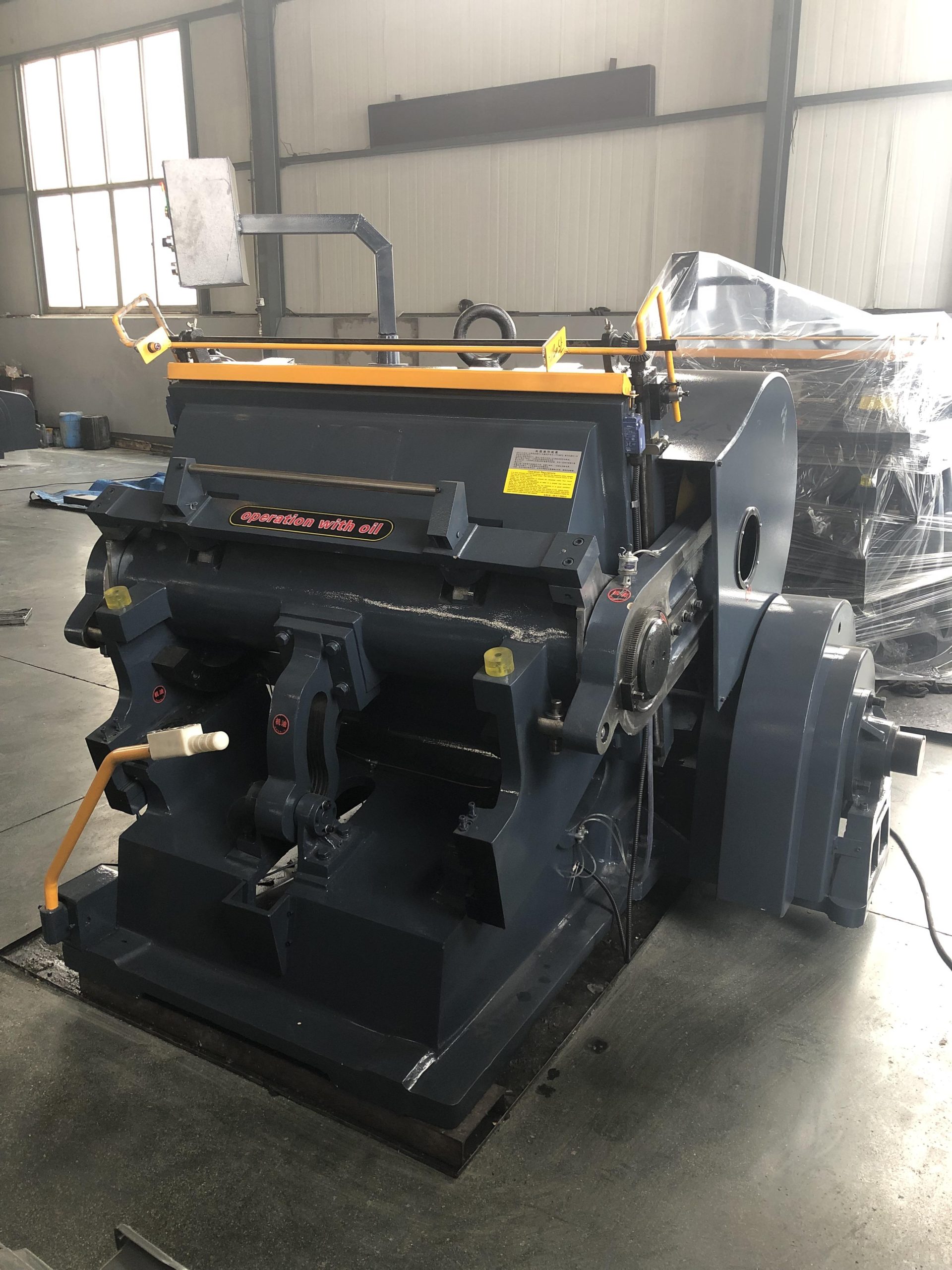

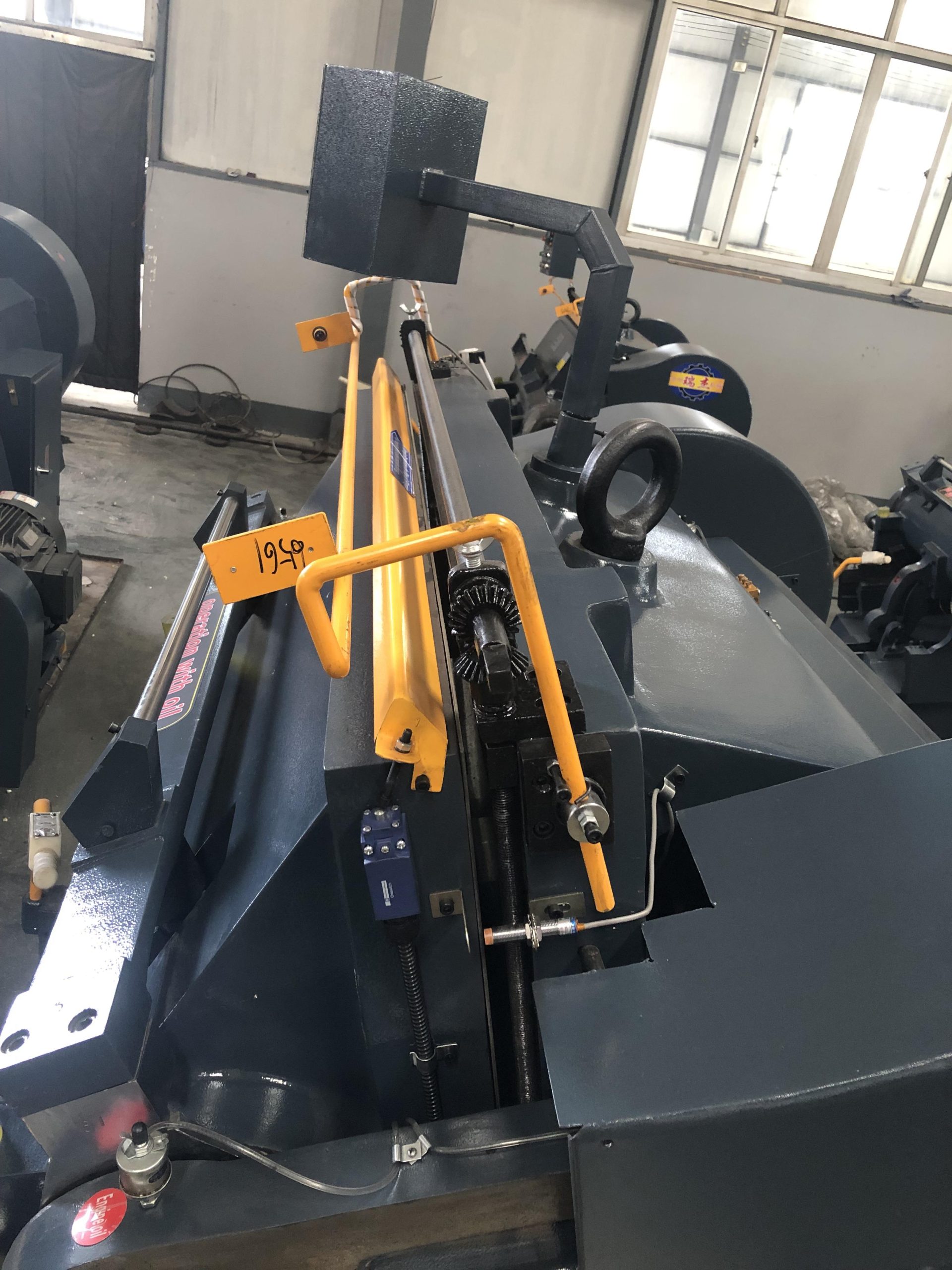

ML-Series Flat Creaser and Cutter

Main features:

1. This machine has four insurance four function.

2. Insurance: longmen insurance triangle insurance handle insurance electric automatic insurance, and thus more safe and reliable.

3. Function: single cut delay continuous count; The brake clutch is electric chuck braking clutch, has the brake sensitive insurance coefficient big safety performance is strong, etc.

4. The template plate frame adjustable board box convenient upper discharge board.

5. And with standard: manual injection fuel supply or the computer automatically on fuel supply configuration. We can manufacture variable frequency speed regulation.

6. The motor is mengniu brand.
Get a Quate
NO. Name ML-750 ML-930 ML-1100 ML-1200 ML-1300 ML-1400 ML-1500 ML-1500 ML-1600 ML-1800 ML-2000 ML-2200 ML-2500
1 Max cutting Size 750×520mm 930×670mm 1100×800mm 1200×830mm 1300×920mm 1400×1000mm 1500×1050mm 1500×1150mm 1600×1250mm 1800×1300mm 2000×1400mm 2200×1450mm 2500×1600mm
2 Working speed 28±2(strokes/min) 23±2(strokes/min) 20±2(strokes/min) 20±2(strokes/min) 18±2(strokes/min) 18±2(strokes/min) 18±2(strokes/min) 18±2(strokes/min) 16±2(strokes/min) 16±2(strokes/min) 16±2(strokes/min) 16±2(strokes/min) 13±2(strokes/min)
3 Creasing length less than 15m less than 25m less than 32m less than 35m less than 40m less than 45m less than 45m less than 45m less than 50m less than 62m less than 80m less than 90m less than 95m
4 Motor Power 2.2kw 4.0kw 5.5kw 5.5kw 5.5/ 7.5kw 5.5/ 7.5kw 5.5/ 7.5kw 5.5/ 7.5kw 15kw 15kw 15kw 18kw 22kw
5 Weight 2000kg 3000kg 4000kg 4300kg 5500kg 6000kg 6500kg 6800kg 11000kg 12000kg 13500kg 16500kg 20000kg
6 Overall Size （L×W×H） 1260×1350×1280mm 1800×1600×1600mm 1900×1800×1700mm 1900×2000×1700mm 2000×2400×1800mm 2000×2450×1900mm 2000×2500×1930mm 2000×2500×1980mm 2170×2560×2130mm 2240×2800×2230mm 2280×2900×2230mm 2280×3000×2250mm 2400×3580×2550mm
