Double Facer Machine

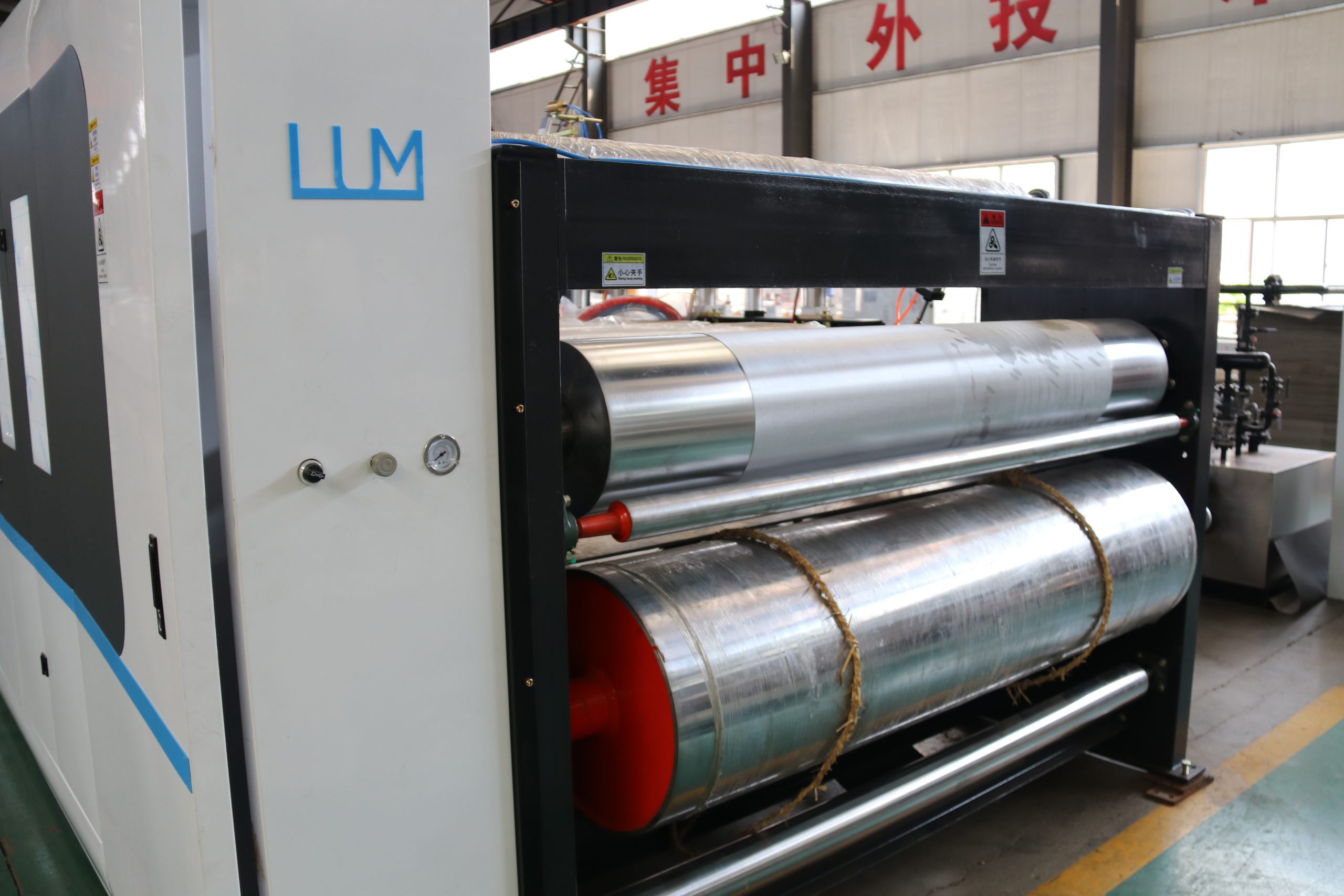

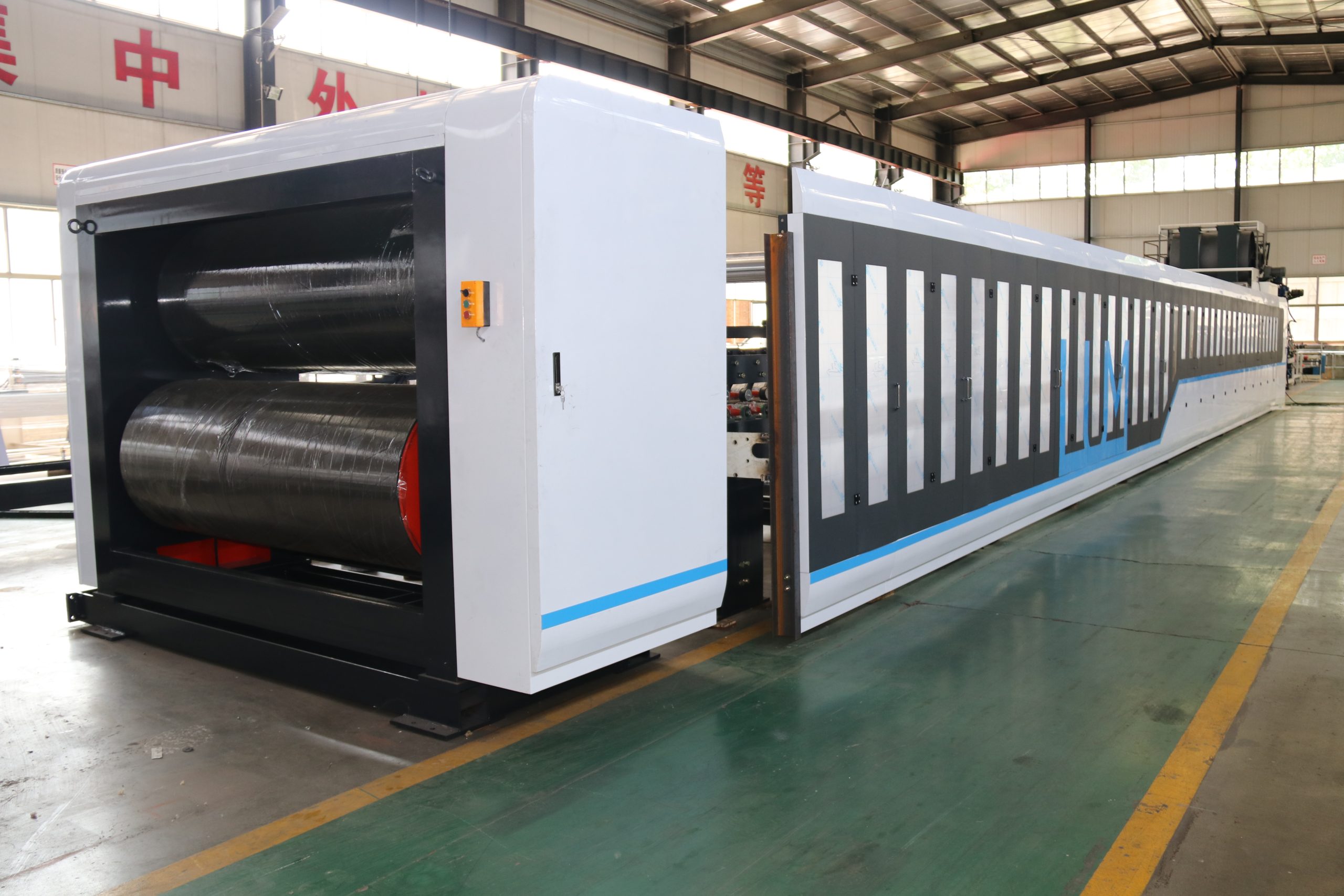

Double Facer Machine – Core mainframe of the corrugated board production line. Single-faced corrugated board enters after glue application, and is bonded, dried, and cooled via heated platens, producing flat, high-strength finished board. Supports continuous production of 3-, 5-, and 7-layer boards, compatible with LUM-A/B/C entire line, effective width 1400–2800 mm, operating speed 60–250 m/min.

1. Core rollers in high-quality Cr-Mo alloy steel or cemented carbide – heat-resistant, wear-resistant, suited for long-term continuous operation.

2. International UV standard fluting profiles – low paper shrinkage, flat finished board with high strength.

3.Key components machined via precision grinding and computer-positioning – dimensional accuracy meets national standards.

4. Independently controlled zone heating on platens – uniform heat distribution, firm bonding, minimal blistering/delamination.

5. Stable conveyor belt with adjustable pressure – ensures flat, distortion-free board across various paper weights.
Get a Quate
No Name Technical parameter
A Model B Model C Model
1 Effective working width 1400--2800mm 1400--2800mm 1400--2800mm
2 Operating direction According to customer’s require According to customer’s require According to customer’s require
3 Hot plate 600mm wide,hot plates can be 9,11,13,15,17,19,21,23 600mm wide,hot plates can be 9,11,13,15,17,19,21,23 600mm wide,hot plates can be 9,11,13,15,17,19,21,23
4 Main drive roller diameter 500 mm 740 mm 650mm
5 Main drive motor power 30-55kw 55kw 75.0kw
6 Drive method Electric or hydraulic lift( is optional) Hydraulic lift Pneumatic lift
7 Whole  rack  adopt  high-strength 30# or 40# channel steel,firm structure  and work steadily,middle speed work is better.
8 Hot plate produced by professional manufacturer,heating plate made by high strength container plate,accords with national safety standards for pressure vessels.600mm wide steel hot plate,inside S -shaped guide airflow structure,improve the utilization of steam.

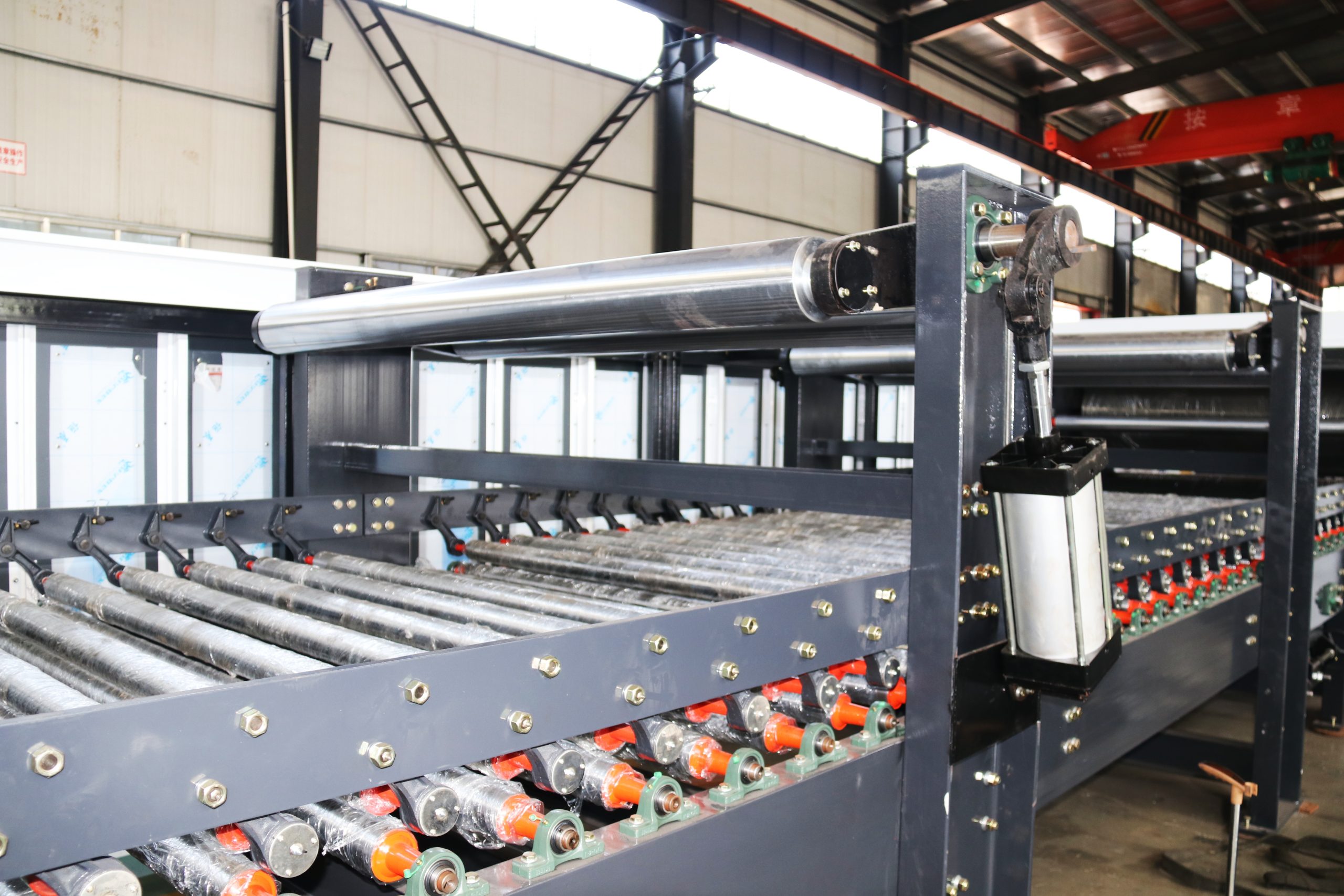

9 Heating section adopt intensive pressure roller structure or touch press plate structure,to enhance cardboard stick firmly and platen board quality.

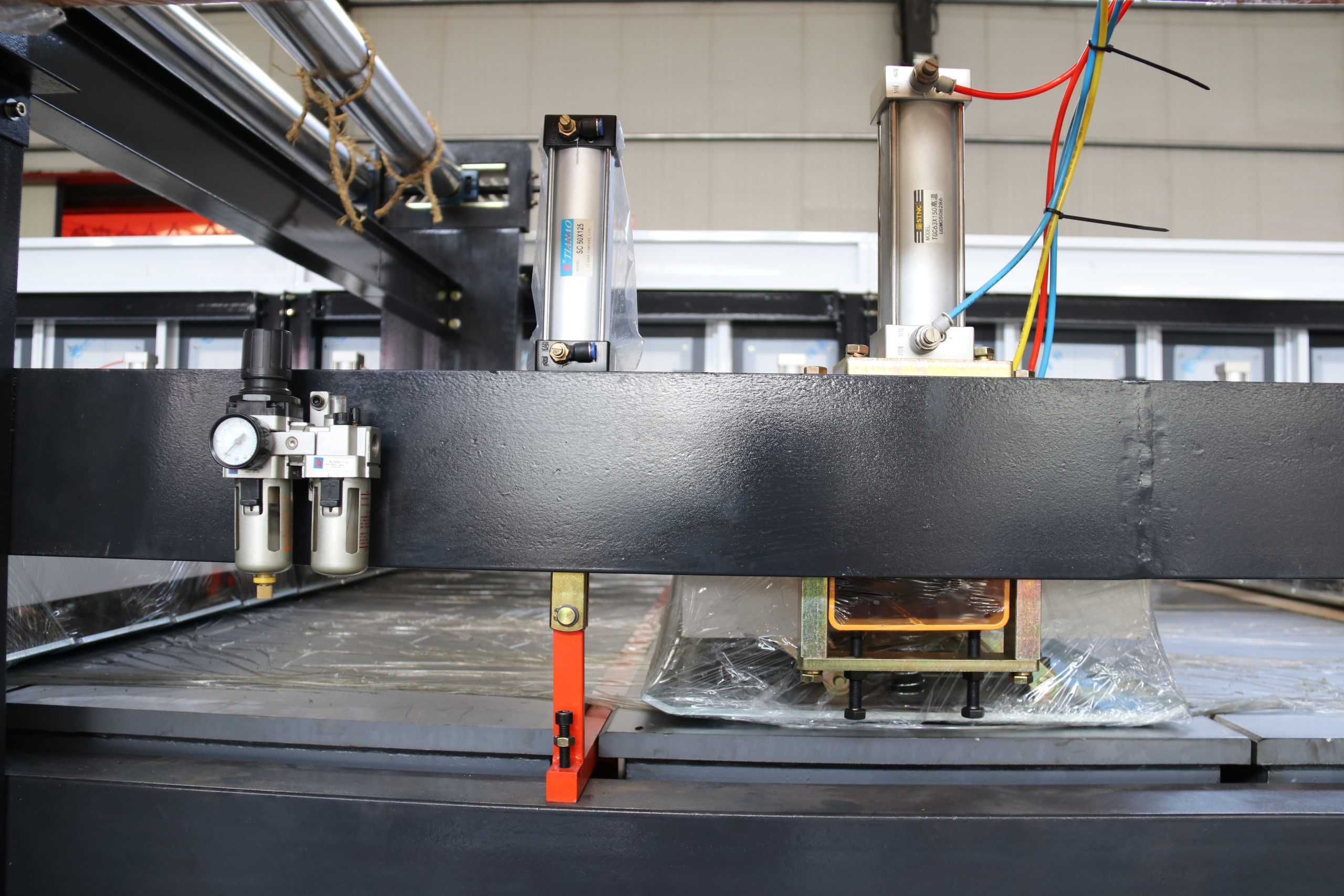

10 Heating section roller adopt electric or hydraulic to lift whole frame,safe and reliable.
11 Hot plate temperature control separately,adjustment is according to the line speed.(Or use temperature * Digital display for option.)
12 Separate gear box drive,low noise,using oil immersion sealed gear;(Electromagnetic speed motor or inverter motor drive is optional.)
