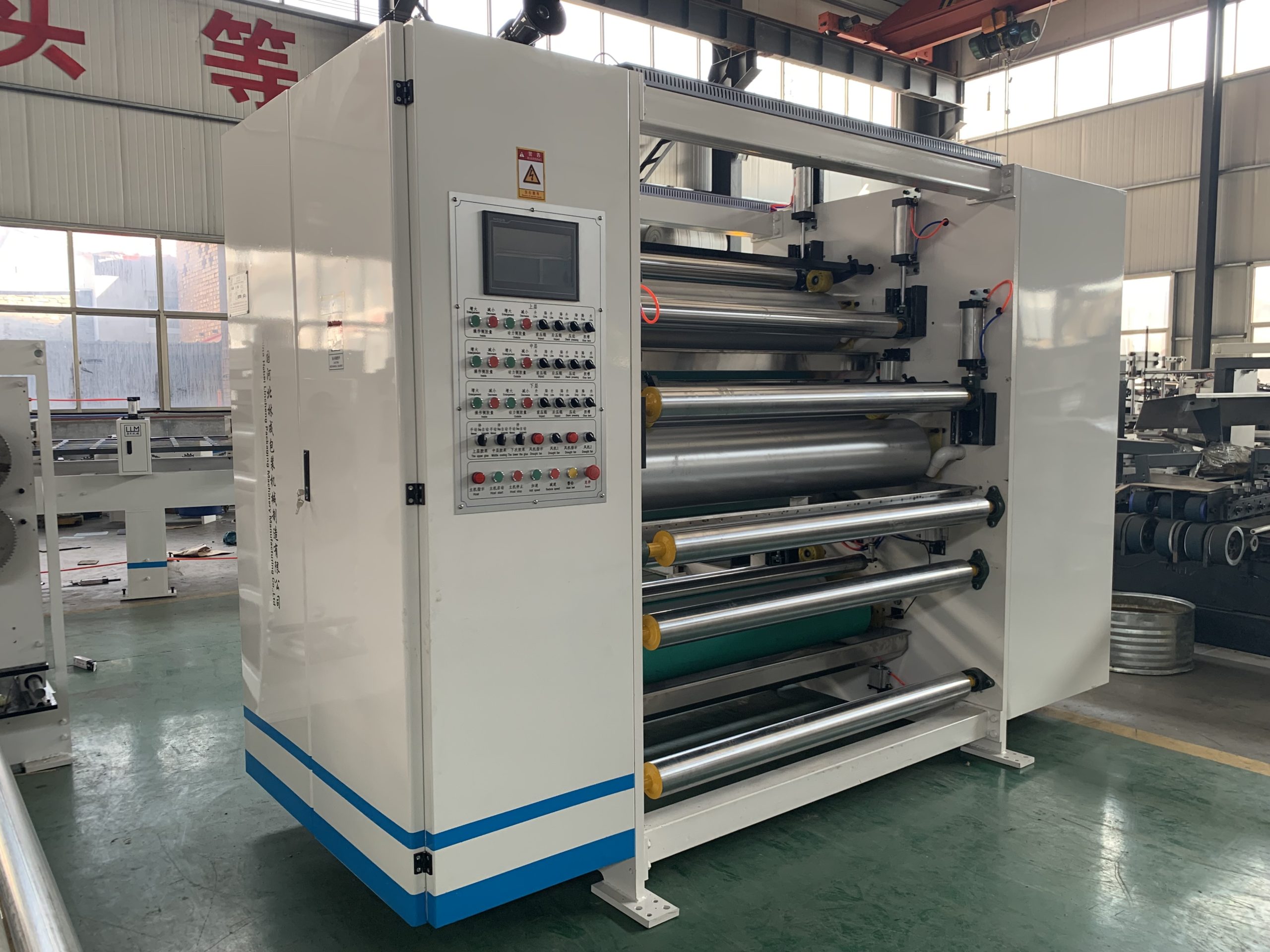

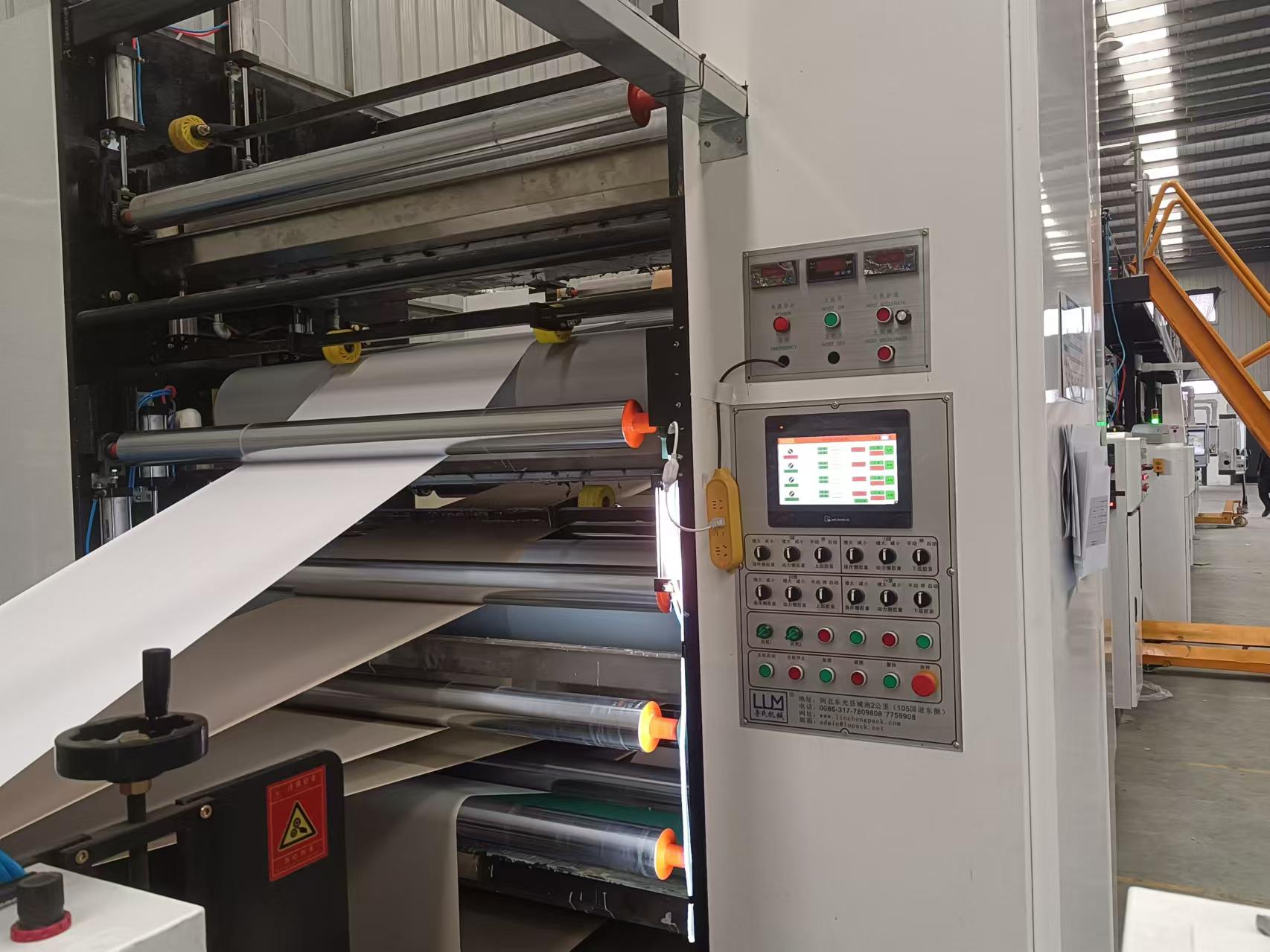

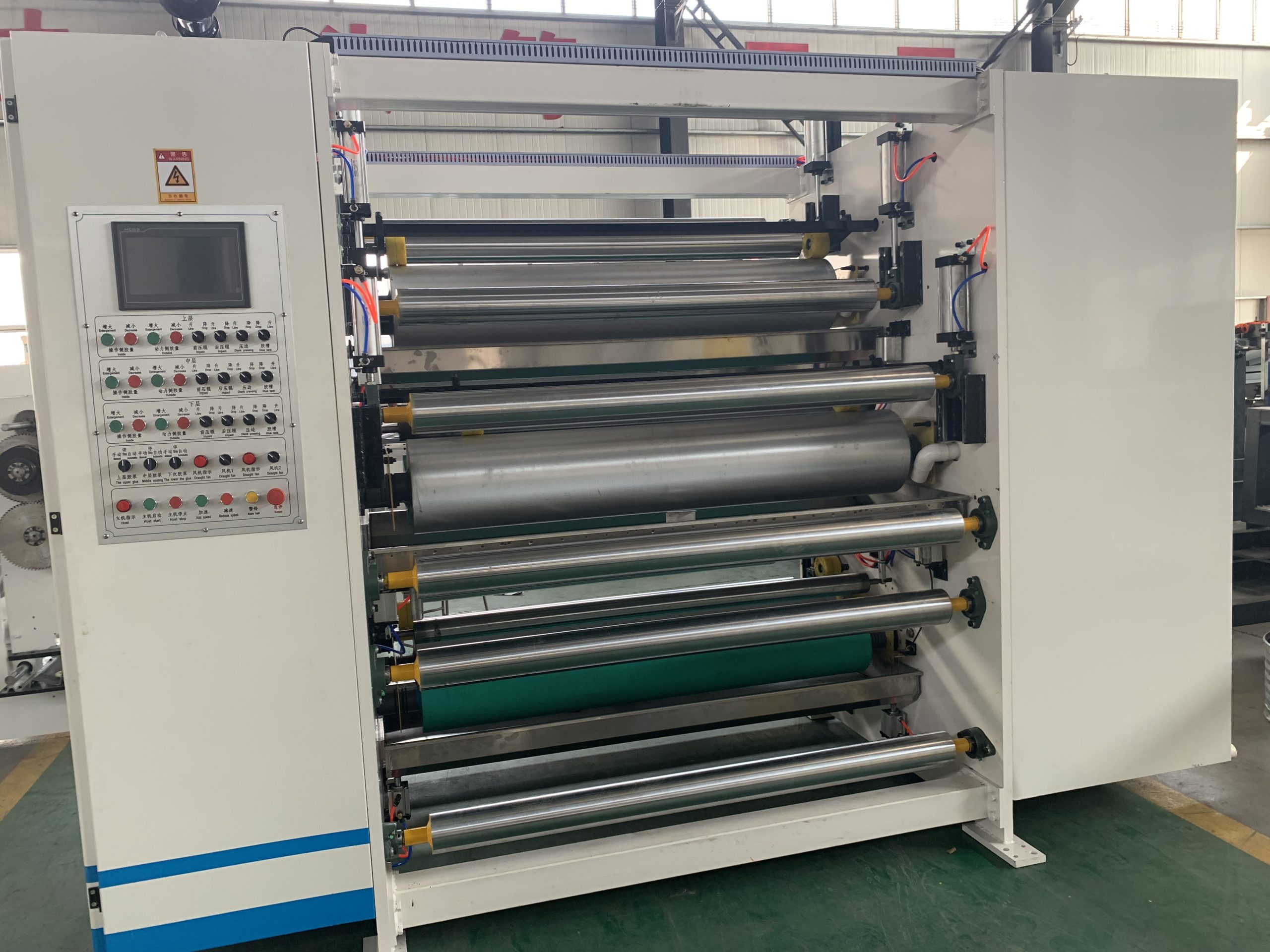

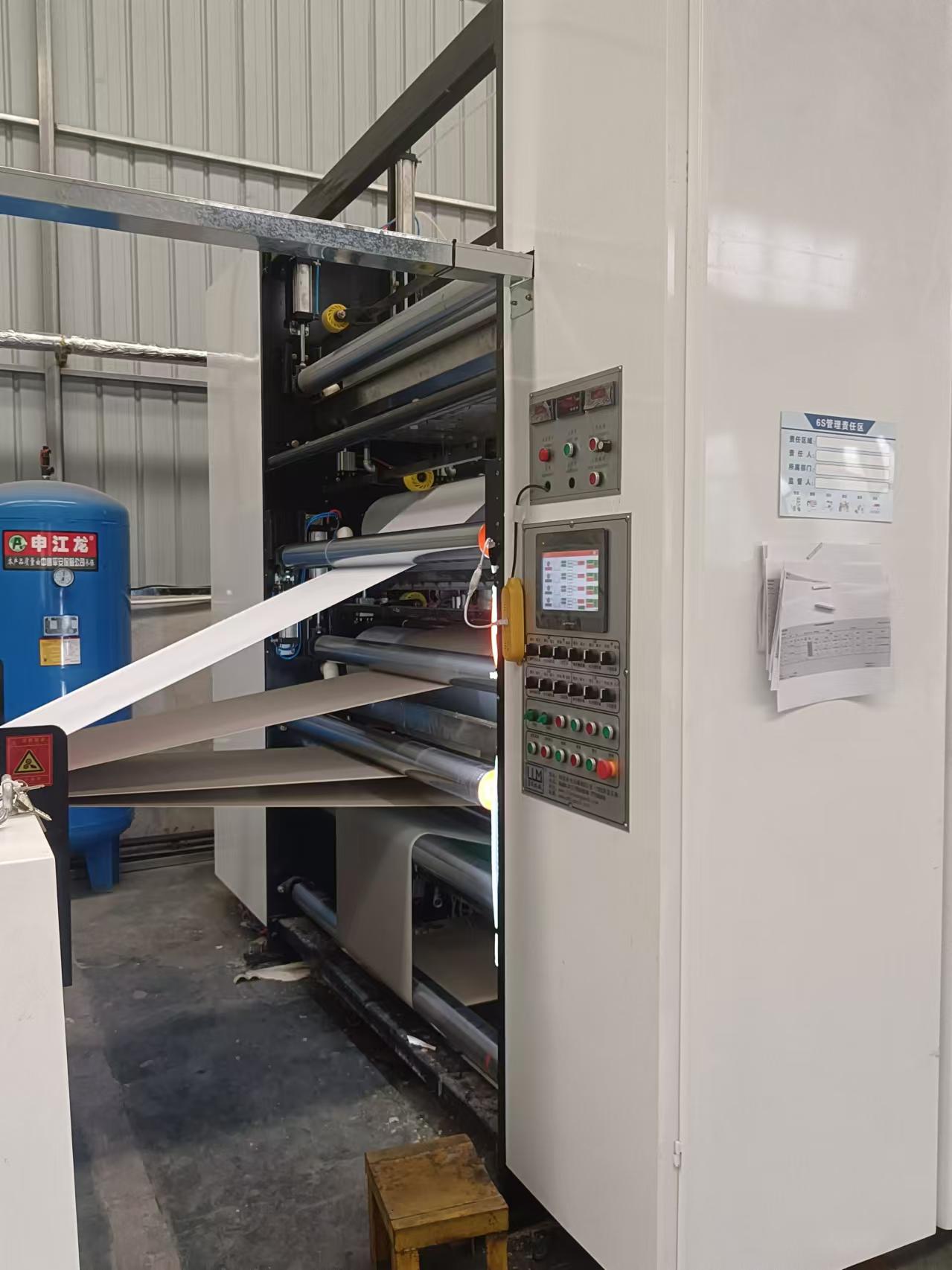

Paper Gluing Machine

Features:

1. Precise and Uniform Coating: Through the coordinated use of precision coating rollers (such as anilox rollers and chrome-plated rollers) and metering rollers, the adhesive application is precisely controlled within the range of 15–30 g/m², ensuring uniform coating without splatter.

2. High-Efficiency, Energy-Saving Design: The use of an anilox roller for adhesive application reduces adhesive consumption by approximately 40% compared to traditional smooth rollers, effectively lowering production costs.

3. Compatibility with Multiple Adhesive Types: Compatible with various adhesives, including white glue and hot melt adhesives. Some models are equipped with a heated adhesive reservoir system to prevent the adhesive from hardening or deteriorating.

4. Adjustable Roller Spacing and Clearance: The clearance between the coating roller and the metering roller (or pressure roller) can be adjusted manually or electrically to accommodate the coating requirements of cardboard of varying thicknesses (0.5–3 mm and above).

5. Speed Synchronization with Production Lines: Utilizing an independent variable-frequency drive, the speed automatically matches the production line’s speed; some models can reach maximum operating speeds of 80–220 m/min.

6. Modular Design and Easy Maintenance: The adhesive roller assembly features a modular design for easy installation and removal; the adhesive tray can be raised and lowered pneumatically for convenient cleaning; and adhesive deflector plates effectively prevent high-speed adhesive splatter.
