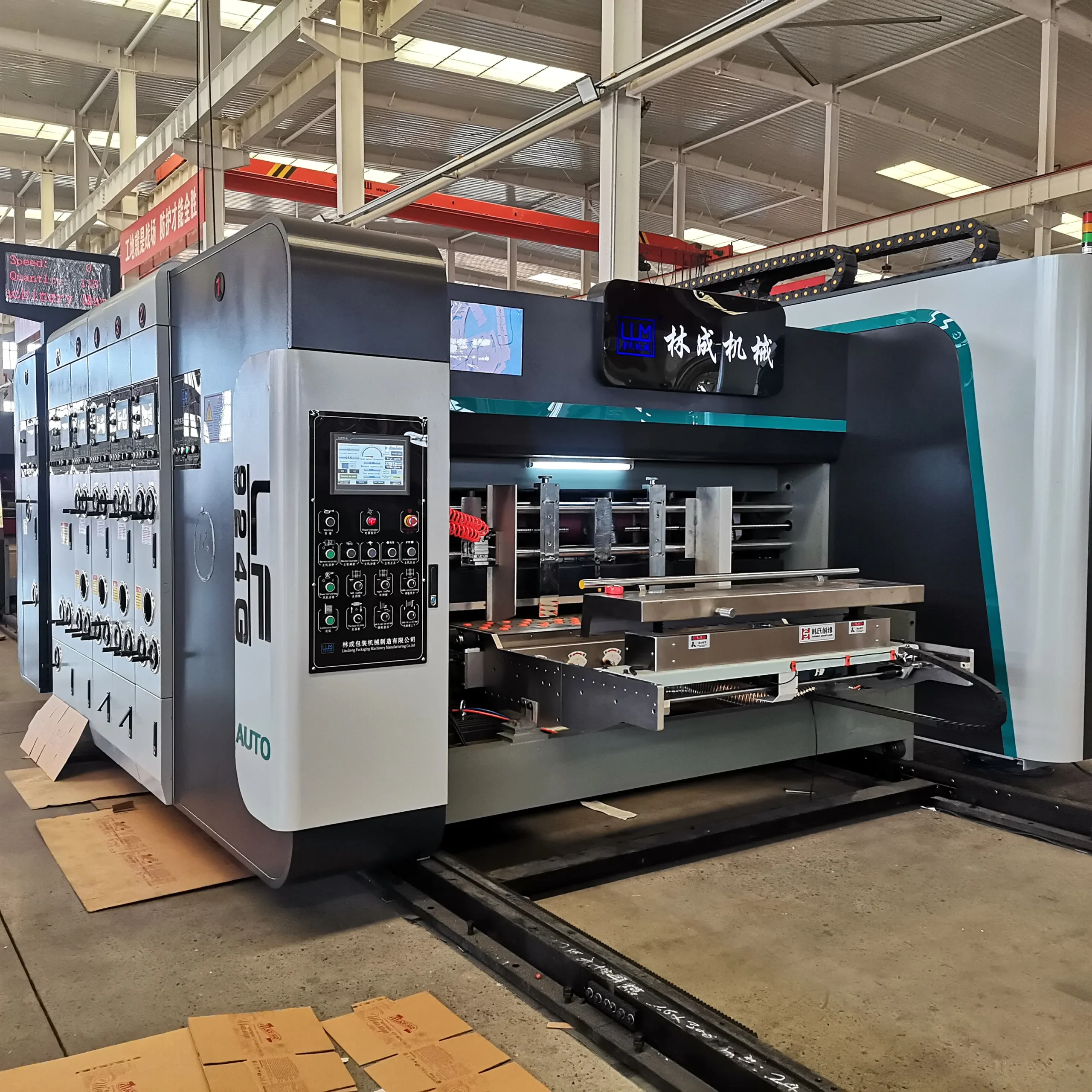

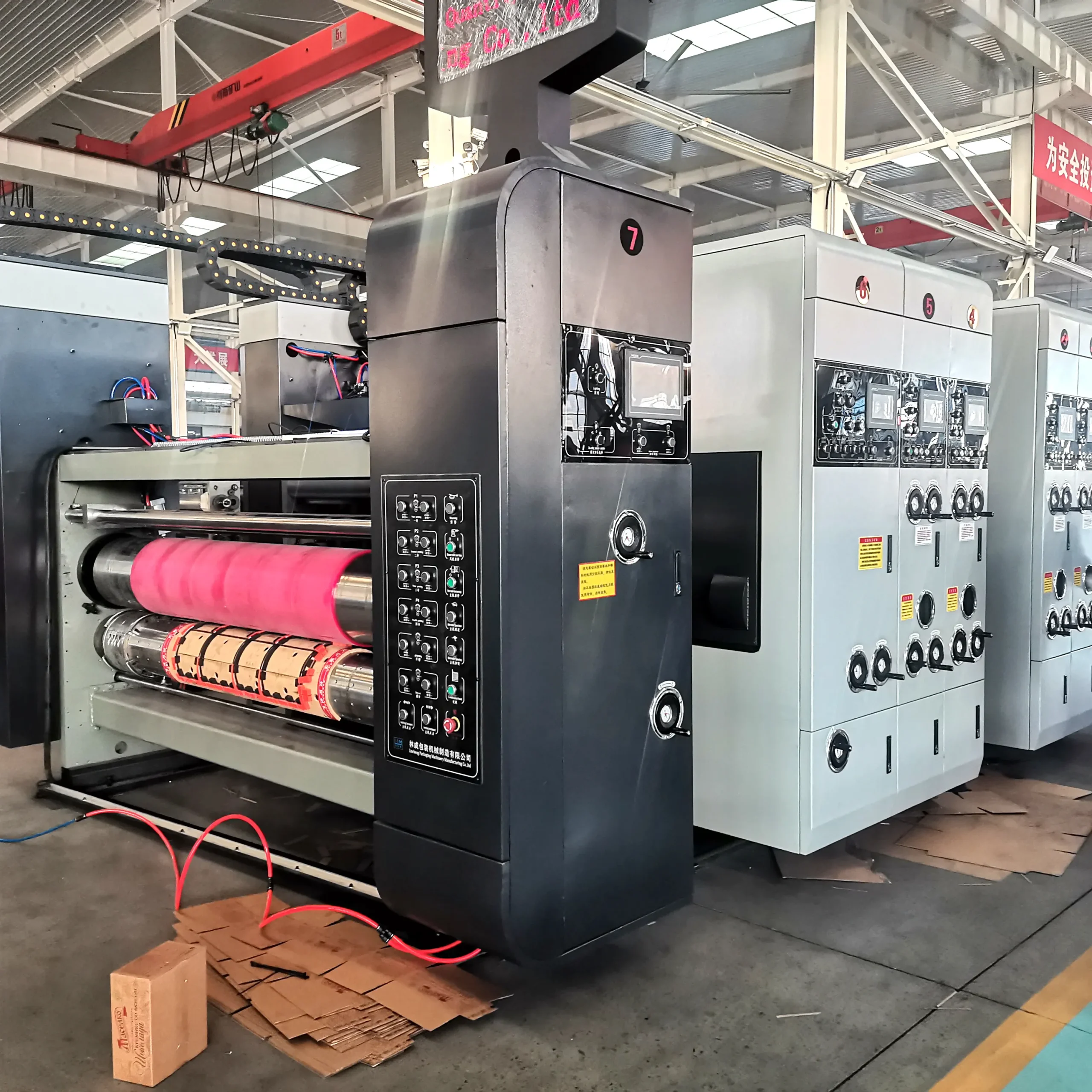

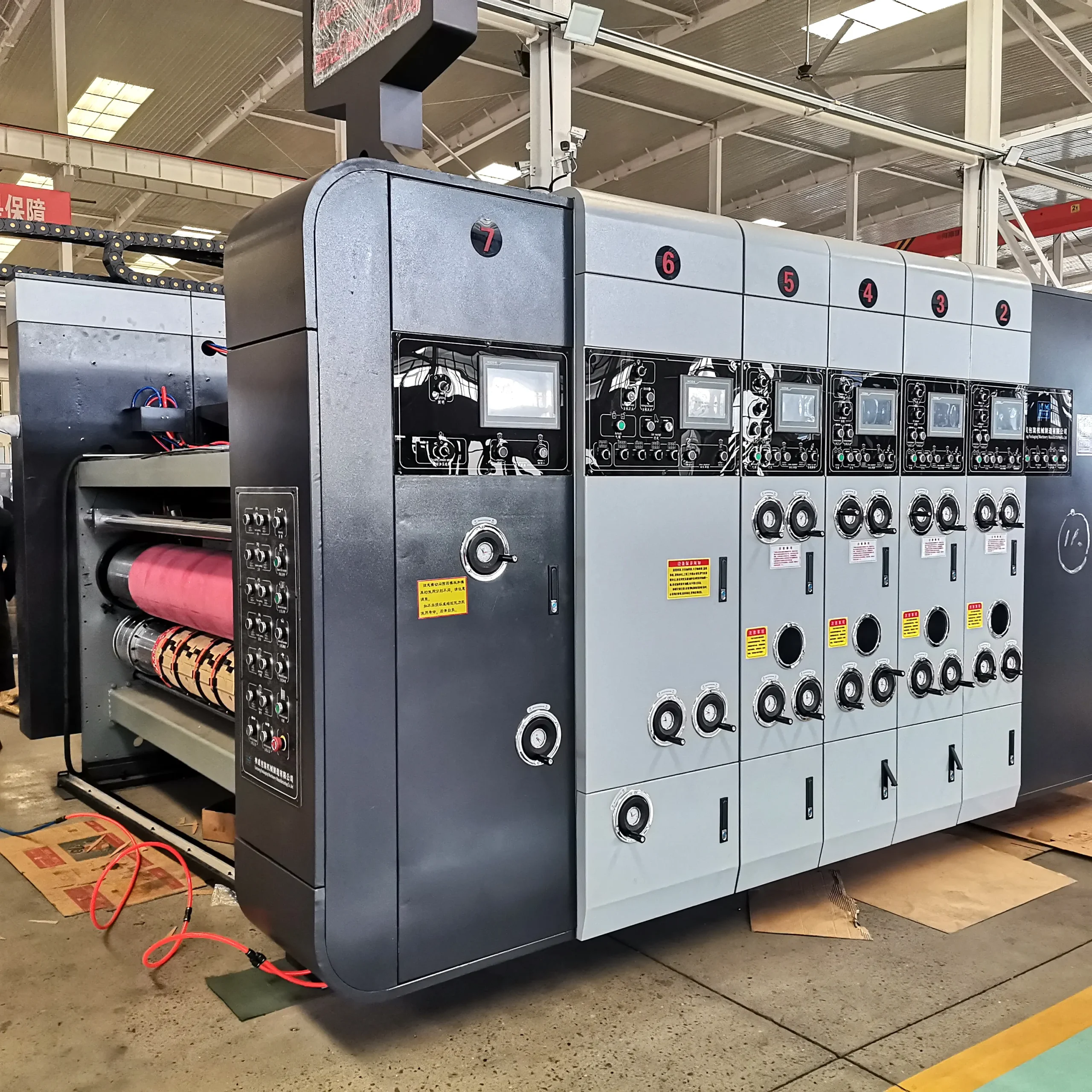

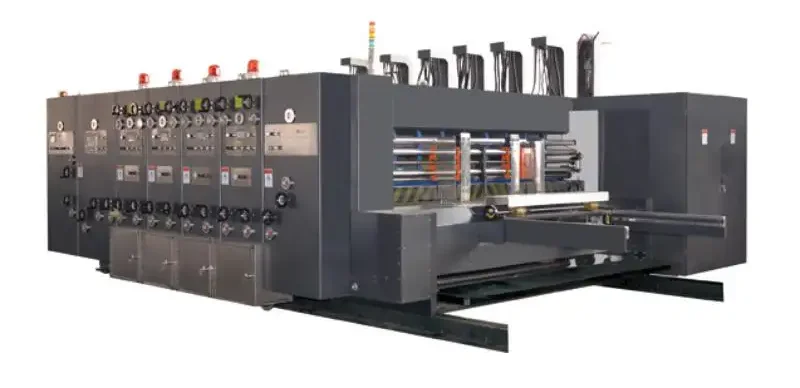

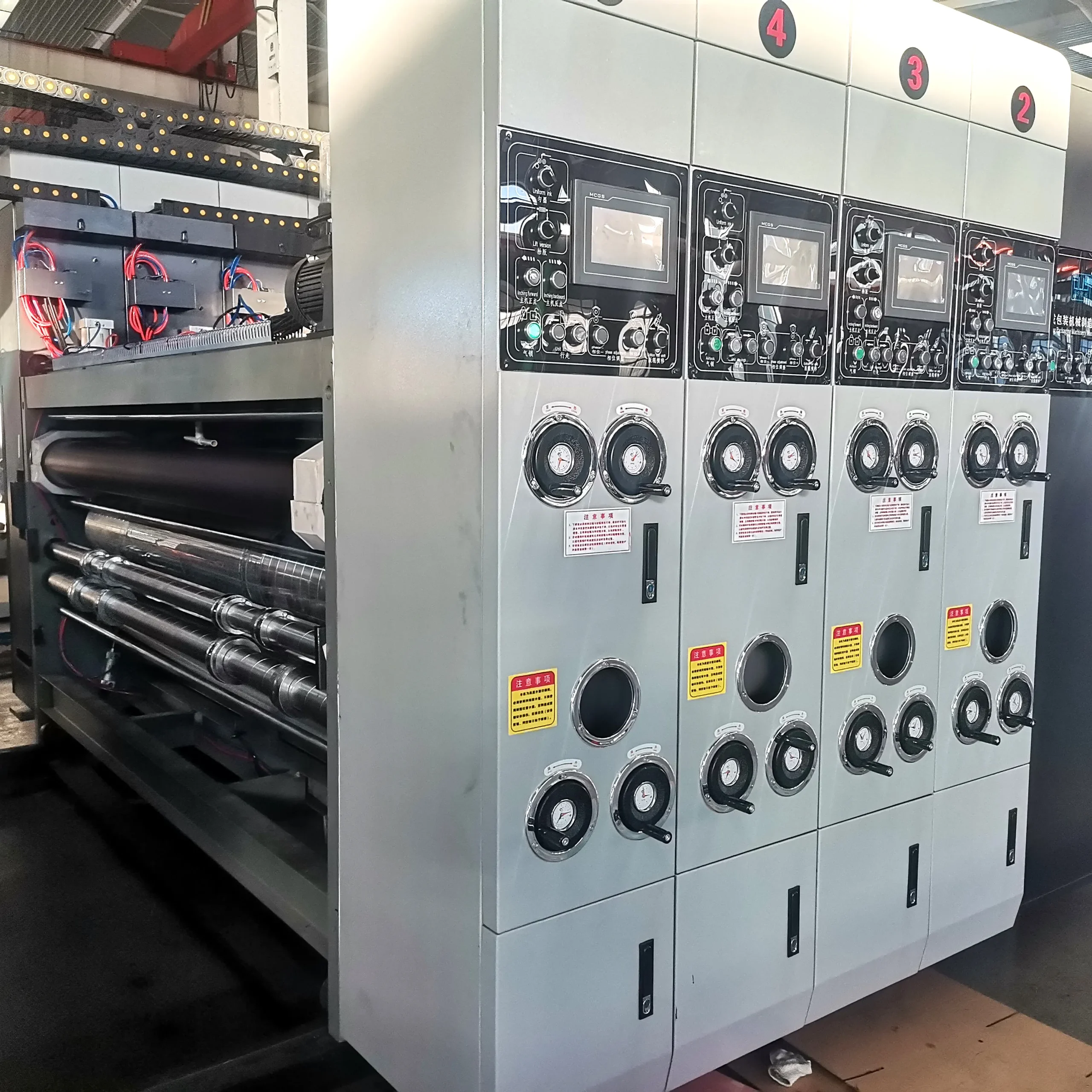

Flexo 2/3/4 Color Printer Slotter Die Cutter
Products
- 3/5/7 ply corrugated cardboard production line
- Single Wall Corrugated Cardboard Production Line
- LUM-A
- LUM-B
- LUM-C
- LUM-D
- LUM-S
- Auto 4/5/6 ply Grey hardboard production line
- Auto Splicer
- Paper Mill Roll Stand
- Paper Pre-heater Cylinder
- Secondary Gluing Machine
- Double Facer Machine
- Thin Blade Slitter Scorer
- Nc Cut off Machine
- Auto Stacker
- Flexo 2/3/4 Color Printer Slotter Die Cutter
- Folder Gluer
- Stitcher
- Flute Laminator
- LUM-A
- LUM-C
- Corrugate Rolls
- Corrugated Parts
- Cutting blade
- abcde
- Starting a New Journey
- Starting a New Journey | LINCHENG’s Shanghai Branch is Officially Launched-2
- Starting a New Journey | LINCHENG’s Shanghai Branch is Officially Launched-3
- AAAAA-COPY- Starting a New Journey
- test
LUM-A/B/C corrugated board production line is a process of corrugating, gluing, drying, cooling and shaping, slitting and creasing, cross-cutting into standard board, and finally conveying and stacking to produce qualified board products, realizing high-speed and efficient assembly line operation. The company produces high-, medium- and low-grade 3, 5, and 7-layer corrugated board production lines with production widths ranging from 1400 to 2800mm and production speeds ranging from 60m to 250m/min, which can be selected by users according to their needs.
Main characteristics：
- The material is made of high-quality chromium-molybdenum alloy steel or tungsten carbide.
- The corrugated shape is the internationally accepted UV type, carefully designed, with low paper shrinkage, and the pressed paperboard is of good quality and high strength.
- Using imported precision machine tools, advanced forming grinding and computer indexing technology, the flute size accuracy meets national standards.
| Model | Unit | LUM-B 2200 | LUM-B 2400 | LUM-B 2400 | LUM-B 2600 | LUM-B 2600 | |
| Design speed | pcs/min | 120/ 150/ 200/ 250 | |||||
| Economic speed | pcs/min | 80-100/ 100-130/ 150-180/ 200-220 | |||||
| Max.feeding size (mm) | mm | 900×2200 | 1200×2400 | 1400×2400 | 1600×2600 | 1800×2600 | |
| Min.size of paperboard | mm | 300×700 | 300×700 | 350×700 | 350×700 | 400×700 | |
| Min. space of slotting | Obverse knife | mm | 160×160×160×160 | 160×160×160×160 | |||
| Reverse knife | mm | 280×80×280×80 | 280×80×280×80 | ||||
| Max.depth of slot | mm | 240 | 240 | 300 | 300 | 300 | |
| Skip feeding size | mm | 900×2200 | 1250×2400 | 1450×2400 | 1650×2600 | 1850×2600 | |
| Max.printing area | mm² | 900×2000 | 1200×2200 | 1400×2200 | 1800×2400 | 1800×2400 | |
| Plate Thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
