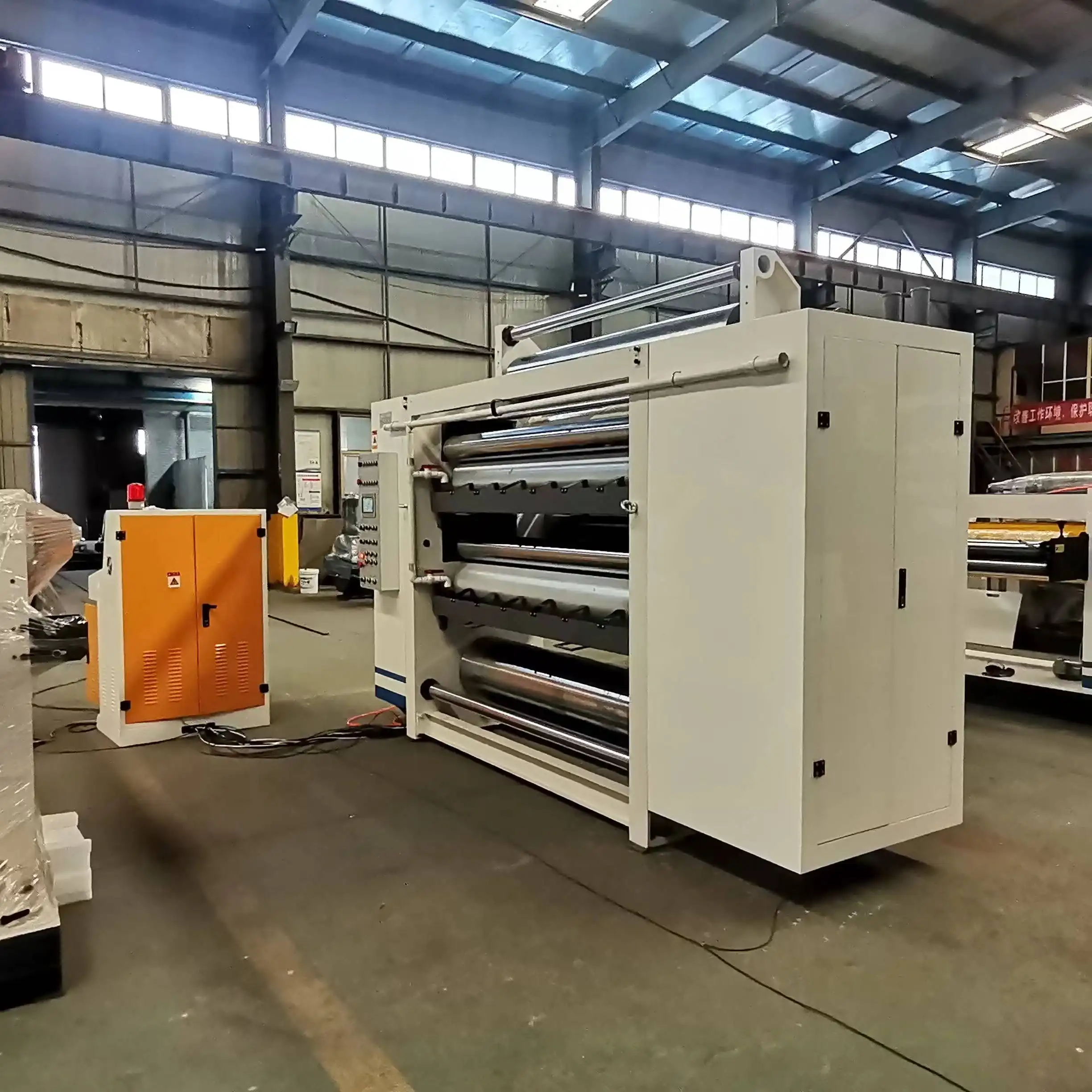

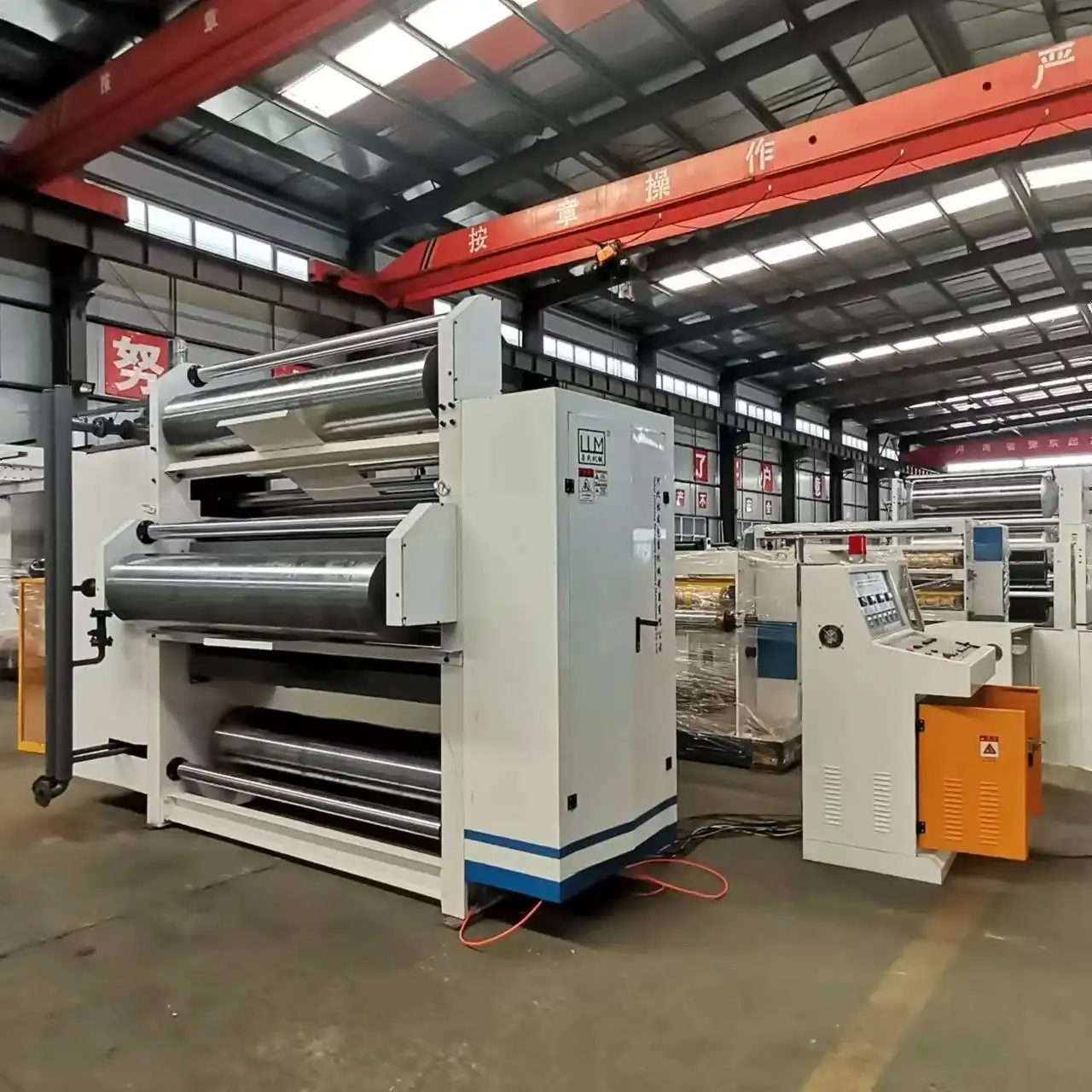

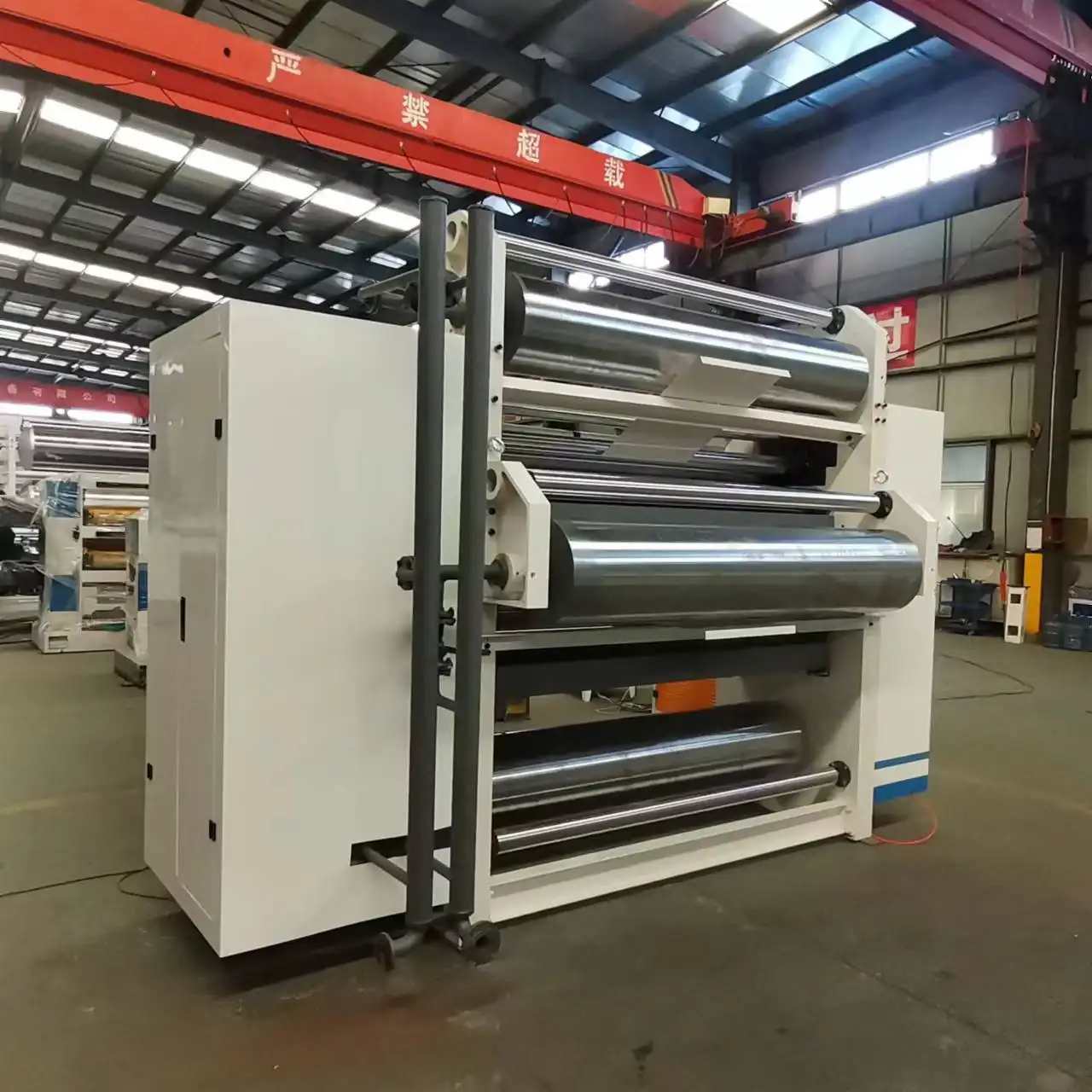

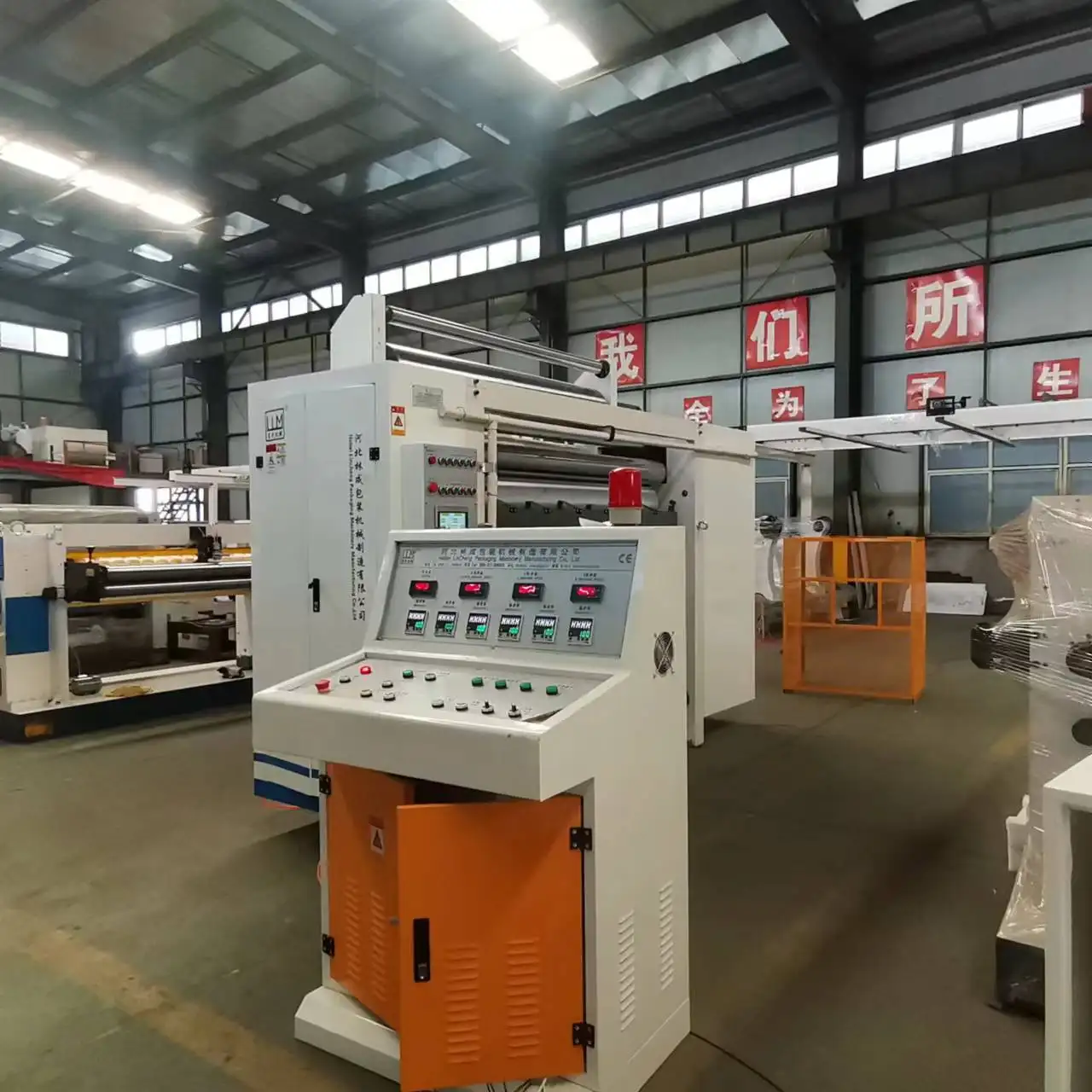

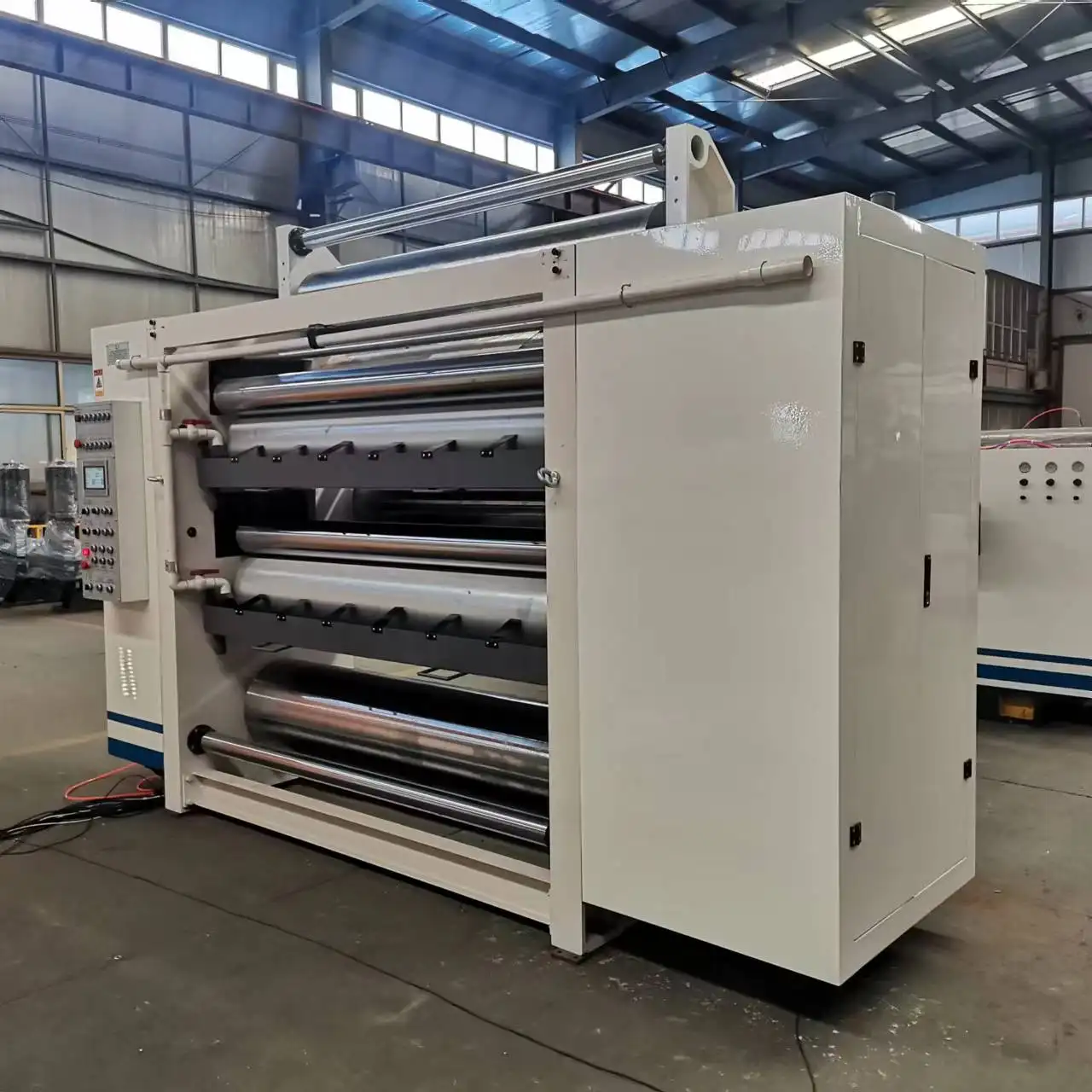

LUM-A/B/C corrugated board production line is a process of corrugating, gluing, drying, cooling and shaping, slitting and creasing, cross-cutting into standard board, and finally conveying and stacking to produce qualified board products, realizing high-speed and efficient assembly line operation. The company produces high-, medium- and low-grade 3, 5, and 7-layer corrugated board production lines with production widths ranging from 1400 to 2800mm and production speeds ranging from 60m to 250m/min, which can be selected by users according to their needs.
Main characteristics：
- The material is made of high-quality chromium-molybdenum alloy steel or tungsten carbide.
- The corrugated shape is the internationally accepted UV type, carefully designed, with low paper shrinkage, and the pressed paperboard is of good quality and high strength.
- Using imported precision machine tools, advanced forming grinding and computer indexing technology, the flute size accuracy meets national standards.
| No | Name | Technical parameter |
| 1 | Working width | 1400-2200mm |
| 2 | Operating direction | According to customer's require |
| 3 | Wallboard thickness | Adopt casting HT200/thickness 70mm/120mm |
| 4 | Glue roller diameter | Ø318mm |
| 5 | Doctor roller diameter | Ø160 mm |
| 6 | Down preheat roller diameter | Ø500 mm |
| 7 | Up preheat roller diameter | Ø400 mm |
| 8 | Steam consumption | 0.1-0.15MPa |
| 9 | Air source pressure | 0.6-0.9Mpa |
| 10 | Paste glue roller and fixed roller with 45 steel, quenched the surface, the inner hole grinding:do running balance and grinding roller body engraved with pit-style textured, gluing evenly and save more glue. | |
| 11 | Squeegee roller surface grinding and hard chrome plated,other roller of the paper guide roller and shaft is hard chrome plated. | |
| 12 | Press paper roller up and down adopt pneumatic control,easy to operate. | |
| 13 | The glue gap between the roller and roller squeegee using manual control or electric inverter control. | |
| 14 | Automatic cycle for glue, glue to prevent sedimentation:(OPTIONAL:PLC touch screen andt ouch shoe plate for option) | |
