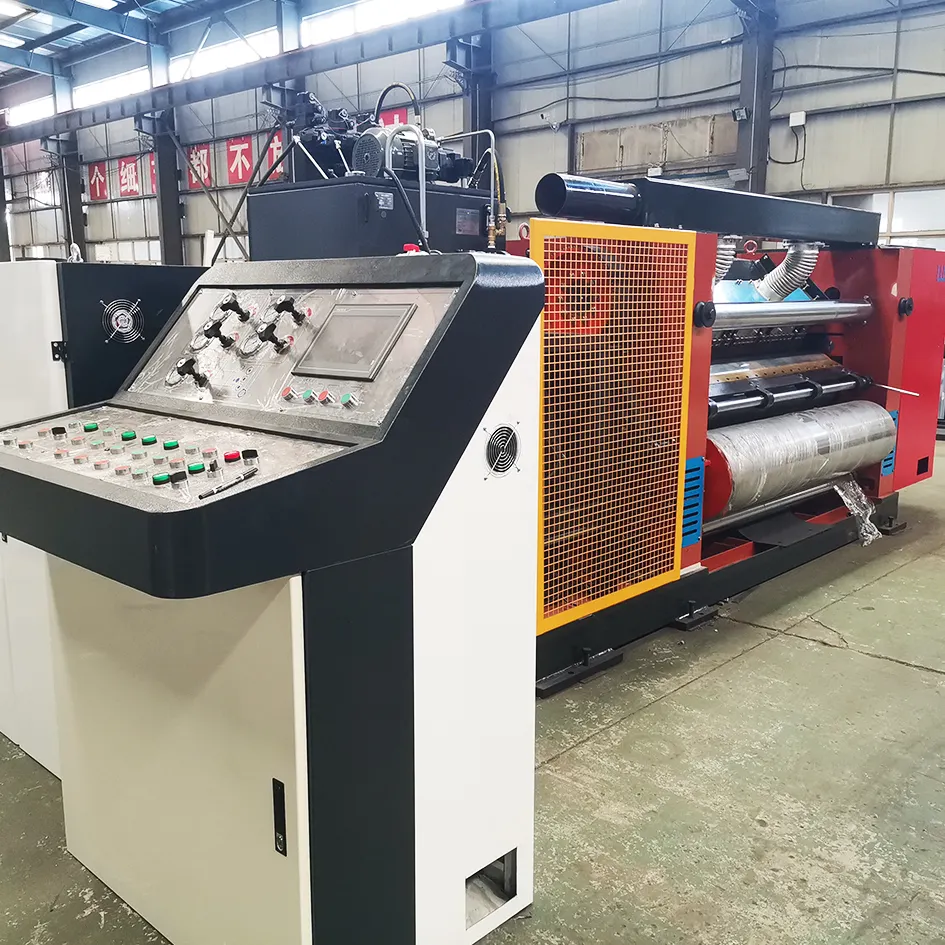

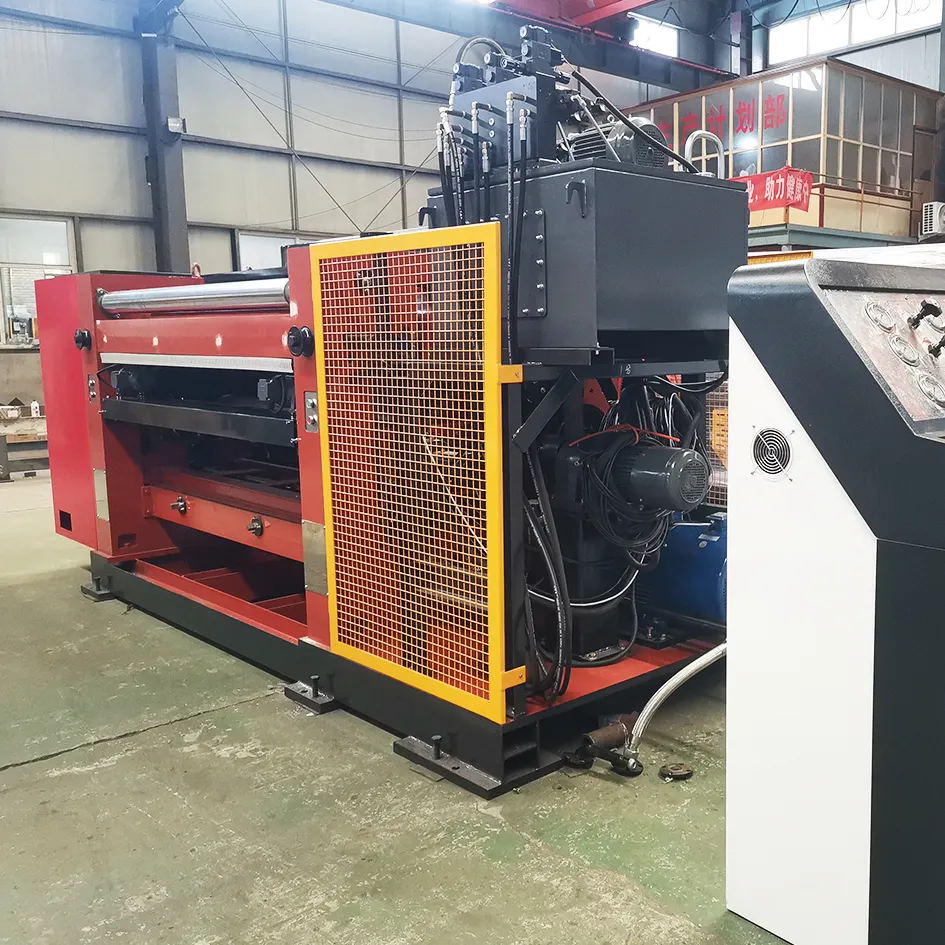

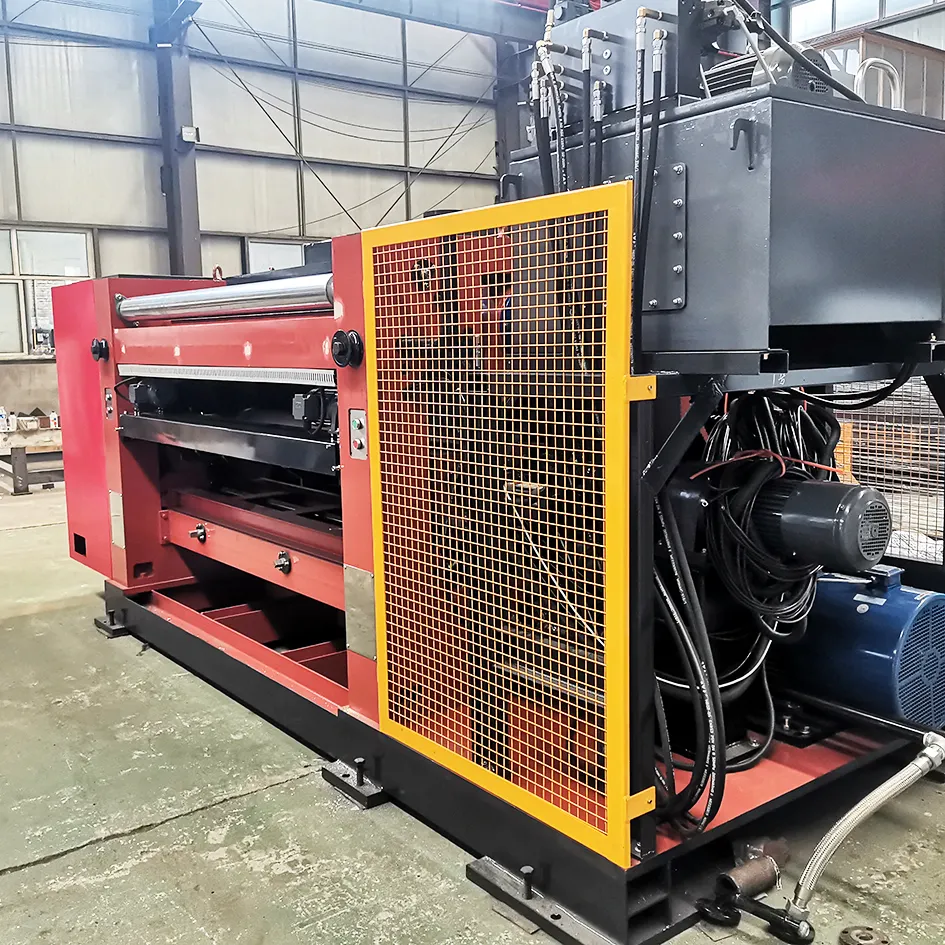

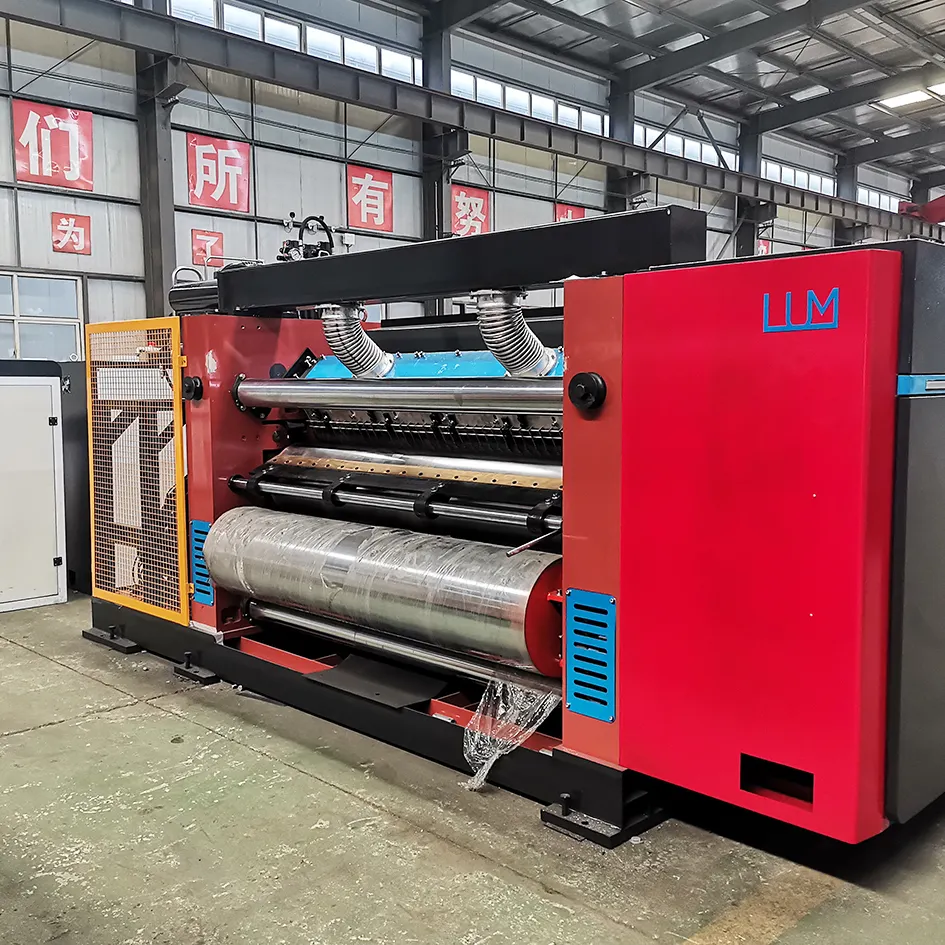

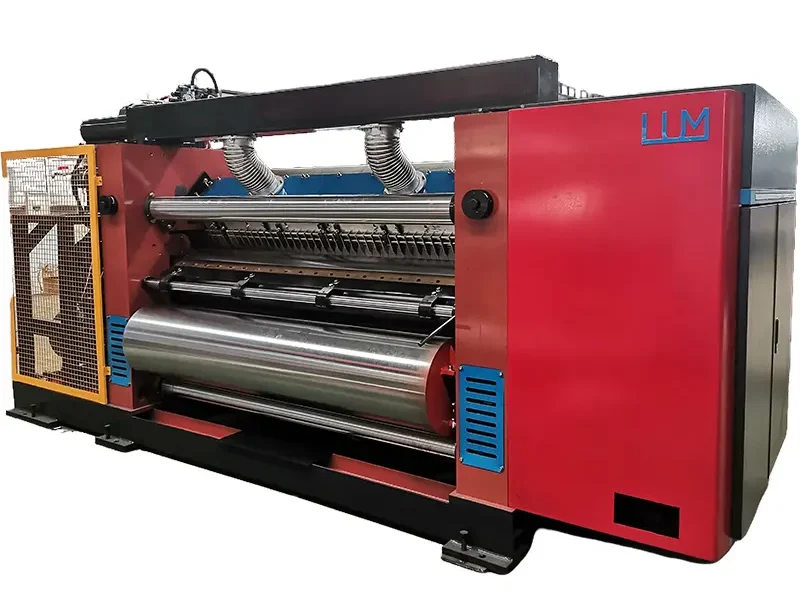

LUM-C Single Facer
Key Features:
1. Corrugating rolls are available with optional carbide material, delivering significantly enhanced wear resistance for high-intensity continuous operation.
2. Standard UV fluting design produces boards with excellent compression strength and cushioning performance.
3. Equipped with a computer-controlled gap adjustment system for precise and rapid roll spacing, enabling quick changeover between different board specifications.
| NO. | Name | Specifications |
| 1 | Working width | 1400 - 2200mm |
| 2 | Design speed | 200m/min |
| 3 | Thickness wallboard | Casting HT200/ thickness 240mm |
| 4 | Corrugated roller diameter | Φ380mm/52CrMoalloy steel |
| 5 | Pressure roller diameter | Φ380mm /45# steel |
| 6 | Preheating roller diameter | Φ400mm/45# steel |
| 7 | Glue roller diameter | Φ240mm/45# steel |
| 8 | Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Φ380m,surface hardness HRC60 degrees;Adopt pneumatic cylinders control up and down of corrugated roller. | |
| 9 | Gimble drive,with independent driver box.Enclosed gear oil immersion lubrication, extend the life of the gear. | |
| 10 | Glue roller and glue roller are designed to groups guide way slippage,debug and conveniently;Corrugated roller unit is designed with host machine separately,easy for lift outside and change other type flute roller. | |
| 11 | Vacuum adsorption to guide paper with a strong high-pressure turbine.With wind control device machine suction silencer. | |
| 12 | Adopt electric adjust glue width,coated paste run independently,when the host stopped,to prevent the paste dry. | |
| 13 | Glue amount with electric adjustment and digital display,easy to operate.(Fitted with foggy sprayer device for paper pre-heater; PLC touch screen can be chosed!) | |
