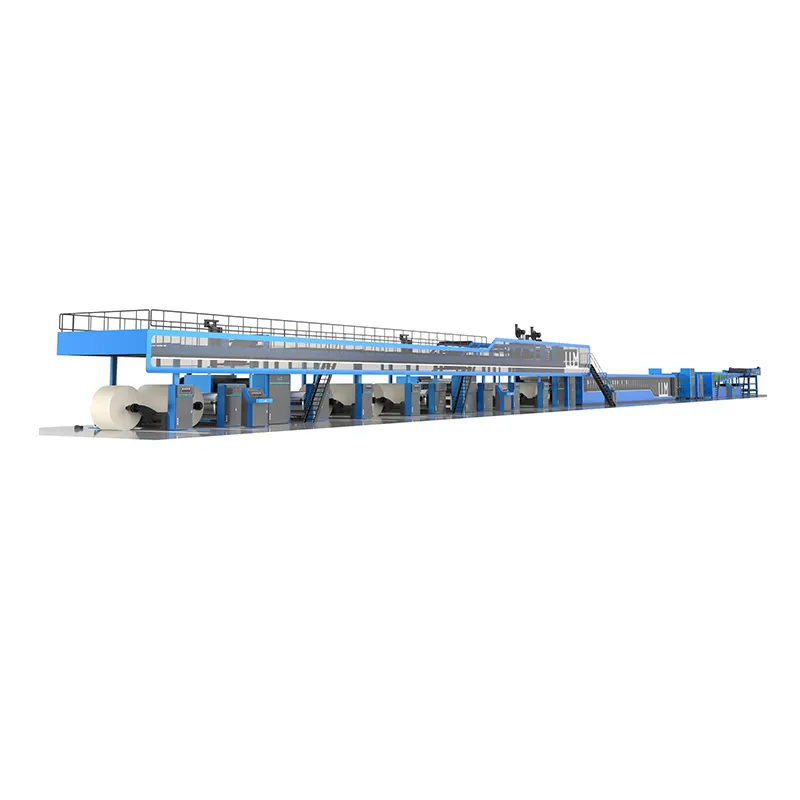

LUM High Speed 3/5/7 ply Corrugated Paperboard Production Line
LUM-A/B/C/D/S corrugated paperboard production line,which includes Paper Mill Roll Stand, Single Facer Corrugator, Pre-heater Jar, Conveyor Bridge, Gluing Machine, NC Slitter Scorer, NC Cut Off and Auto-stacker, then to produce high quality board, which can reach high speed and high performance.
LUM-A/B/C/D/S corrugated paperboard production line,which includes Paper Mill Roll Stand, Single Facer Corrugator, Pre-heater Jar, Conveyor Bridge, Gluing Machine, NC Slitter Scorer, NC Cut Off and Auto-stacker, then to produce high quality board, which can reach high speed and high performance. We can produce the 3 ply, 5 ply and 7 ply corrugated paperboard production line,width range 1400-2800mm, and production speed 100-300m/min. Customer can choose corrugator width and speed according to his production demand.
Technical parameter:
| Model | Design Speed (m/min) | Economic Speed (m/min) | Working width (mm) | Flute selection | Multi-ply Board |
| LUM-A | 120 | 80-100 | 1400-2200 | A, B, C, E, F TYPE | 3/5/7 ply board |
| LUM-B | 150 | 100-120 | 1400-2200 | ||
| LUM-C | 200 | 150-180 | 1400-2200 | ||
| LUM-D | 250 | 200-220 | 1800-2800 | ||
| LUM-S | 300 | 250-280 | 1800-2800 |
