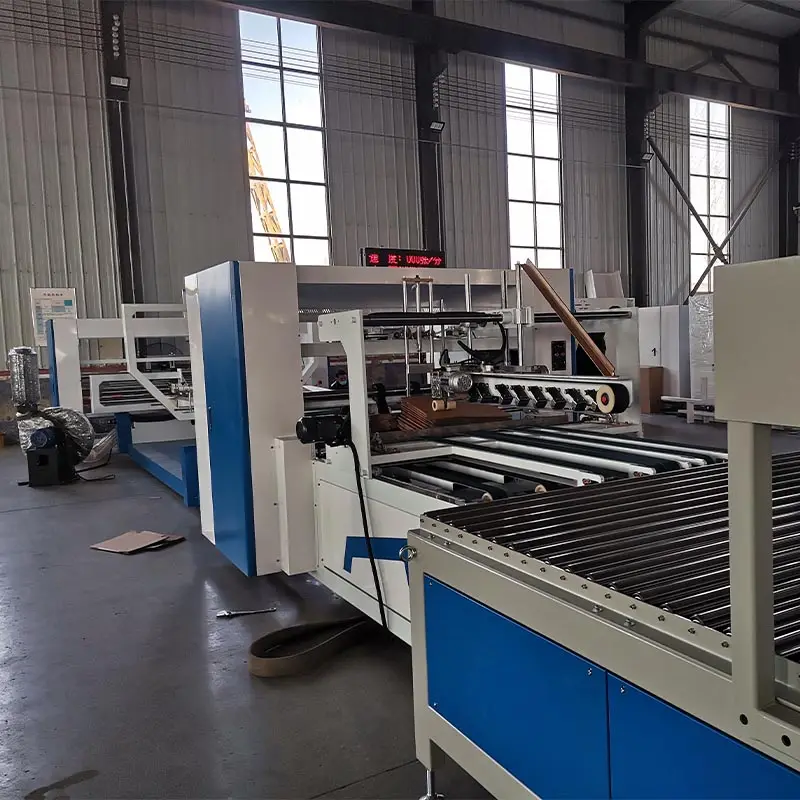

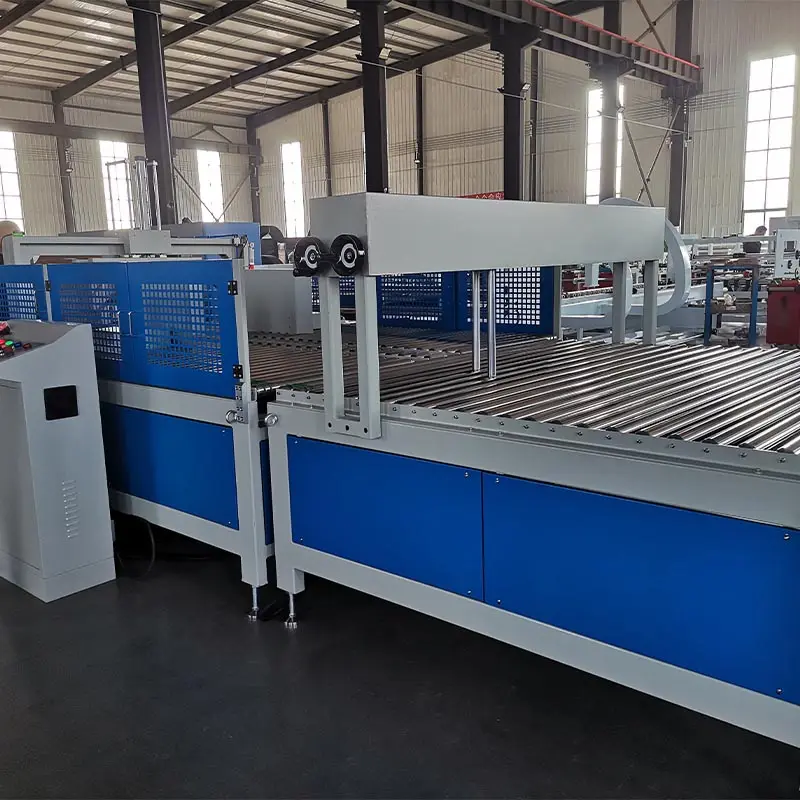

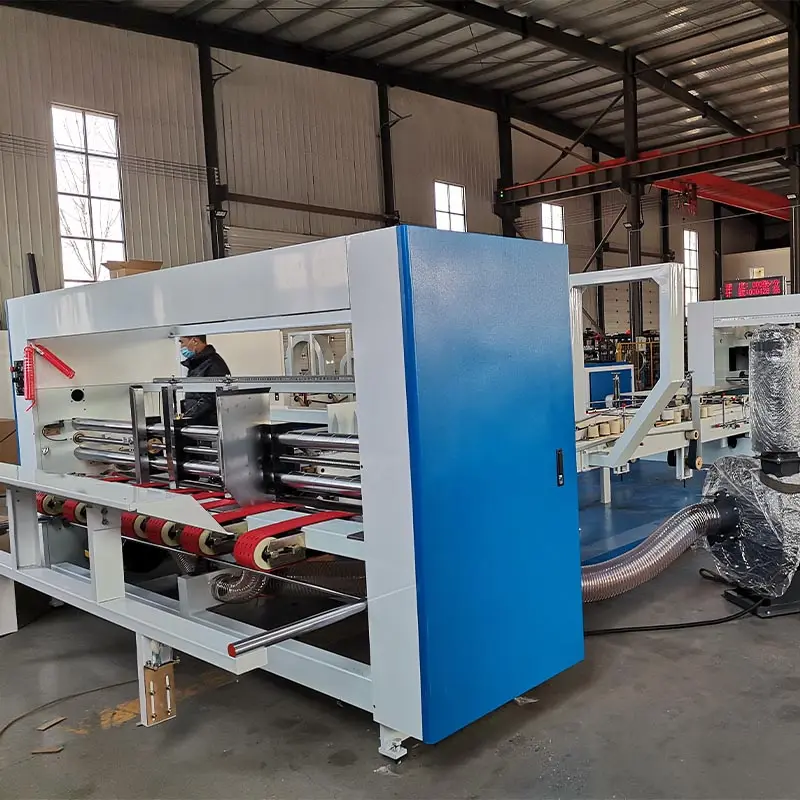

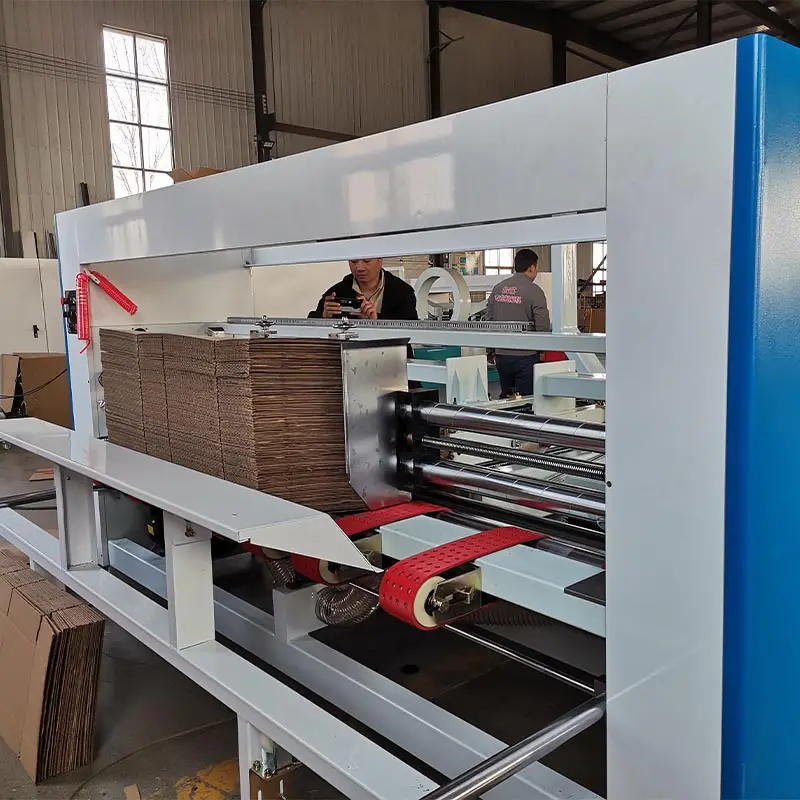

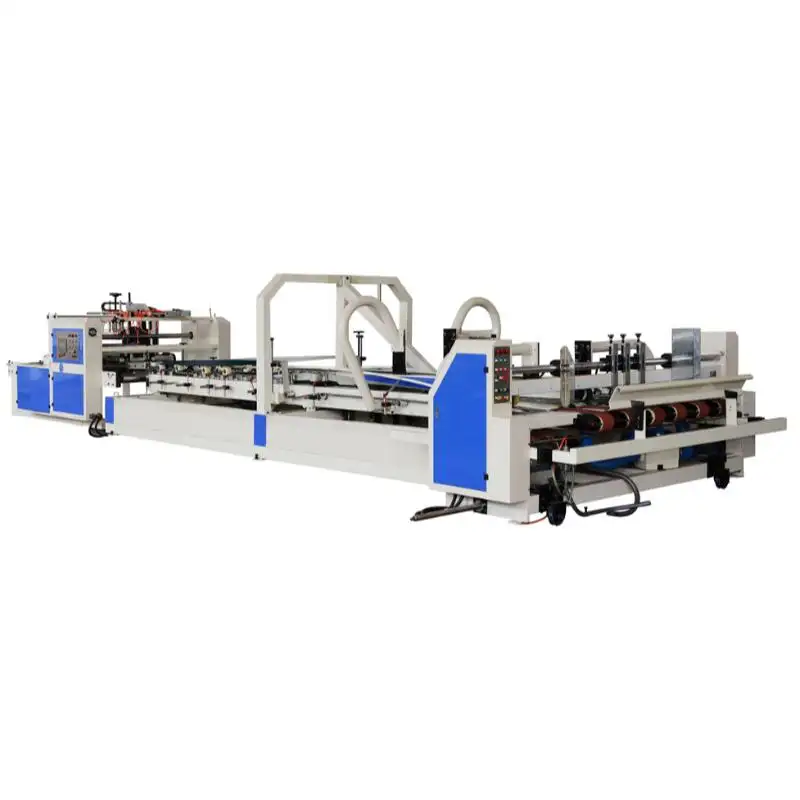

LUM Automatic Folder Gluer machine
Wide range of application, common carton, special-shaped color box single-page molding bonding, after adding automatic glue spraying device, it can also be used as a hook bottom carton and a world-cover carton…
Feature:
◆ Automatically turns off in the top and the two parts can be completed simultaneously taped, while saving time and labor.
◆ Applicable to a wide range of cartons, cardboard boxes of different sizes to adjust quick and easy.
◆ Stable and reliable, strong and beautiful packaging effect.
◆ Equipment is simple, easy maintenance.
◆ Automatically correct carton straight angle, 180 degrees correction, effectively correct scissors fork, fish phenomenon.
◆ PLC HMI, front and rear dual-frequency synchronous operation.
Technical parameter:
| Model | LUM-2000 | LUM-2400 | LUM-2800 |
| Maximum board size | 1000×2000mm | 1000x2400mm | 1200×2800mm |
| Min board size | 300×680mm | 300x800mm | 300×800mm |
| Installation area | 2400×13500mm | 2800x15500mm | 3000×15500mm |
| Need power | 11.5kw | 11.5kw | 11.5kw |
