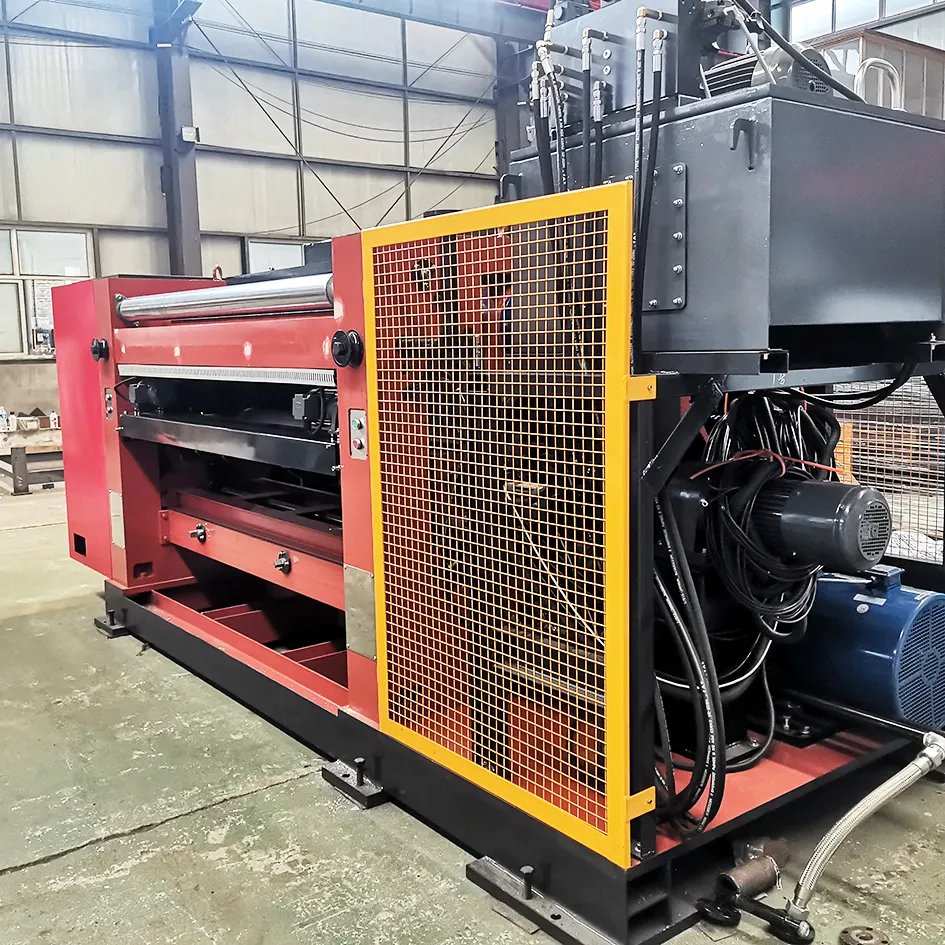

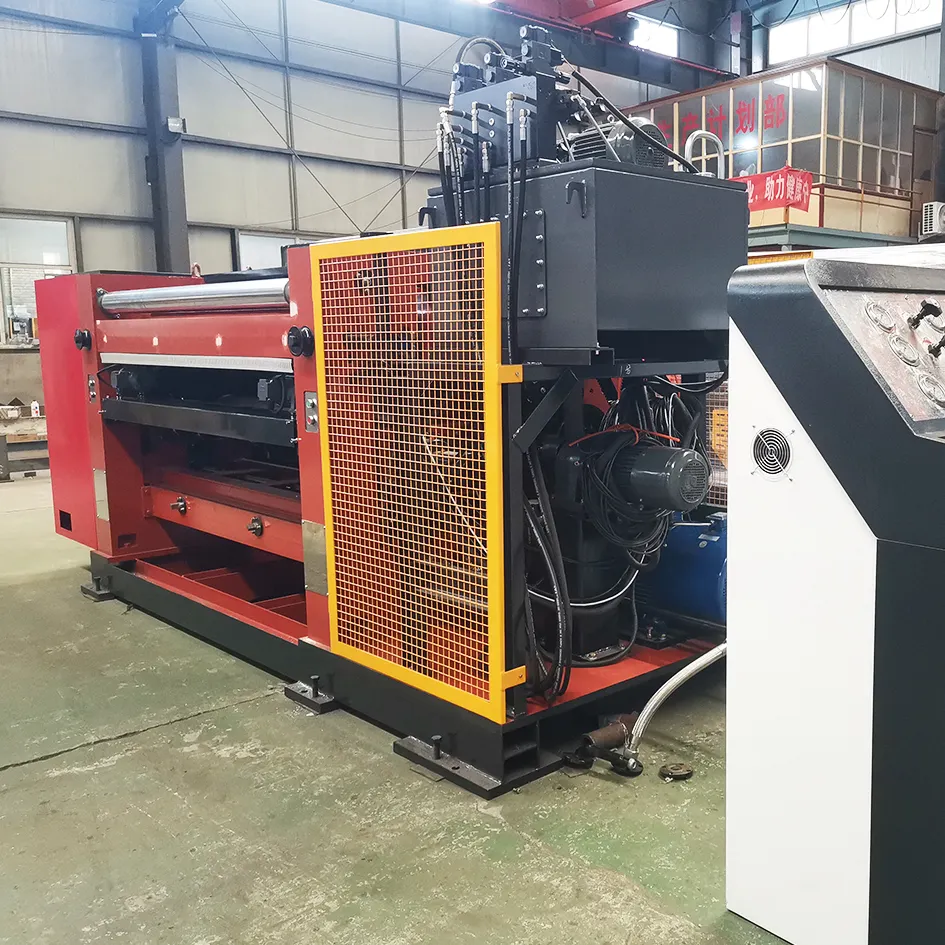

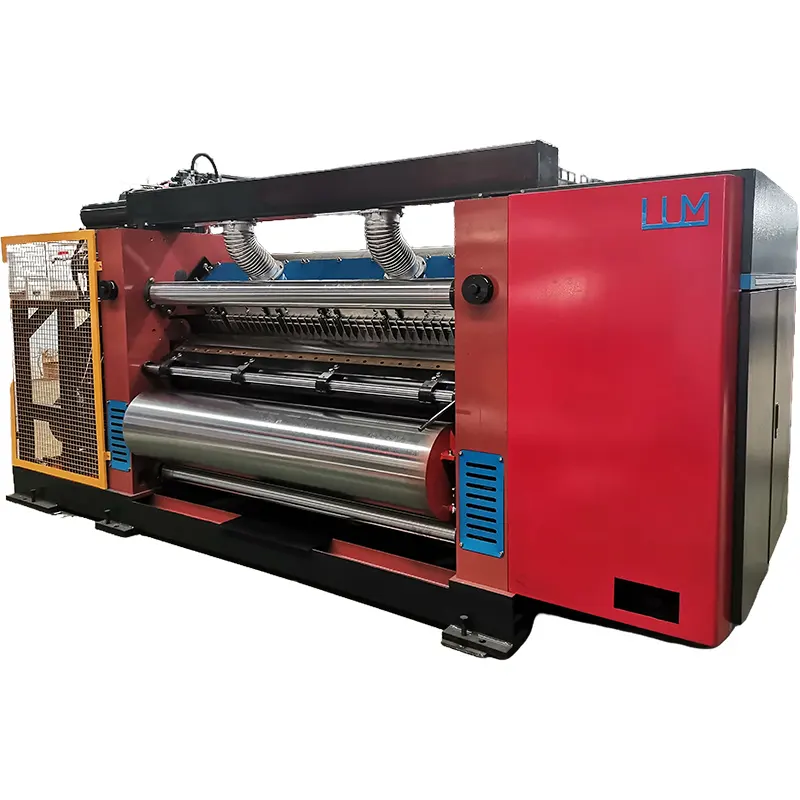

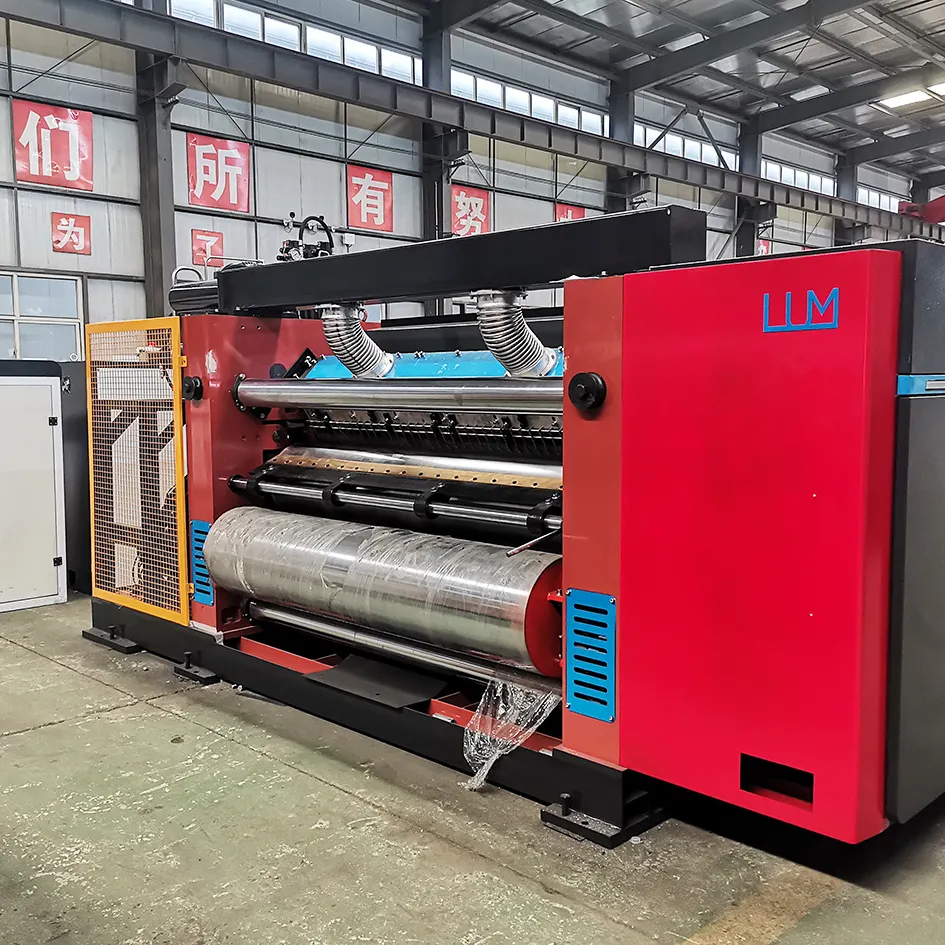

LUM-C Heavy Fixed Type Single Facer (Modular type)
Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Ø380m,surface hardness HRC60 degrees;Adopt pneumatic cylinders control up and down of corrugated roller.
1.Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Ø380m,surface hardness HRC60 degrees;Adopt pneumatic cylinders control up and down of corrugated roller.
2.Gimble drive,with independent driver box.Enclosed gear oil immersion lubrication, extend the life of the gear.
3.Glue roller and glue roller are designed to groups guide way slippage,debug and conveniently;Corrugated roller unit is designed with host machine separately,easy for lift outside and change other type flute roller.
4.Vacuum adsorption to guide paper with a strong high-pressure turbine.With wind control device machine suction silencer.
5.Adopt electric adjust glue width,coated paste run independently,when the host stopped,to prevent the paste dry.

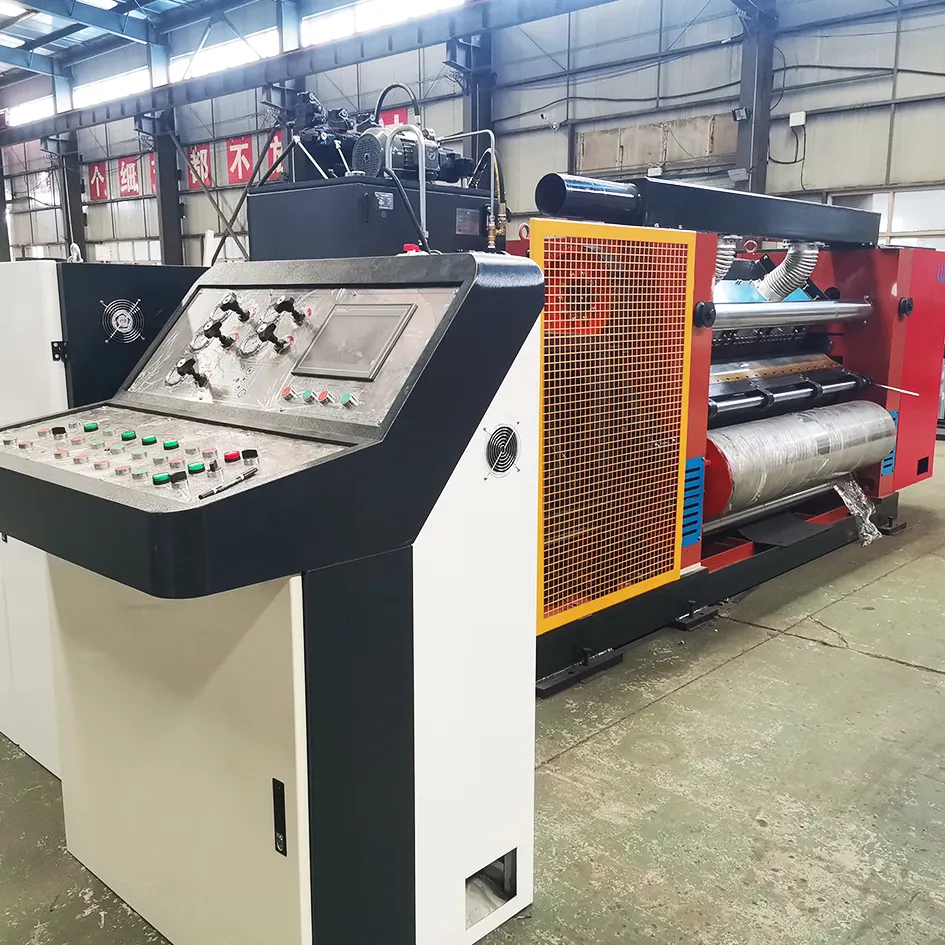

6.Glue amount with electric adjustment and digital display,easy to operate.(Fitted with foggy sprayer device for paper pre-heater; PLC touch screen can be chosed!
| NO. | Name | Specifications |
| 1 | Working width | 1400 - 2200mm |
| 2 | Design speed | 200m/min |
| 3 | Thickness wallboard | Casting HT200/ thickness 240mm |
| 4 | Corrugated roller diameter | Φ380mm/52CrMoalloy steel |
| 5 | Pressure roller diameter | Φ380mm /45# steel |
| 6 | Preheating roller diameter | Φ400mm/45# steel |
| 7 | Glue roller diameter | Φ240mm/45# steel |
| 8 | Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Φ380m,surface hardness HRC60 degrees;Adopt pneumatic cylinders control up and down of corrugated roller. | |
| 9 | Gimble drive,with independent driver box.Enclosed gear oil immersion lubrication, extend the life of the gear. | |
| 10 | Glue roller and glue roller are designed to groups guide way slippage,debug and conveniently;Corrugated roller unit is designed with host machine separately,easy for lift outside and change other type flute roller. | |
| 11 | Vacuum adsorption to guide paper with a strong high-pressure turbine.With wind control device machine suction silencer. | |
| 12 | Adopt electric adjust glue width,coated paste run independently,when the host stopped,to prevent the paste dry. | |
| 13 | Glue amount with electric adjustment and digital display,easy to operate.(Fitted with foggy sprayer device for paper pre-heater; PLC touch screen can be chosed!) | |
