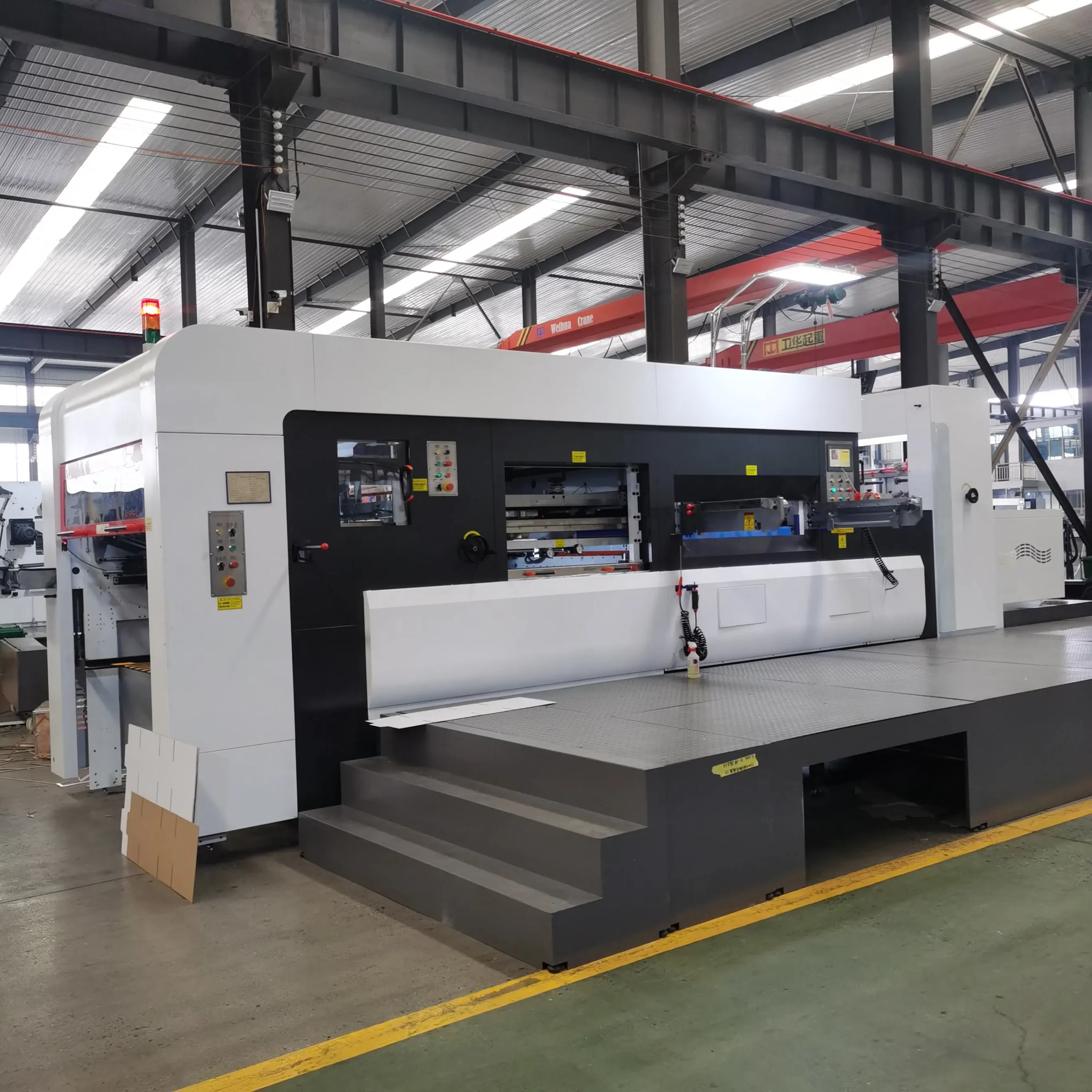

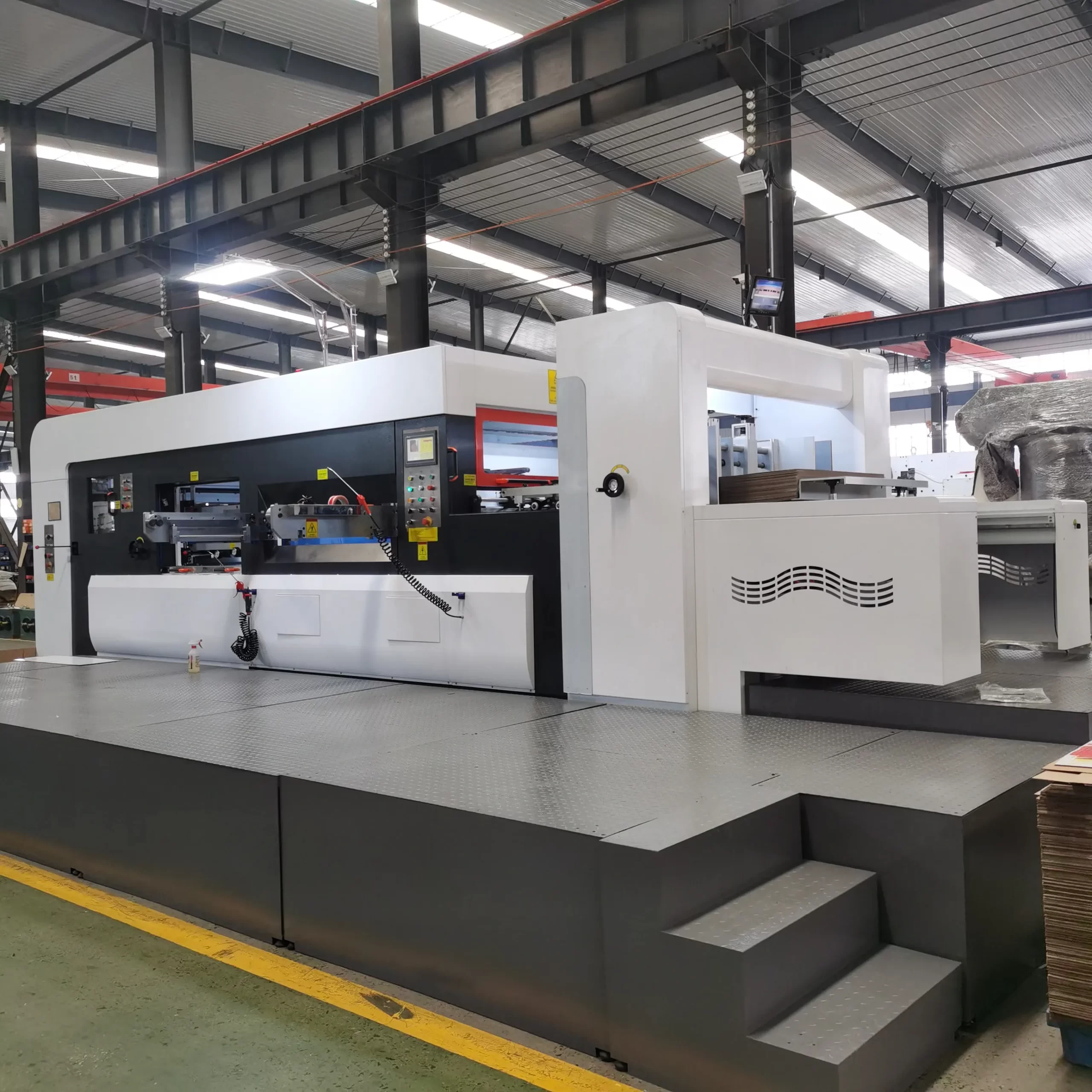

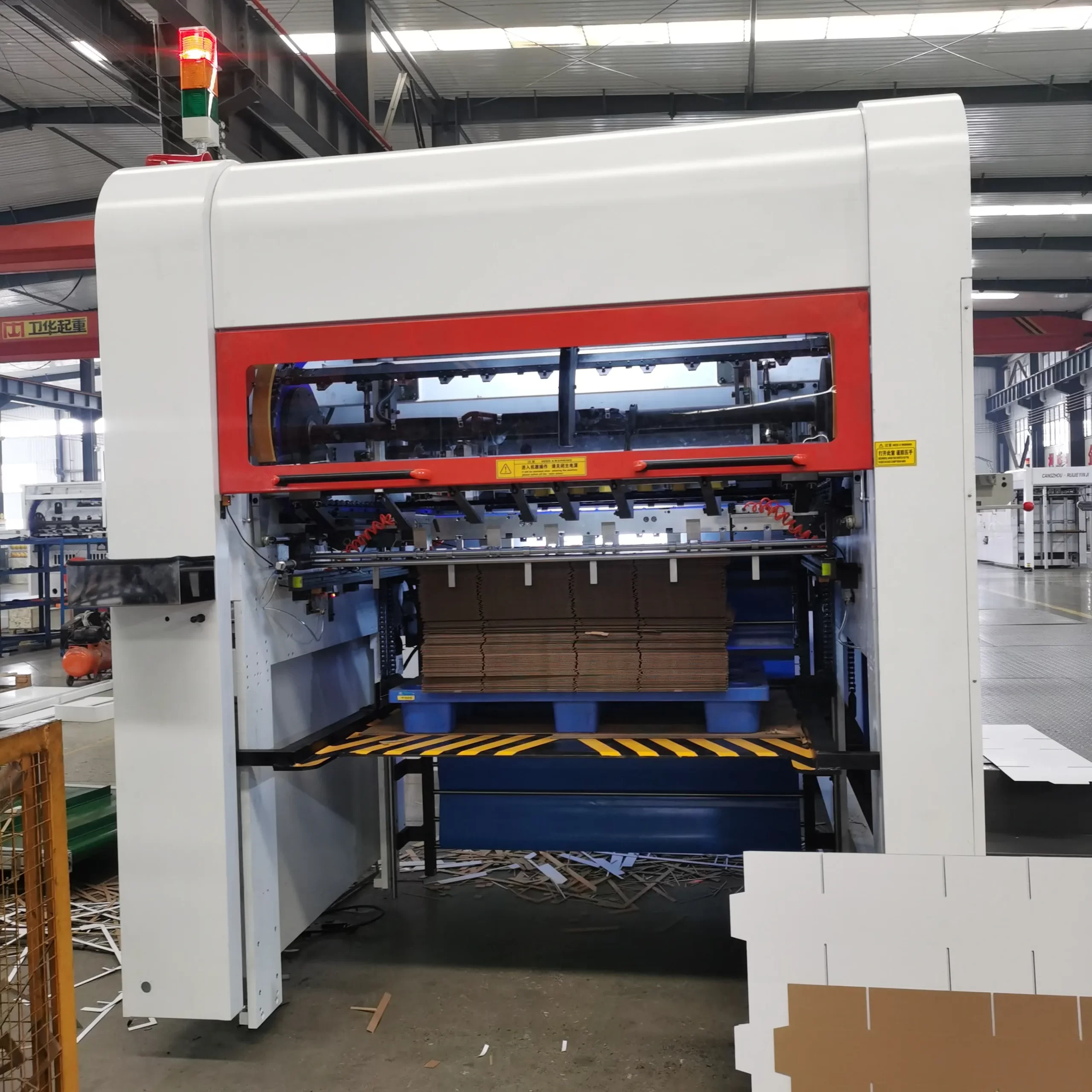

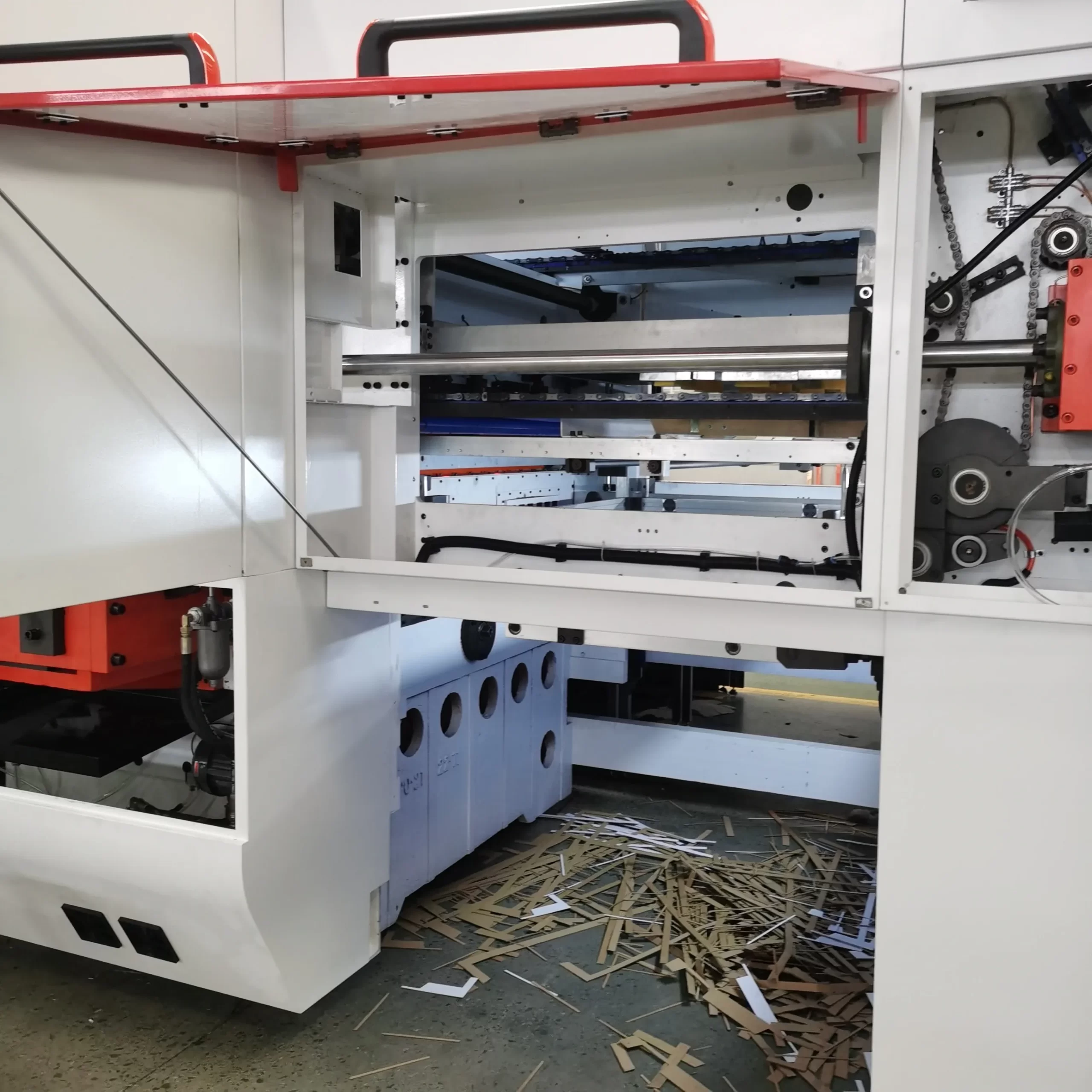

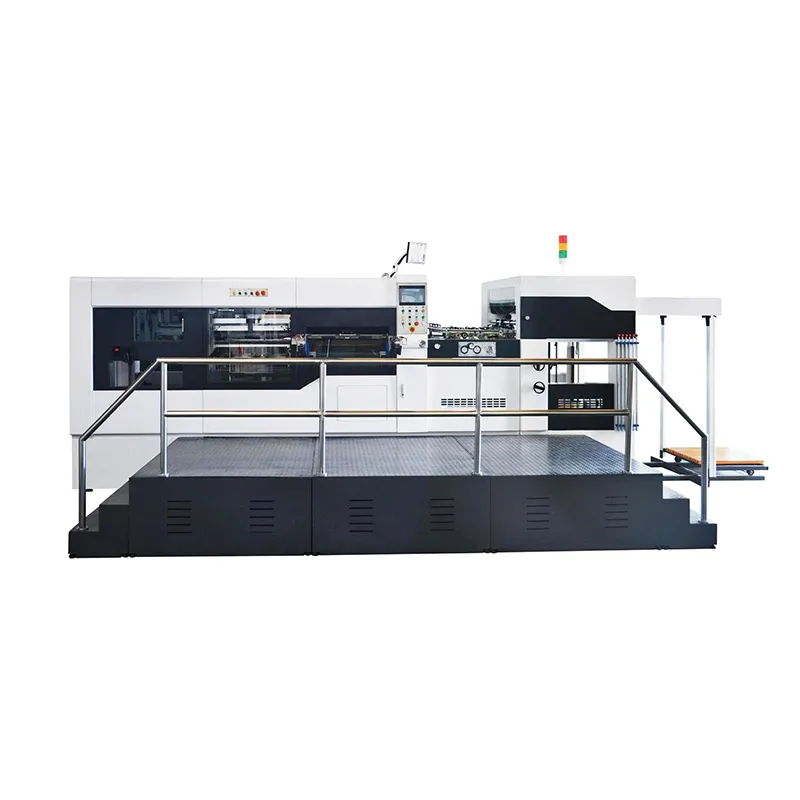

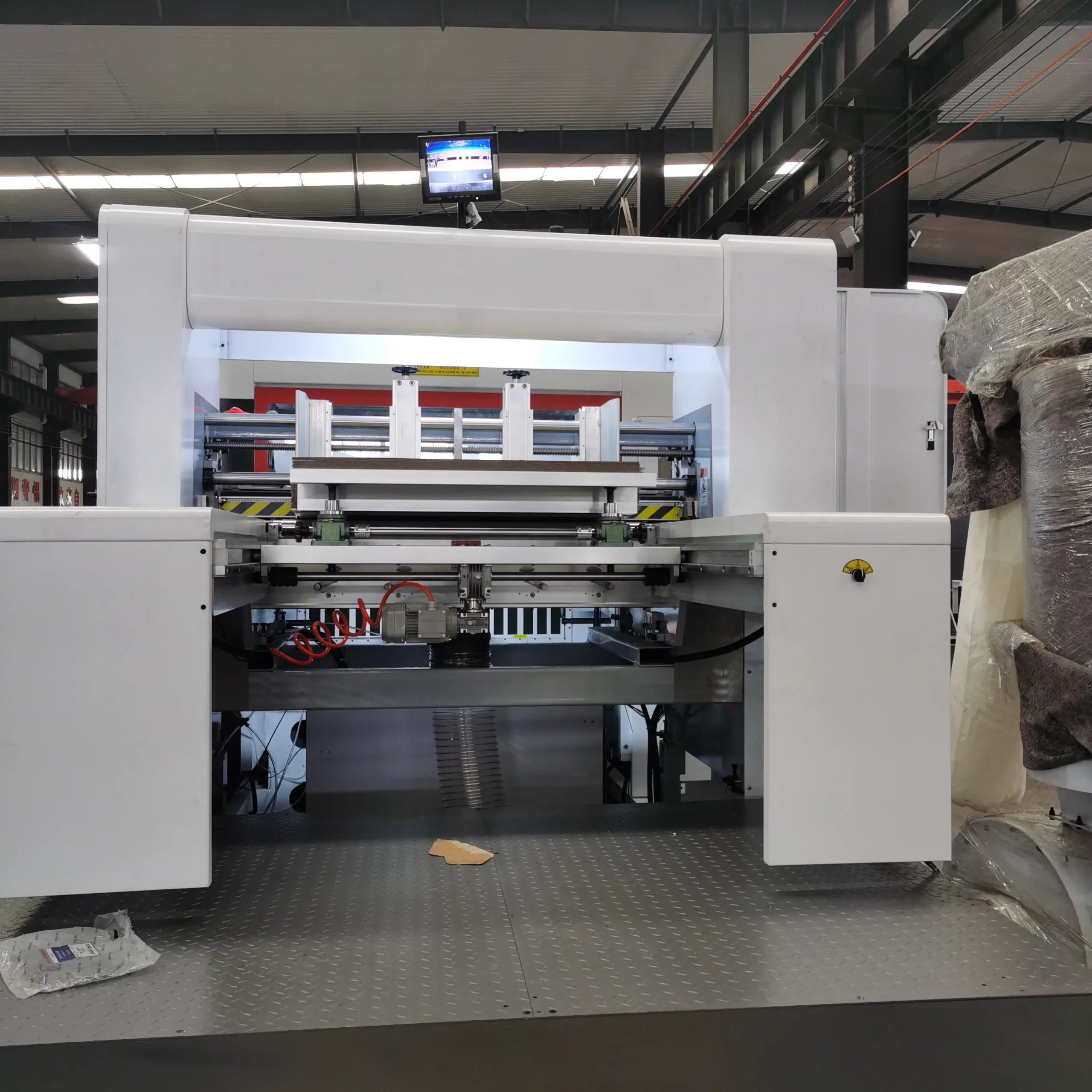

LUM Automatic Flaten Die-Cutting Creasing Machine
Main feature:
1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper’s speed.
3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4.Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5.Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6.Roller design scientifically, avoid glue fly out when the speed is high.
7.Pressure rollers adopt one side adjustment, convenient and fast.
8.Rocker controls wash roller’s fluctuation, easy cleaning.
9.Counter designs scientifically, easy recording the amount you have been worked.
Technical parameter:
| Model number | Model | MY-1200 | MY-1300 | MY-1500 | MY-1600 | |
| Maximum paper feed size ( mm ) | Max paper size | 1230*850mm | 1320*940mm | 1510*1120mm | 1620*1250mm | |
| Minimum paper feed size( mm ) | Min paper size | 350*450mm | 400*500mm | 400*550mm | 500*550mm | |
| Maximum die cutting size( mm ) | Max die-cutting size | 1210*830mm | 1300*920mm | 1490*1100mm | 1600*1220mm | |
| Minimum mouth size( mm ) | Min size in mouth | 6mm | 6mm | 6mm | 6mm | |
| Maximum die cutting pressure( T ) | Max die cutting pressure | 300N/cm | 300N/cm | 300N/cm | 300N/cm | |
| Machinable paper( mm ) | Cardboard | 200-2000 g/ m | 200-2000 g/ m | 200-2000 g/ m | 200-2000 g/ m | 200-2000 g/ m |
| Corrugated board | 8mm (max thickness) | 8mm (max thickness) | 8mm (max thickness) | 8mm (max thickness) | 8mm (max thickness) | |
| Die cutting accuracy( mm ) | Die cutting precision | 0.1mm | 0.1mm | 0.1mm | 0.1mm | |
| Maximum speed(sheets/hour) | Max die cutting speed | 4500 sheets/h | 4500 sheets/h | 4500 sheets/h | 4500 sheets/h | |
| Maximum stack height of paper feed(mm) |
Max feeding pile height | 1400mm (above the level) |
1400mm
(above the level) |
1400mm (above the level) |
1400mm (above the level) |
|
| Minimum stack height for receiving paper(mm) |
Min delivery pile height | 1200mm
(above the level) |
1250mm
(above the level) |
1250mm (above the level) |
1300mm
(above the level) |
|
| Gross power(KW) | Total power | 11.0kw | 13.5kw | 13.5kw | 15.0kw | |
| Machine weight(T) | Total weight | 13.0 T | 14.5 T | 17.5 T | 20.0 T | |
| Overall dimension | Overall dimension | 4200x2200x2250mm | 4200x2250x2250mm | 4200x2300x2250mm | 5200x2450x2250mm | |
