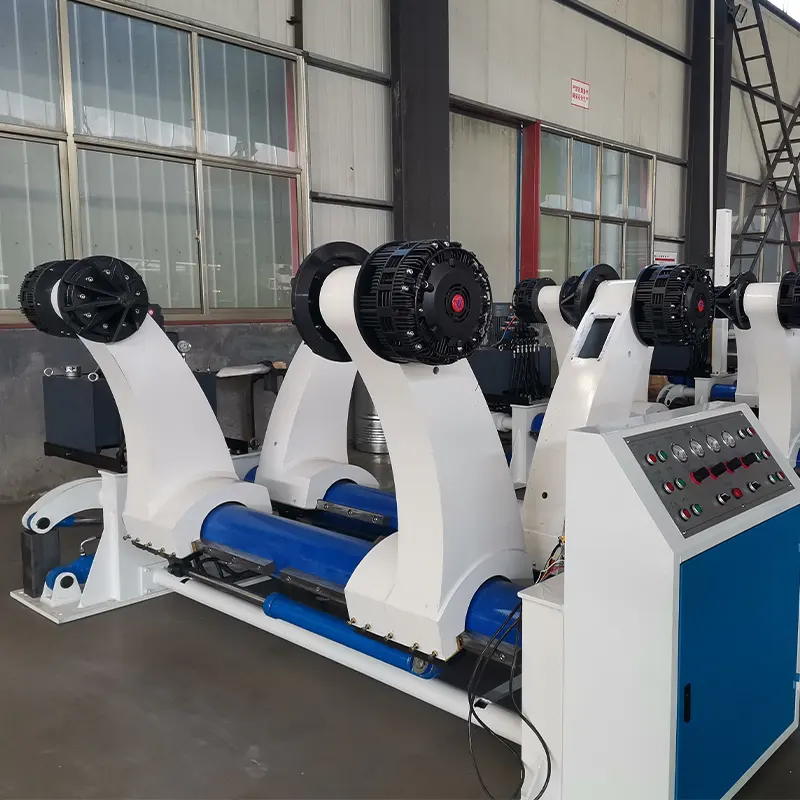

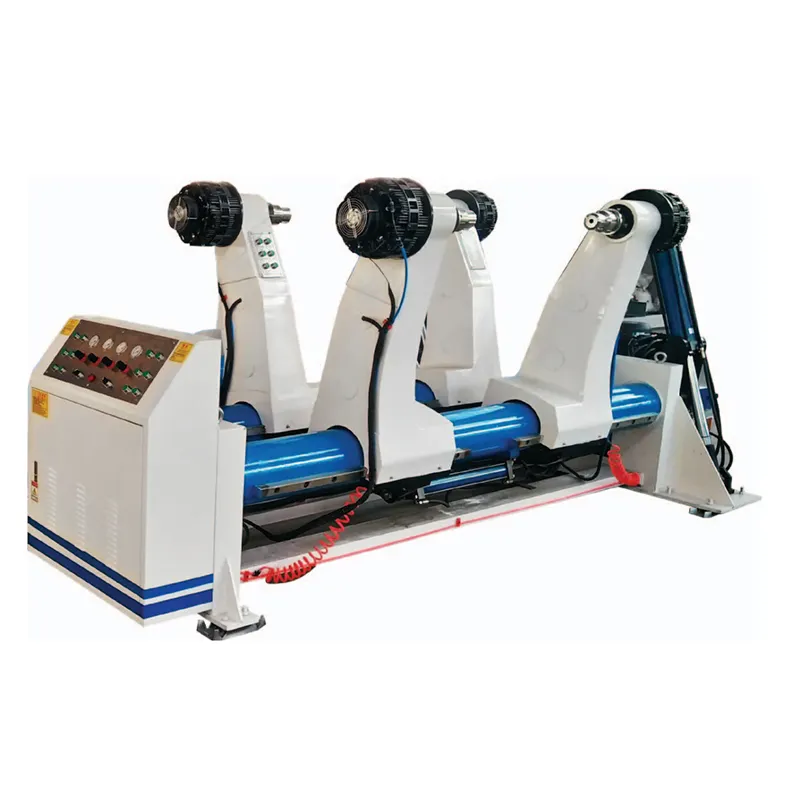

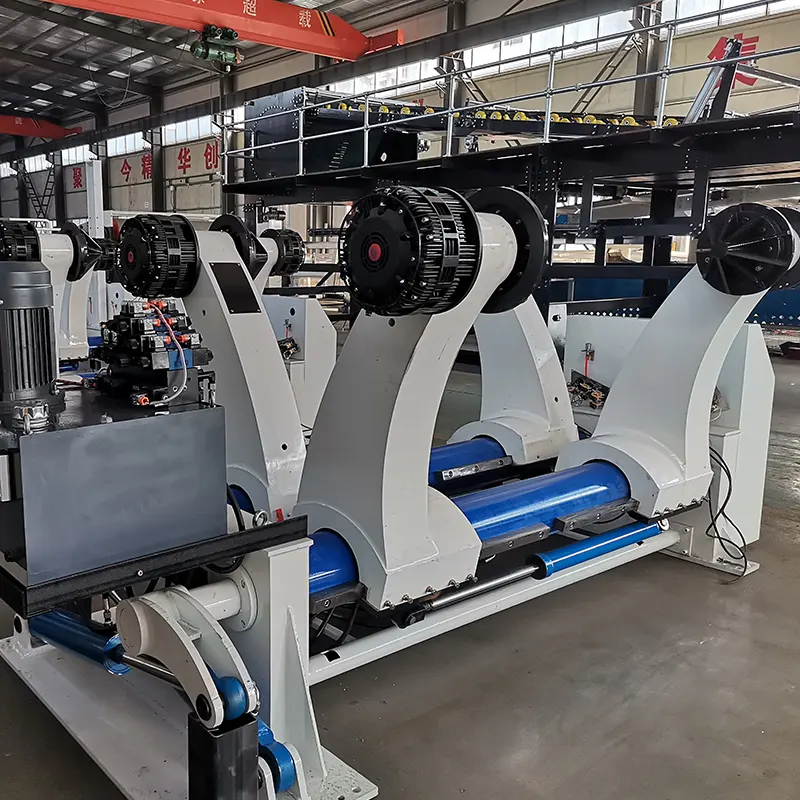

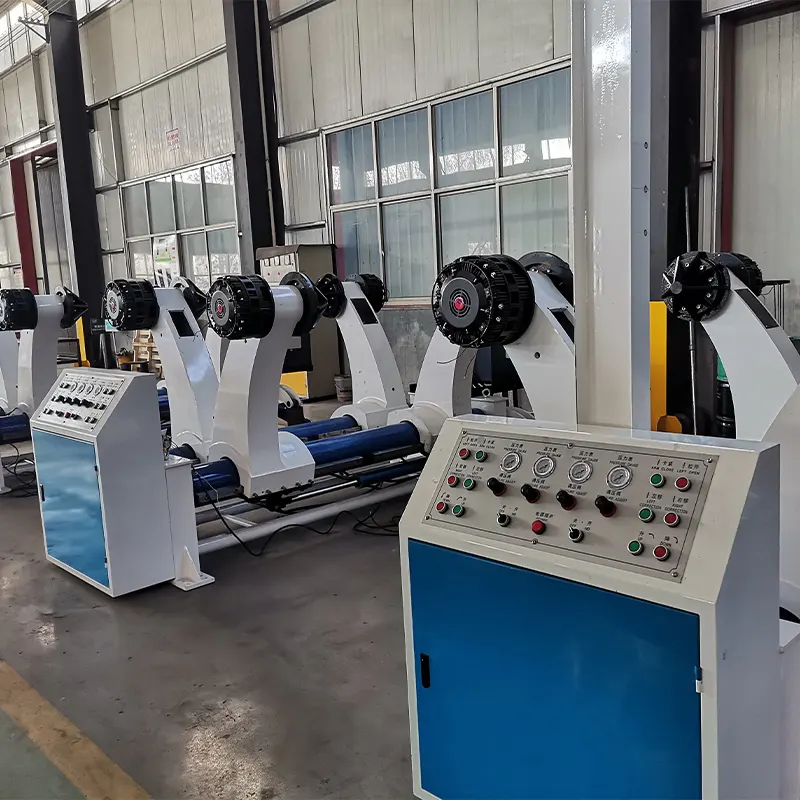

LUM-B Hydraulic shaftless Mill Roll Stand
Structure Features
- Expiry width 800-2200mm,clamp paper diameter: Max:1500mm,Min:350mm
2. Single arm max load weight: 3ton
3. Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments…
1.Expiry width: 800-2200mm, clamp paper diameter: Max: 1500mm, Min:350mm.
2.Max load weight of single arm: 2000kg / 3000kg.
3.Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments.

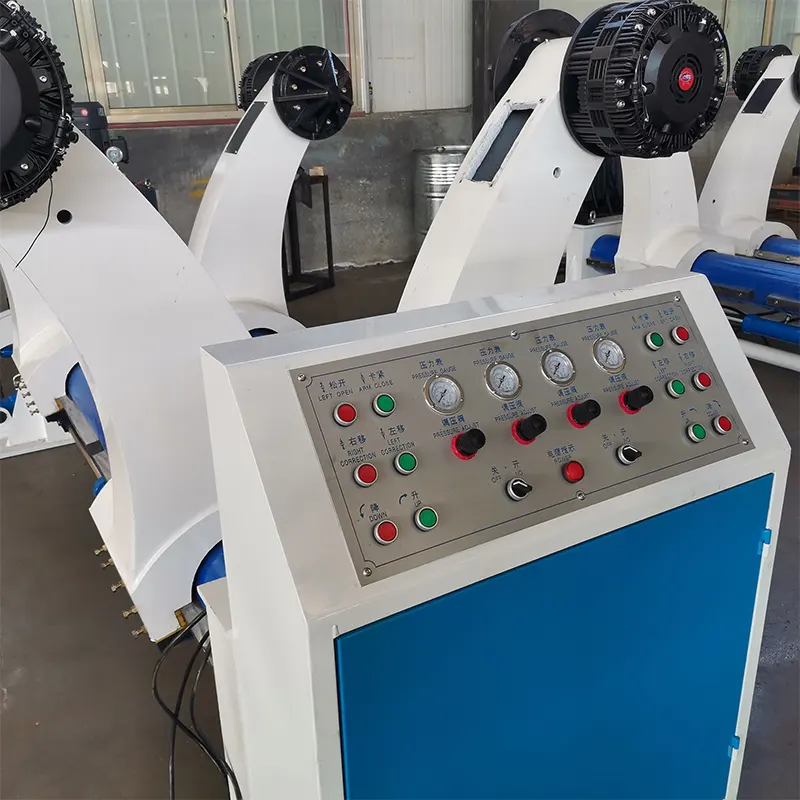

4.Adopts hydraulic drive, can complete base paper lifting, clamping, loosen, move on.
5.Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.
6.Tension control equipped with pneumatic brake, also can connect with automatic paper splicer to achieve quick paper supply.
Technical parameter:
| NO. | Name | Technical parameter ( LUM -B ) | Technical parameter ( LUM -C ) | ||
| 1 | Effective working width | 1400-2800mm | 1400-2800mm | ||
| 2 | Mill roll stand action mode | Full hydraulic action | Full hydraulic action | ||
| 3 | Paper diameter | Max:1500mm Min:350mm | Max:1500mm Min:350mm | ||
| 4 | Max loading weight of single arm | 2000kg | 3000kg | Max: 4000kg | |
| 5 | Main roll diameter | Φ215mm | Φ240mm | Φ270mm | |
| 6 | Hydraulic cylinder operating range (swing) | Φ100mm×460mm | Φ100mm×460mm | ||
| 7 | Hydraulic cylinder diameter (clamping) | Φ63mm×720mm | Φ63mm×720mm | ||
| 8 | Hydraulic station motor power | 4.0kw | 5.2kw | ||
