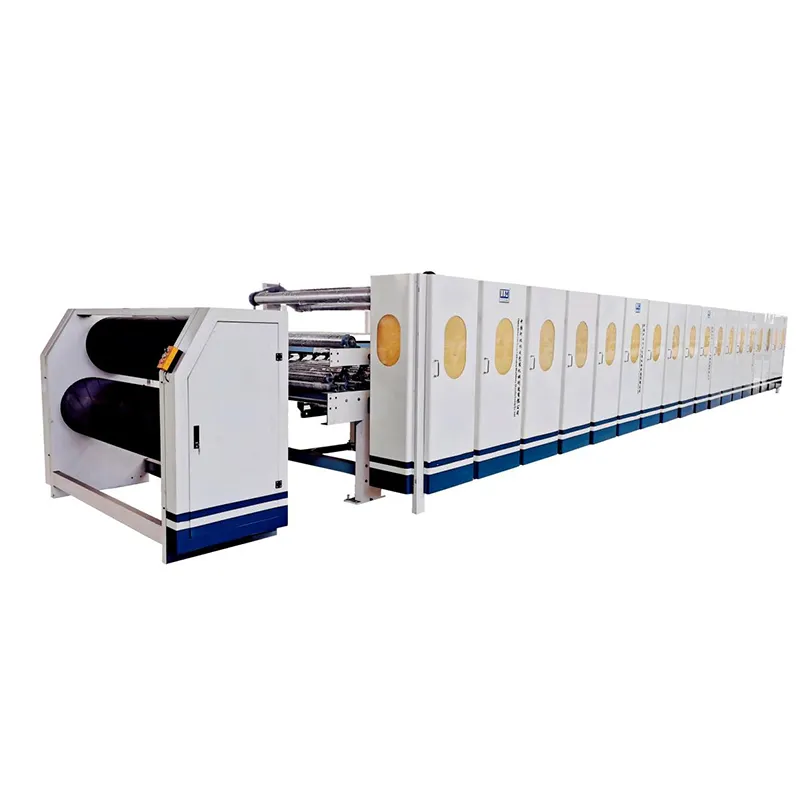

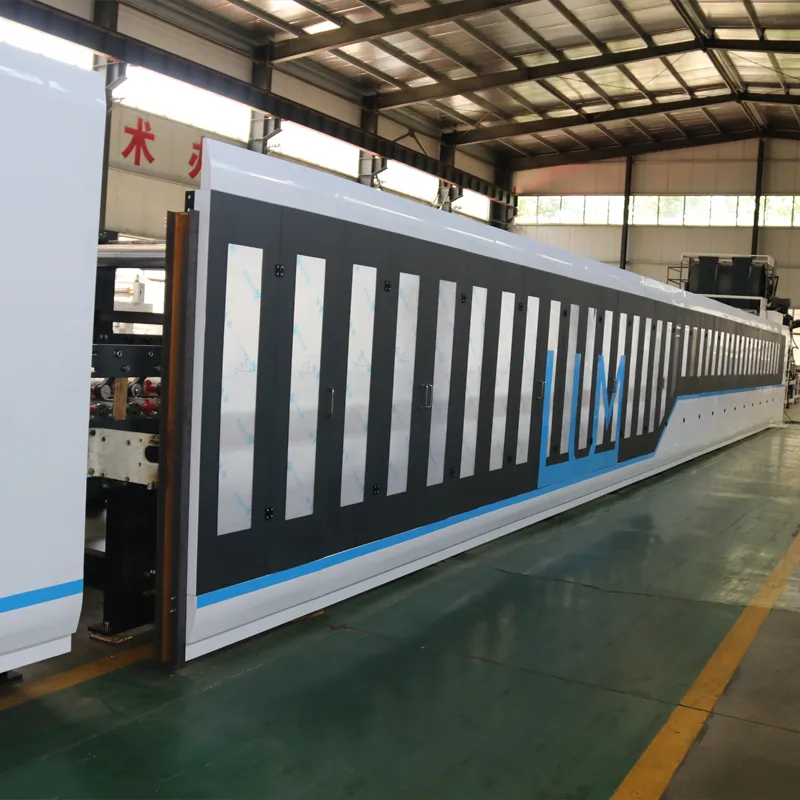

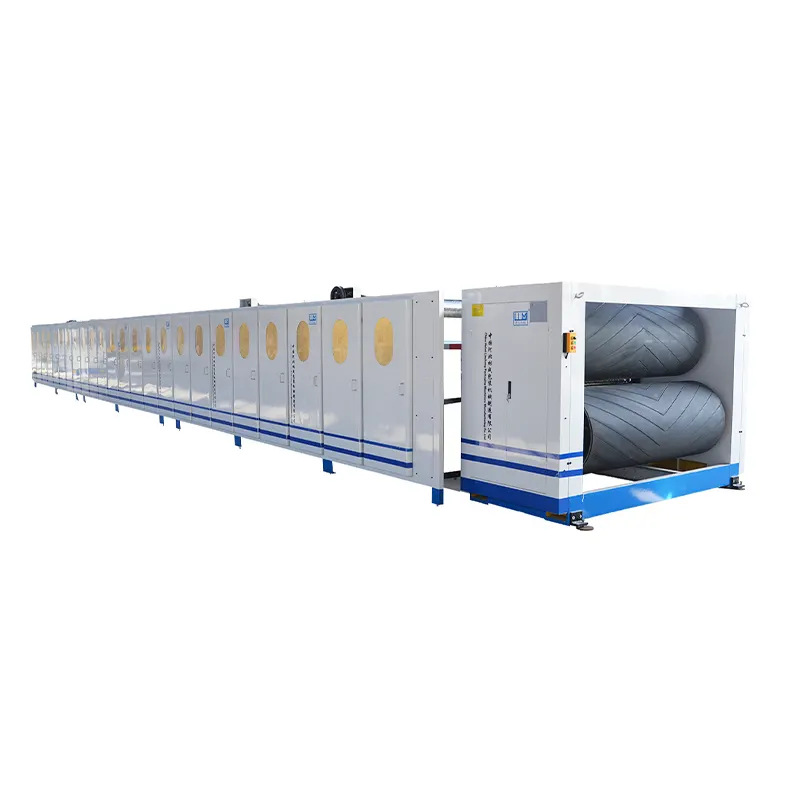

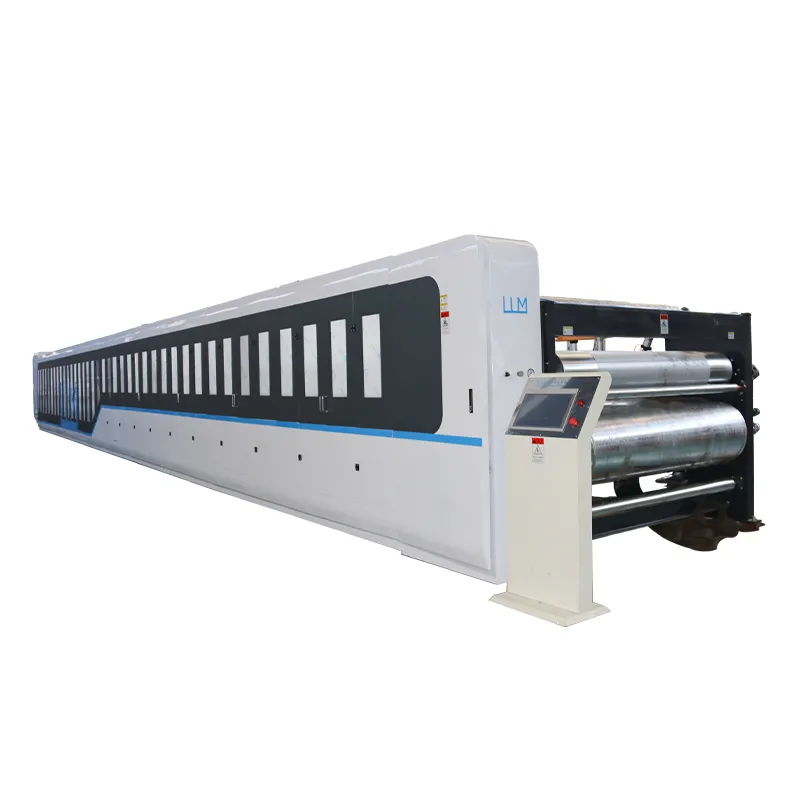

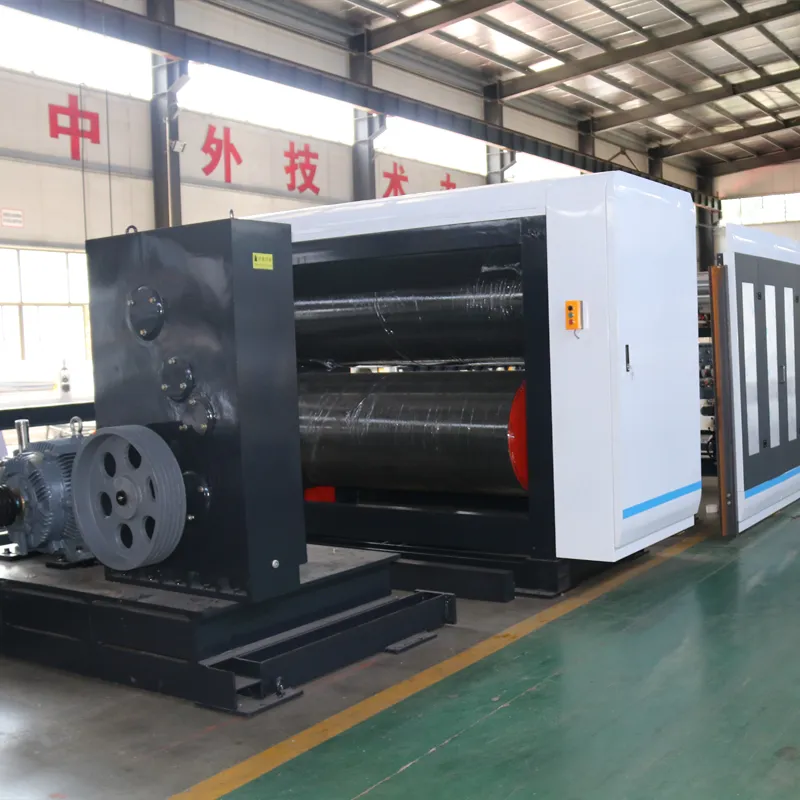

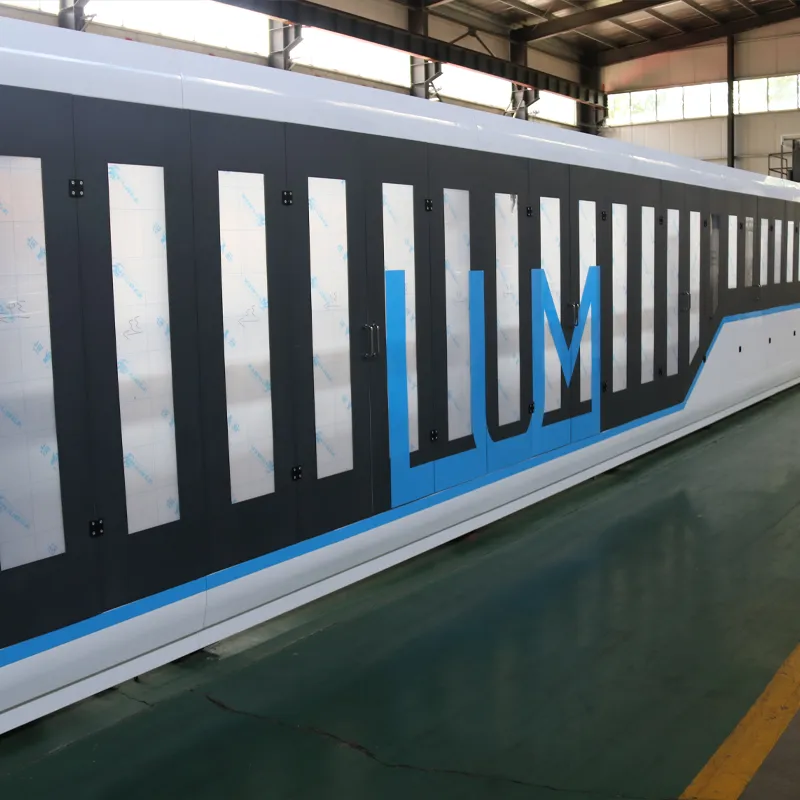

LUM Double Facer Machine

Whole  rack  adopt  high-strength 30# or 40# channel steel,firm structure  and work steadily,middle speed work is better.

Get a Quote
3-2
3-3
3-1
3.13.3
3.13.2

1.Hot plate produced by professional manufacturer,heating plate made by high strength container plate,accords with national safety standards for pressure vessels.600mm wide steel hot plate,inside S -shaped guide airflow structure,improve the utilization of steam.

2.Heating section adopt intensive pressure roller structure or touch press plate structure,to enhance cardboard stick firmly and platen board quality.

3.Heating section roller adopt electric or hydraulic to lift whole frame,safe and reliable.

4.Hot plate temperature control separately,adjustment is according to the line speed.(Or use temperature * Digital display for option.)

5.Separate gear box drive,low noise,using oil immersion sealed gear;(Electromagnetic speed motor or inverter motor drive is optional.)

Technical parameter:

No Name Technical parameter
A Model B Model C Model
1 Effective working width 1400--2800mm 1400--2800mm 1400--2800mm
2 Operating direction According to customer’s require According to customer’s require According to customer’s require
3 Hot plate 600mm wide,hot plates can be 9,11,13,15,17,19,21,23 600mm wide,hot plates can be 9,11,13,15,17,19,21,23 600mm wide,hot plates can be 9,11,13,15,17,19,21,23
4 Main drive roller diameter 500 mm 740 mm 650mm
5 Main drive motor power 30-55kw 55kw 75.0kw
6 Drive method Electric or hydraulic lift( is optional) Hydraulic lift Pneumatic lift
7 Whole  rack  adopt  high-strength 30# or 40# channel steel,firm structure  and work steadily,middle speed work is better.
8 Hot plate produced by professional manufacturer,heating plate made by high strength container plate,accords with national safety standards for pressure vessels.600mm wide steel hot plate,inside S -shaped guide airflow structure,improve the utilization of steam.
9 Heating section adopt intensive pressure roller structure or touch press plate structure,to enhance cardboard stick firmly and platen board quality.
10 Heating section roller adopt electric or hydraulic to lift whole frame,safe and reliable.
11 Hot plate temperature control separately,adjustment is according to the line speed.(Or use temperature * Digital display for option.)
12 Separate gear box drive,low noise,using oil immersion sealed gear;(Electromagnetic speed motor or inverter motor drive is optional.)
