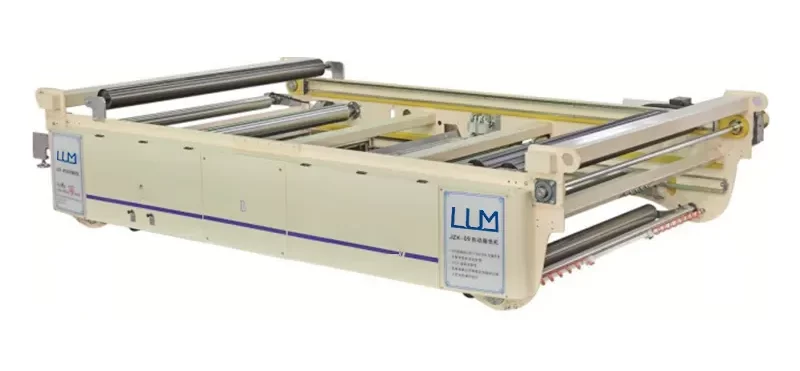

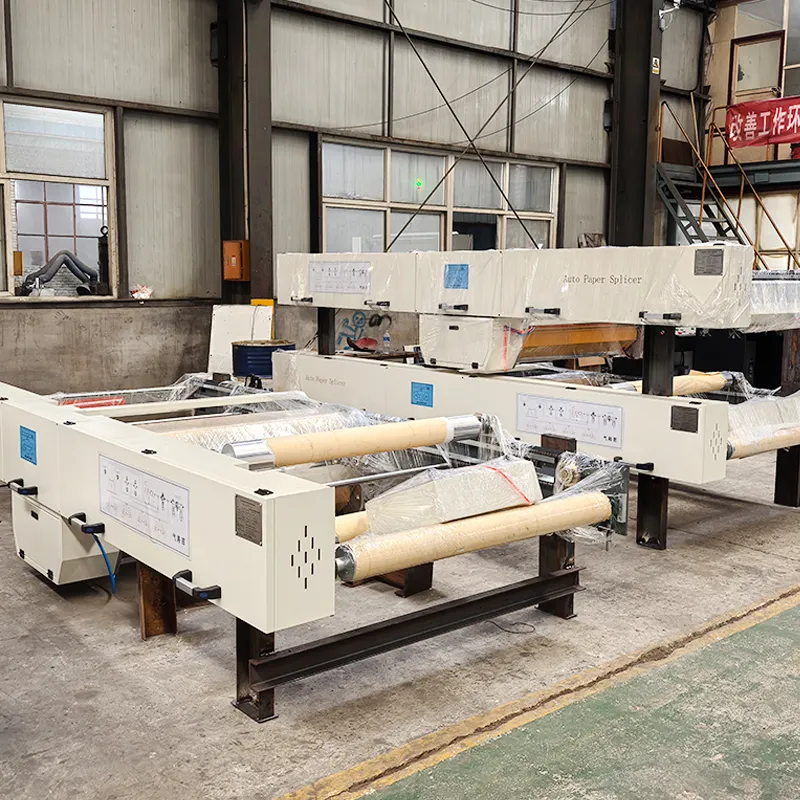

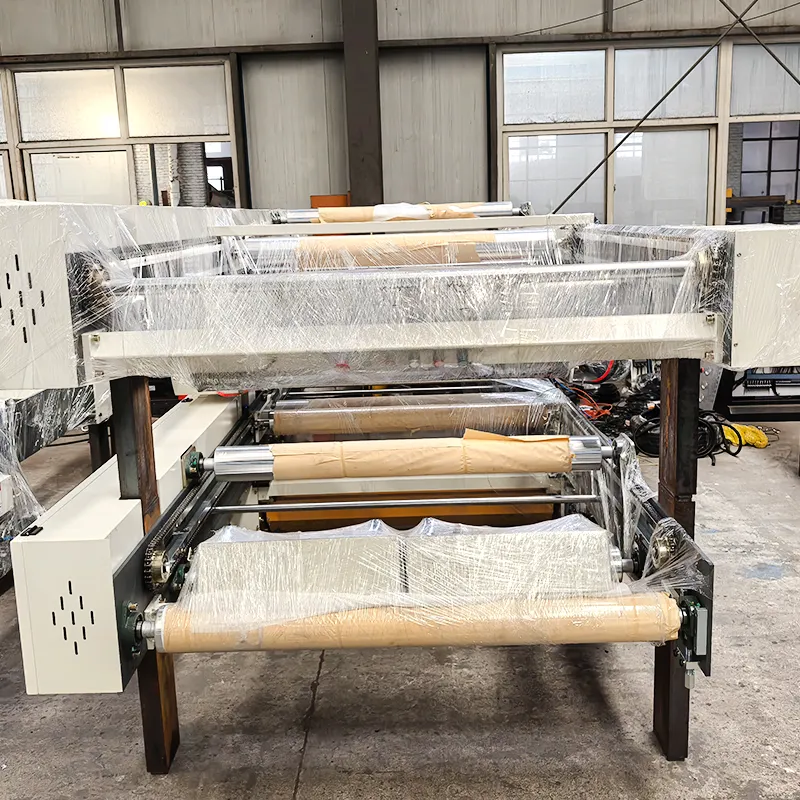

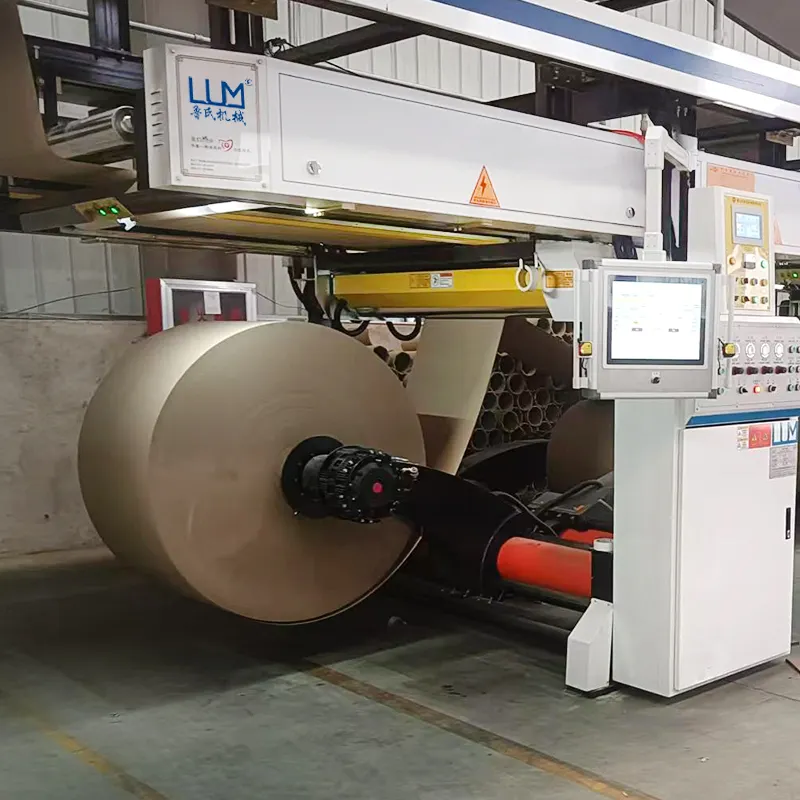

FY-Splicer-Eco 150 Auto splicer

Application range:

1) Suitable for base paper/from 50g to 500g/m2.

2) Has the ability to splicing/ rewinding paper with low gram…

1.Easy to connect with existing production lines.

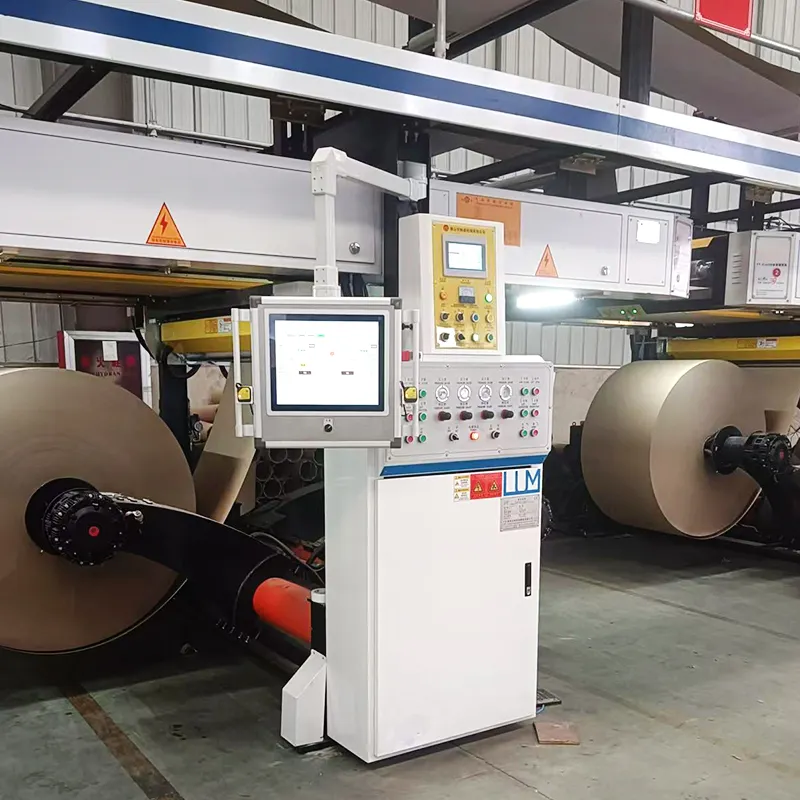

2. Equipped with PLC touch screen, it can diagnose, maintain, control, and monitor the remaining meters and weight through the touch screen

Cooperate with the management of the raw paper warehouse and be able to perform remote communication processing. The operation interface is friendly, and the control panel responds quickly

3.+With a plywood style paper preparation method; Easy to maintain, with sturdy paper preparation and low power consumption. Automatic paper feeder (economy type)

4. Easy to operate and quick to prepare paper

5. Preparing for paper reception is simple and easy

6.Changing the paper roll only takes 1.5 minutes

7.Imported accessories are used for maintenance, with low failure rate and simple maintenance. Automatic paper feeder (economical)

Technical parameter:

Paper gram(g/㎡) Speed of surface paper (m/min) Speed of liner paper (m/min)
70~90 110 80
90~110 120 90
110~130 130 100
≧130 150 120
